2-Bed Room with a Medical Rail Socket at each Bed

The example shown in the Illustration below is a 2-bed room with peripherals for the toilet and shower.
Each bed is equipped with a medical rail socket (which is usually installed in the medical rail above the
bed) and a handset.
17 July 2017 / Ver. PF3

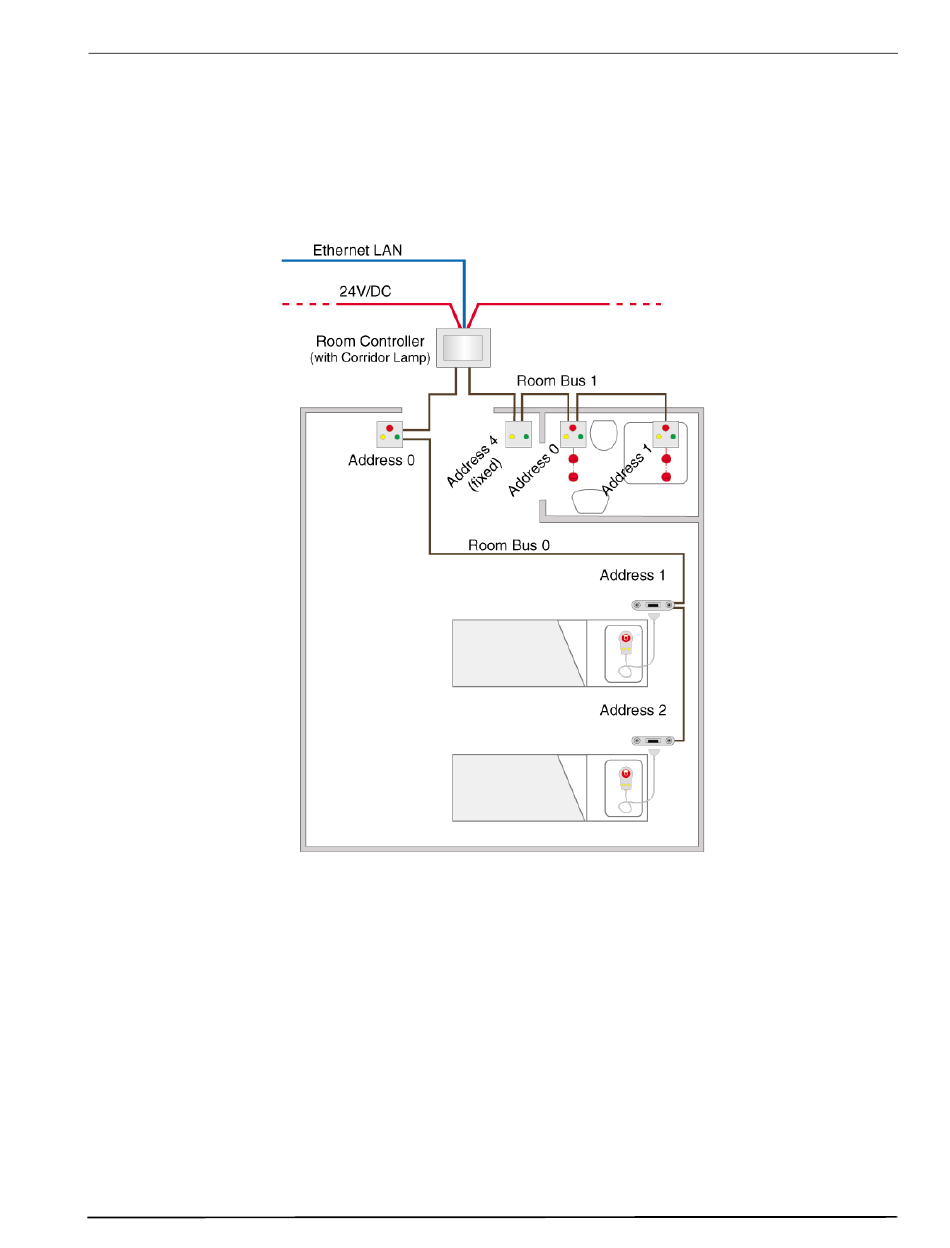

Figure 177. 2-Bed Room with medical rail sockets
