Speech Module To The Left Of The Switch Module - ASCOM teleCARE IP Installation Manual

Installation Guide
teleCARE IP
For a two-module combination with the speech module mounted to the left side of the switch module
(viewed from the front) the R190193 cable 8.0in (200mm) is required.
For a three-module combination the R190192 cable (length 7.0in (170mm) and the R190193 cable
length 8.0in (200mm) are both required
17 July 2017 / Ver. PF3

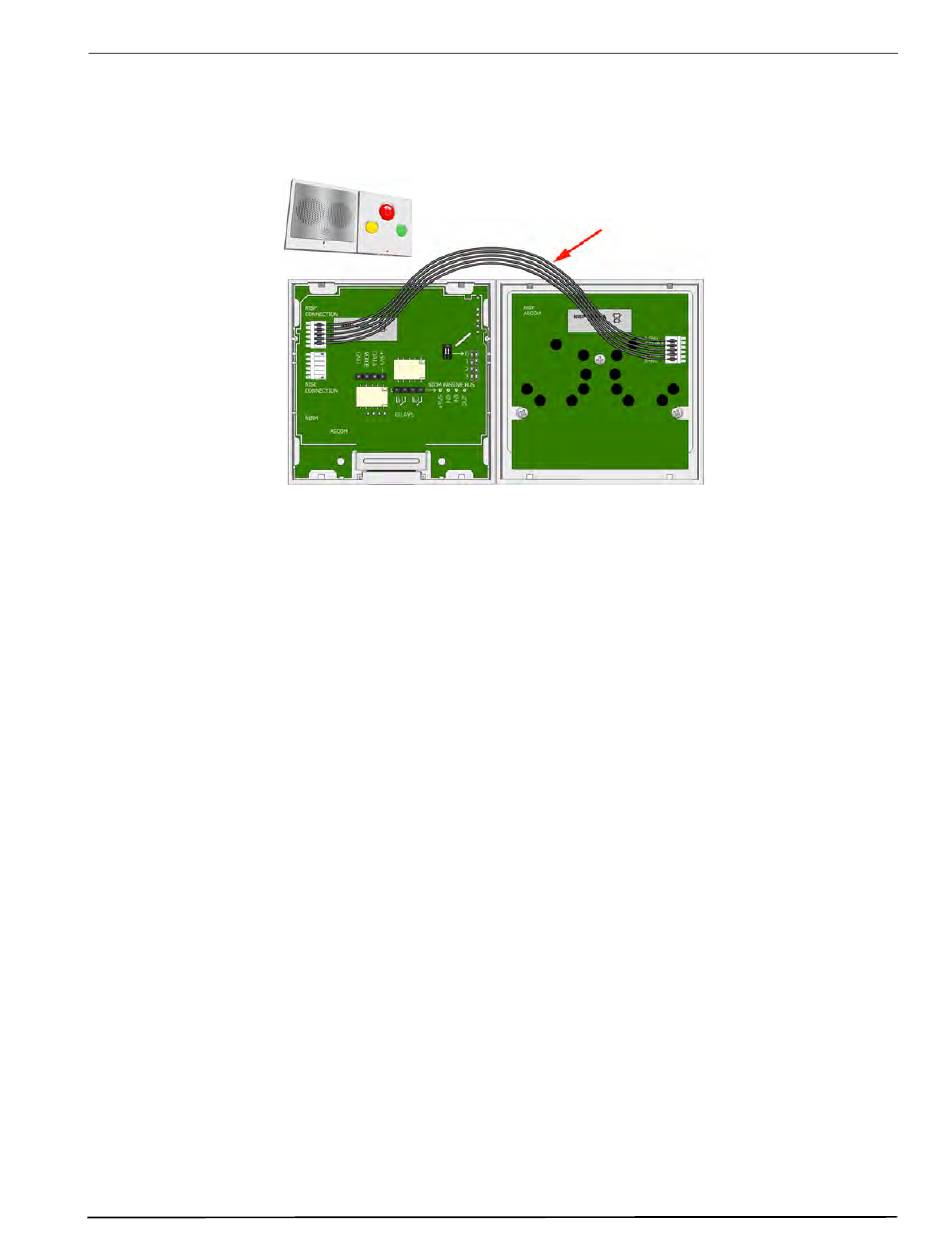

Figure 137. Speech module to the left of the switch module
Cable R190193
Length 8.0 in.
(200mm)
TD 93021US
