Installation Guide
teleCARE IP
Screws with a diameter of 1/8 in. (3.8mm) should be used to mount the NILF to the door post or the wall.
Two suitably sized holes should be drilled at the marked spots. In a wooden door post holes should be
drilled that are slightly smaller than the size of the screws that are used. When mounting the NILF on a
wall, holes should be drilled that accept a wall plug suitable for using screws with a diameter of 1/8 in.
(3.8mm).
17 July 2017 / Ver. PF3
DRAFT

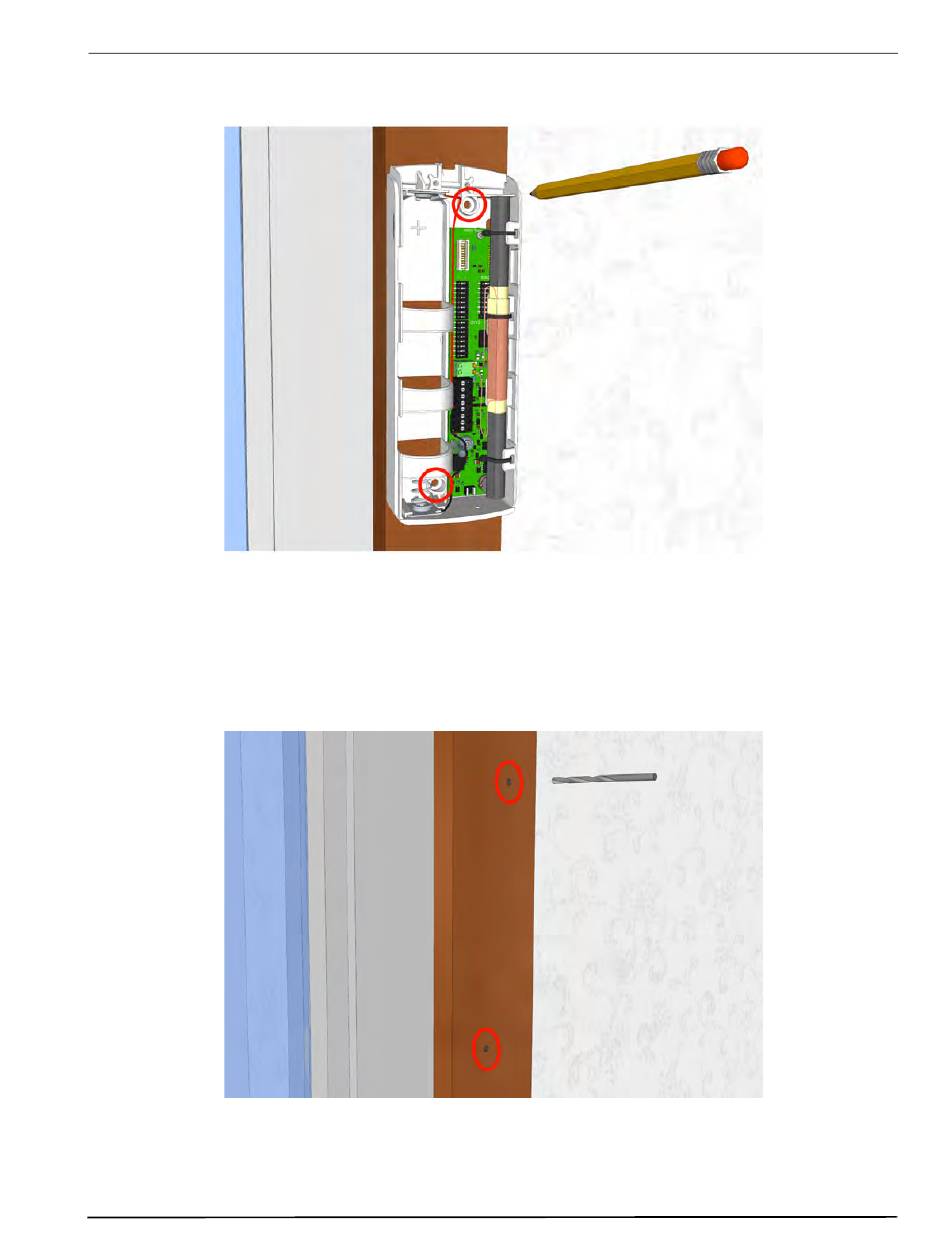

Figure 230. Mark the holes for drilling
Figure 231. Drill the two holes with the proper drill
TD 93021US
175
