Next connect the NIRD room display to the NISP and plug in the room bus connector.

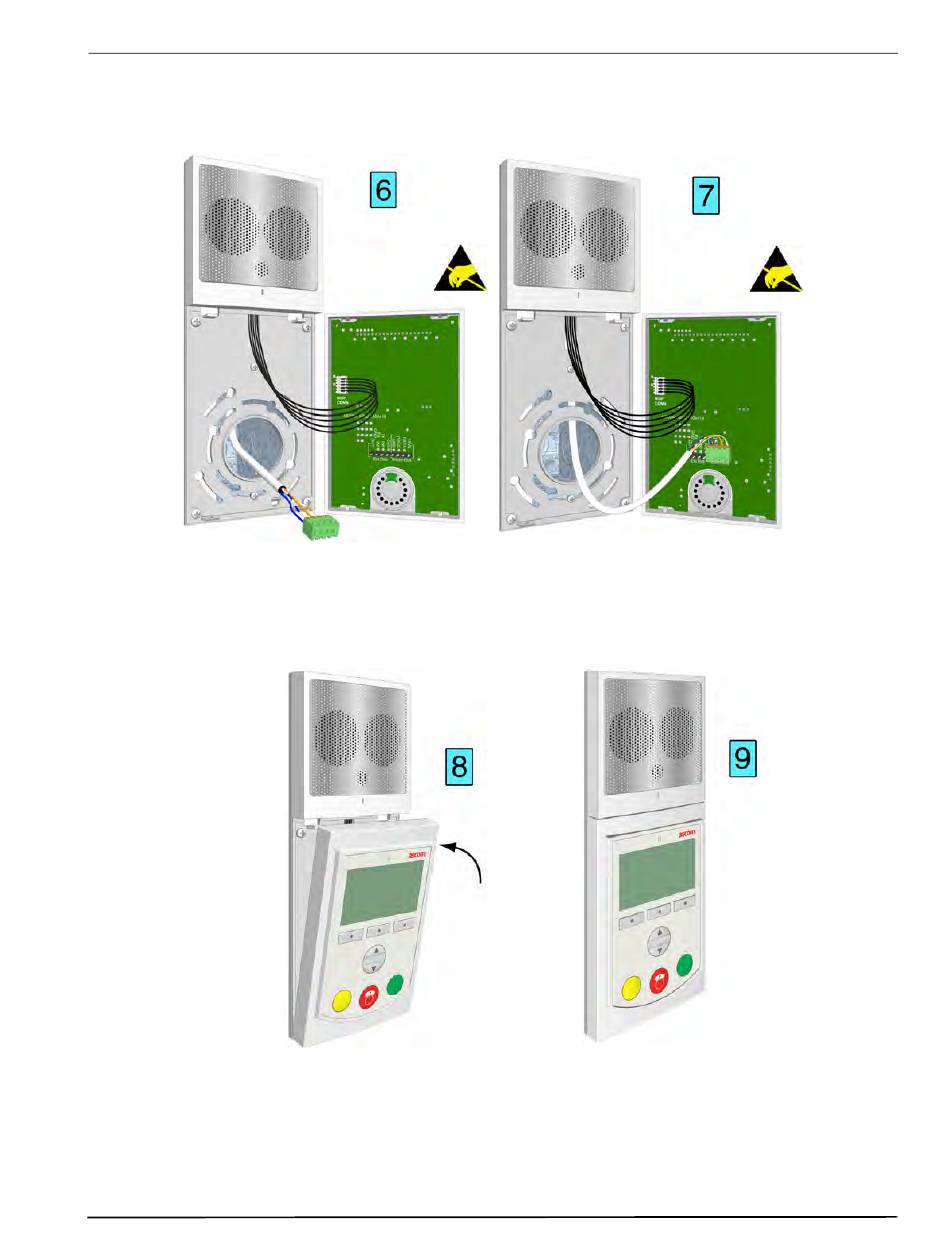

Figure 148. Connecting the NIRD to the NISP and connecting the room bus
Refer to
6.16.1, Room Bus Electrical Connections on page 104
Next, snap fit the room display to the backplate.
17 July 2017 / Ver. PF3
Figure 149. Mounting the NIRD on the backplate
TD 93021US
for full details.
