Installation Guide
teleCARE IP
6.3
Backplates and Surface Mounting Spacer
The teleCARE IP switch modules are designed to be mounted on flat walls using the teleCARE backplate.
The backplate is designed to be mounted over flush fitted back boxes and an array of holes in the
backplate allows it to be mounted over various international back boxes.
As an alternative to the backplate a spacer is available for surface mounting the teleCARE switch
modules, with or without a back box. The spacer can be mounted directly on to a flat wall surface or
alternatively, the holes in the base of the spacer allows it to be mounted over various international back
boxes.
Note: The duty selector can only be mounted on a surface mounting spacer, not on a switch
module backplate.
6.3.1 Mounting the Backplate on a Back box
To mount the backplate on a back box, first remove the mounting screws from the back box.
Important: Use only the plastic back boxes listed in Table 8.
Single
Dual
17 July 2017 / Ver. PF3

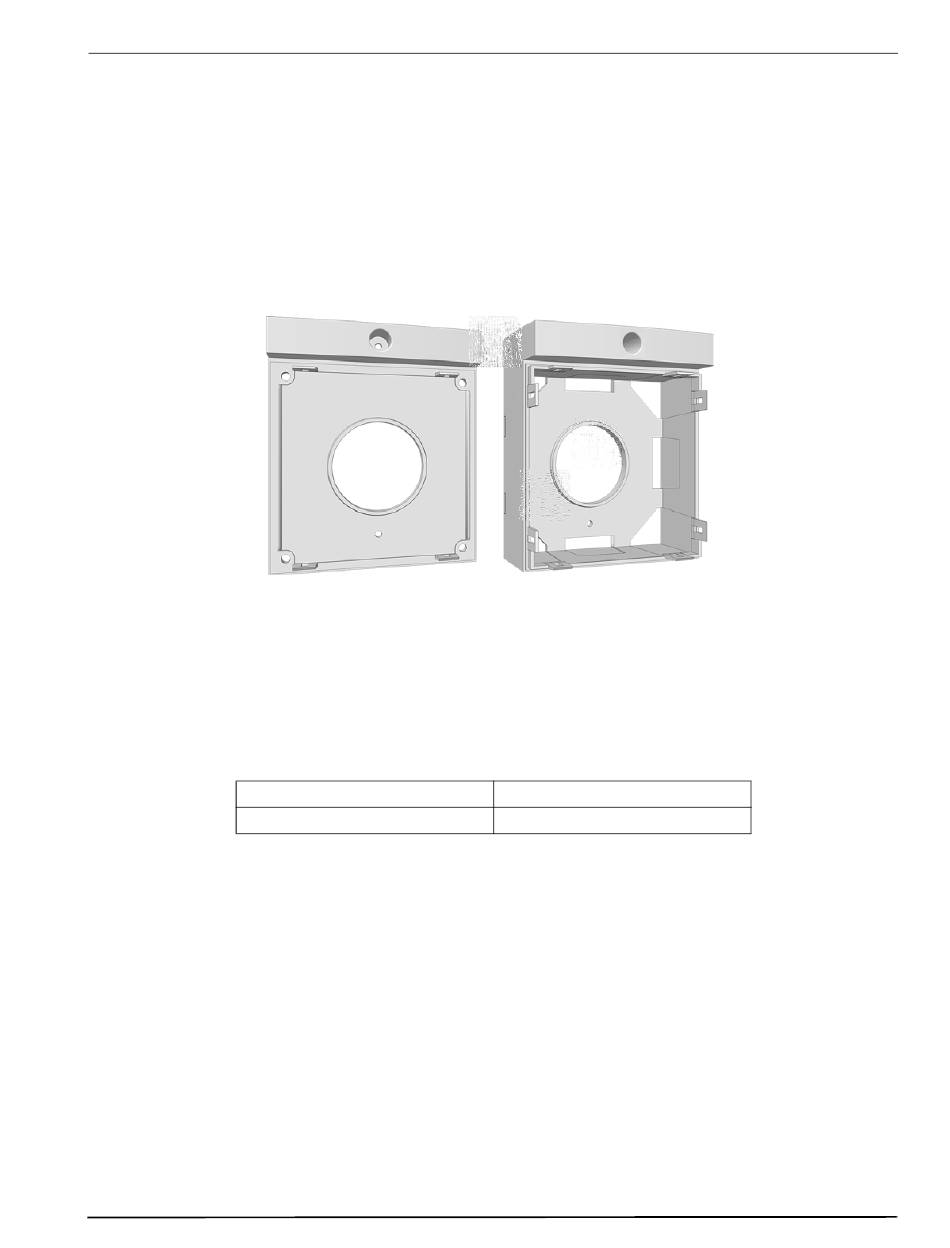

Figure 67. Backplate and surface mounting spacer
Table 8. Plastic Back Box Manufacturer/Model/Part Number
Raco 7887RAC or equivalent
Raco 7488RAC or equivalent
TD 93021US
57
