Installation Guide
teleCARE IP
5.8
Corridor Lamp (NICL2)
The room controller (NIRC3) can support four corridor lamps. Each Corridor Lamp is connected to one of
the room buses of the Room Controller and it always has the fixed address 5.
The Corridor Lamp consists of a back box, a printed circuit module, a cover plate, and translucent dome
cover that can accept up to four LED boards, as shown in the following illustration:
17 July 2017 / Ver. PF3

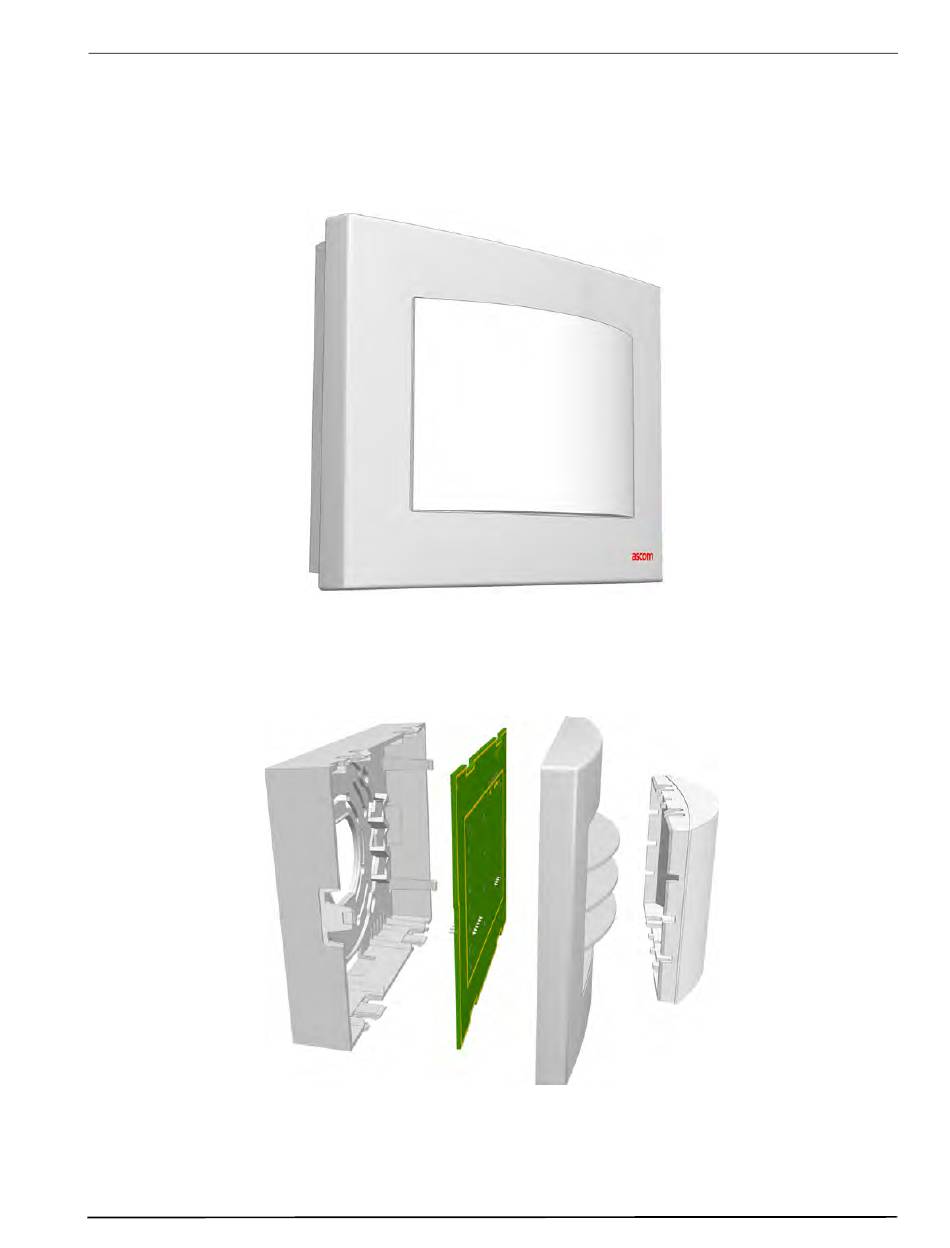

Figure 52. The teleCARE IP corridor lamp
Figure 53. Corridor lamp (NICL2) parts
TD 93021US
43
