Installation Guide
teleCARE IP

5.5.2 2-Pole Connector Terminal (NICT-2BA)

The 2-pole connector terminal is used for connecting the 24Vdc power supply when a separate power
supply is used. It is also used for the 24Vdc power supply from the room controller to the corridor lamp.
The 2-pole terminal connector has two screw terminals. Each terminal accepts one wire (up to wire size
15 AWG (1.4mm) or two wires (each up to 18 AWG (1mm).
Note: The recommended maximum wire size for the teleCARE power supply is 18 AWG
(1mm).

Preparing the Wires for the 2-pole Connector Terminal

To connect the wires first pull the wires through the housing leaving a length of 6in (150mm) free, as
described in section
inch (6.5mm) of the insulation from the end of each wire which is to be connected.
Figure 35. Stripping the wires for insertion in the connection point
After stripping the wire insert the wire in the appropriate opening of the connector terminal and tighten
the terminal screw.
Note: If stranded wire is used for the power supply cabling then a suitable ferrule (barrel
outer diameter > 0.04in (1mm) should be used over the wire cores to ensure a reliable
connection.
2-Pole Connector Terminal with Looped Wiring
In cases where the power supply cable loops from room controller to room controller, the incoming and
outgoing wires are connected in the same screw terminal, as shown in the following illustration:
17 July 2017 / Ver. PF3

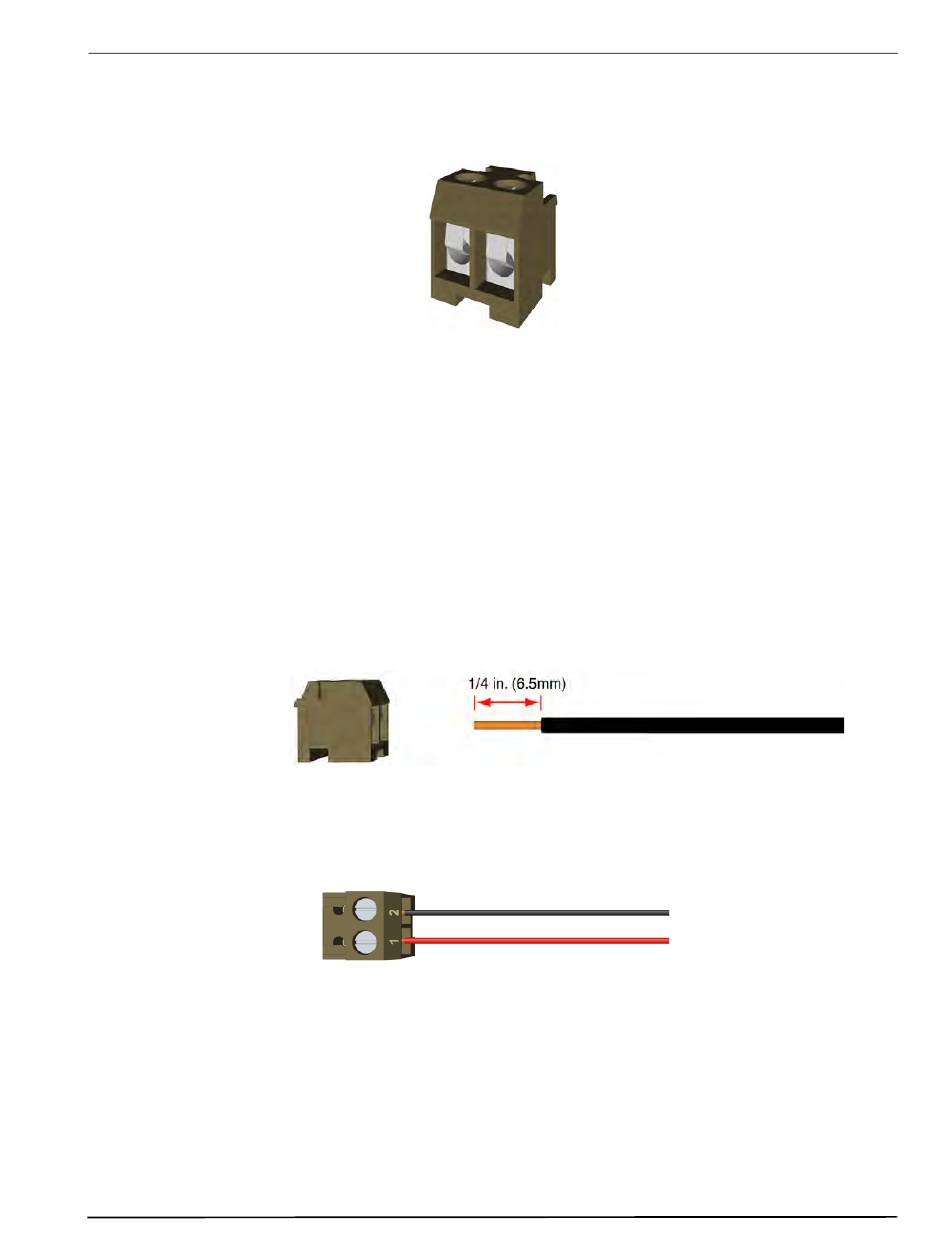

Figure 34. 2-pole connector terminal
5.3, Preparing the Room Bus and Power Cables on page
0Vdc (GND)
+Vdc in / +Vdc out
Figure 36. 2-pole connector terminal wiring
TD 93021US
25. Then strip 0.25
