6.11 Toilet Cancel Module - Passive (NITC-XXP)

The Passive Toilet Cancel Module is intended for use in the teleCARE IP system, in areas such as
bathrooms and toilets. It must be connected to the passive bus of a door side module or a room display
module.
IMPORTANT: Together with the passive toilet cancel module a passive pull cord module
which contains the line break detection circuitry must be installed. The passive pull cord
module must be connected at the end of the passive bus.
The Passive Toilet Cancel Module requires a single backplate which must be ordered separately. The
backplate enables this switch module to be mounted over different types of back boxes. Alternatively, a
spacer with installation kit is available for surface mounting the switch module.
6.11.1 Passive Toilet Cancel Module (Passive) Electrical Connections
This toilet cancel module is a "passive peripheral" therefore it must be connected to the passive bus of
the linked door side module by the 4-pole passive bus connector (see
17 July 2017 / Ver. PF3

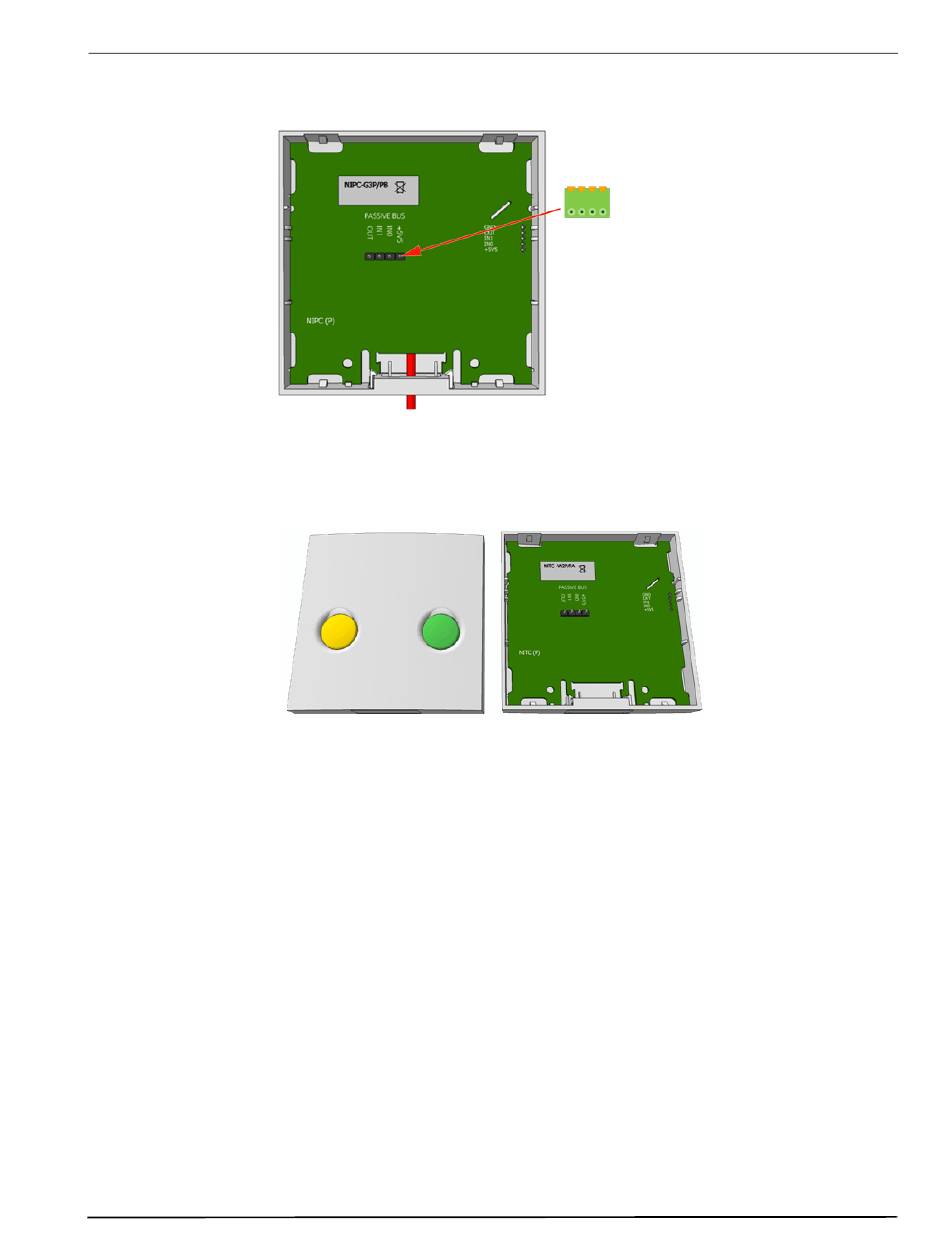

Figure 108. Passive pull cord module electrical connections
Figure 109. Passive toilet cancel module
4-Pole
Connector
for the
Passive Bus
6.4.1, 4-Pole Connector Terminal
