Installation Guide
teleCARE IP
Remove the battery from the circuit board by sliding it in the direction of the arrow. Place the new battery
with the positive"+" terminal facing upwards and slide it into place.
17 July 2017 / Ver. PF3
DRAFT

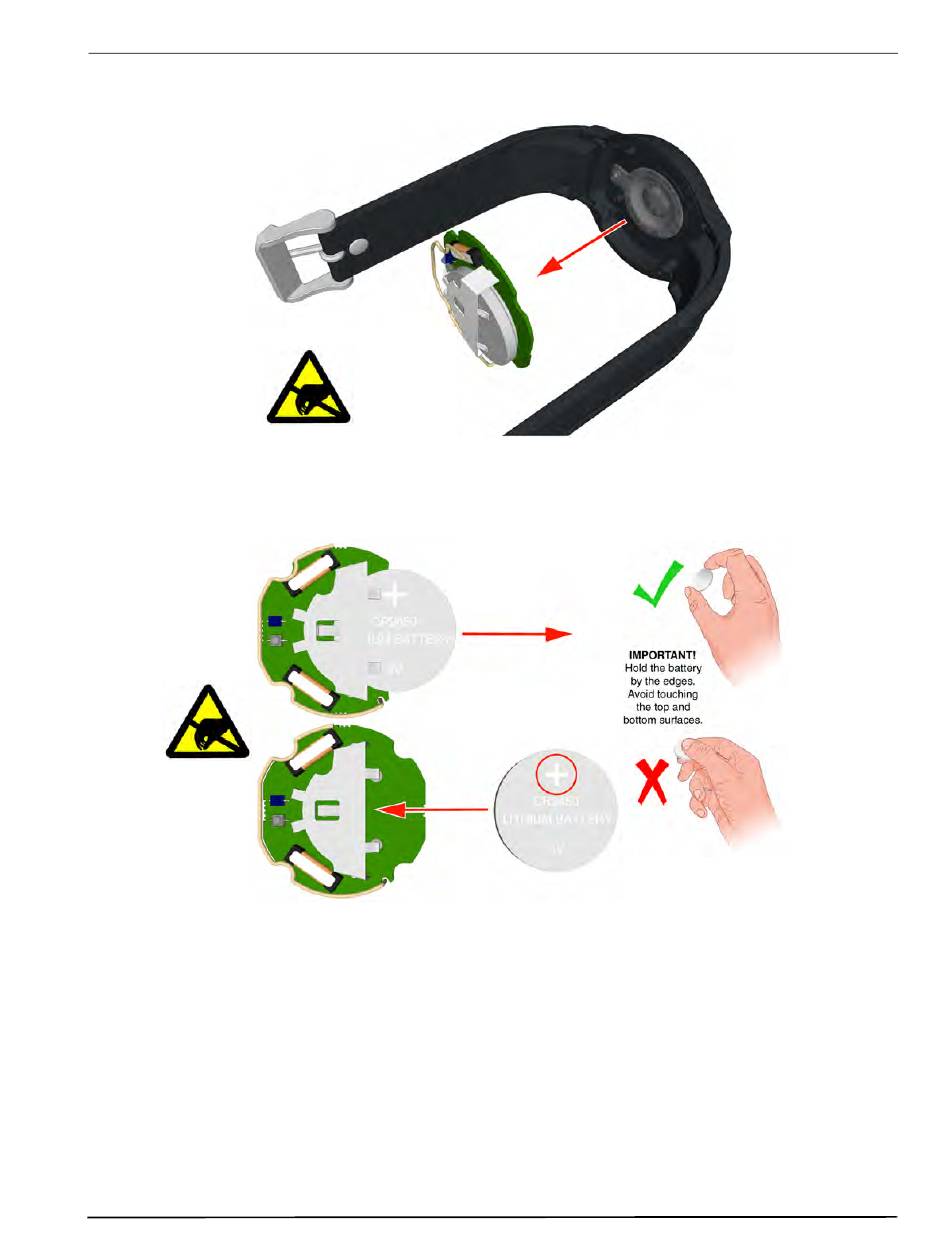

Figure 210. Remove the circuit board
Figure 211. Removing the old and placing the new battery
TD 93021US
160
