Installation Guide
teleCARE IP
8.7.11 NUWIR Wireless PIR Module
The motion sensor or PIR (passive infrared) sensor (NUWIR) is used to detect resident movement. For
example the NUWIR can be used in the toilet, to indicate that a resident is in the toilet. Software will
determine when to alert the caregivers. The NUWIR is battery operated with a battery lifetime of > 3
years.
The NUWIR can be used with the automated check-in functionality to automatically perform a resident
check-in based on the residents movement.
NUWIR Components
17 July 2017 / Ver. PF3
DRAFT

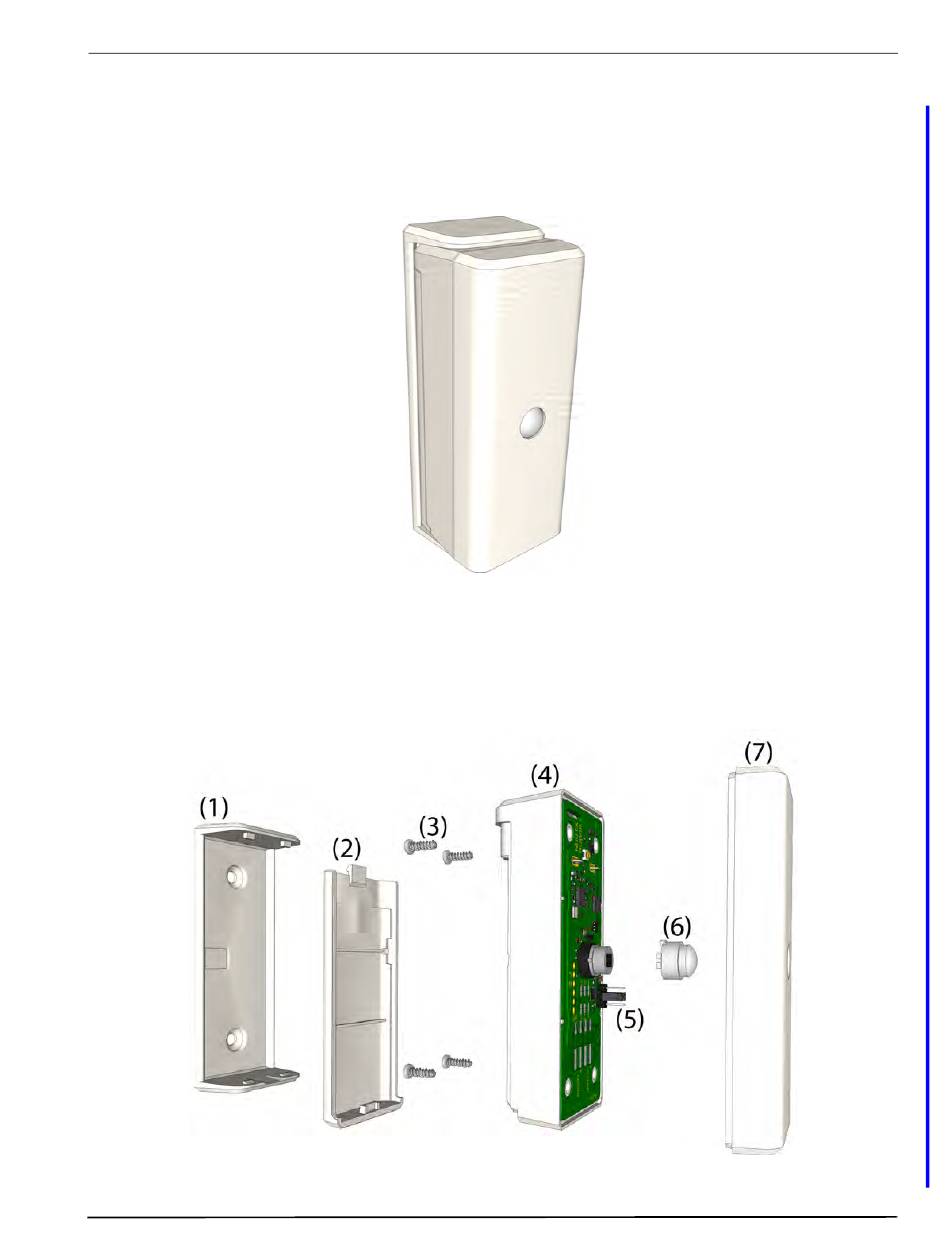

Figure 217. NUWIR PIR (Passive Infra-Red) sensor
Figure 218. NUWIR exploded view
TD 93021US
166
