5.9.3 NISM2 Power Supply

Connect the 24V power supply to the NISM2 at the "12-24V 1A" connector, as show in the following
illustration:
IMPORTANT: For UL 2560 installations, the NISM2 can only be connected to the systems
external 24Vdc power supply (see
power!

5.9.4 Setting the type of Power Supply in the NISM Advanced Settings

After connecting the external power supply to the NISM select the appropriate type of power supply in
the NISM Advanced Configuration of the teleCARE IP System Manager.
17 July 2017 / Ver. PF3
External Power

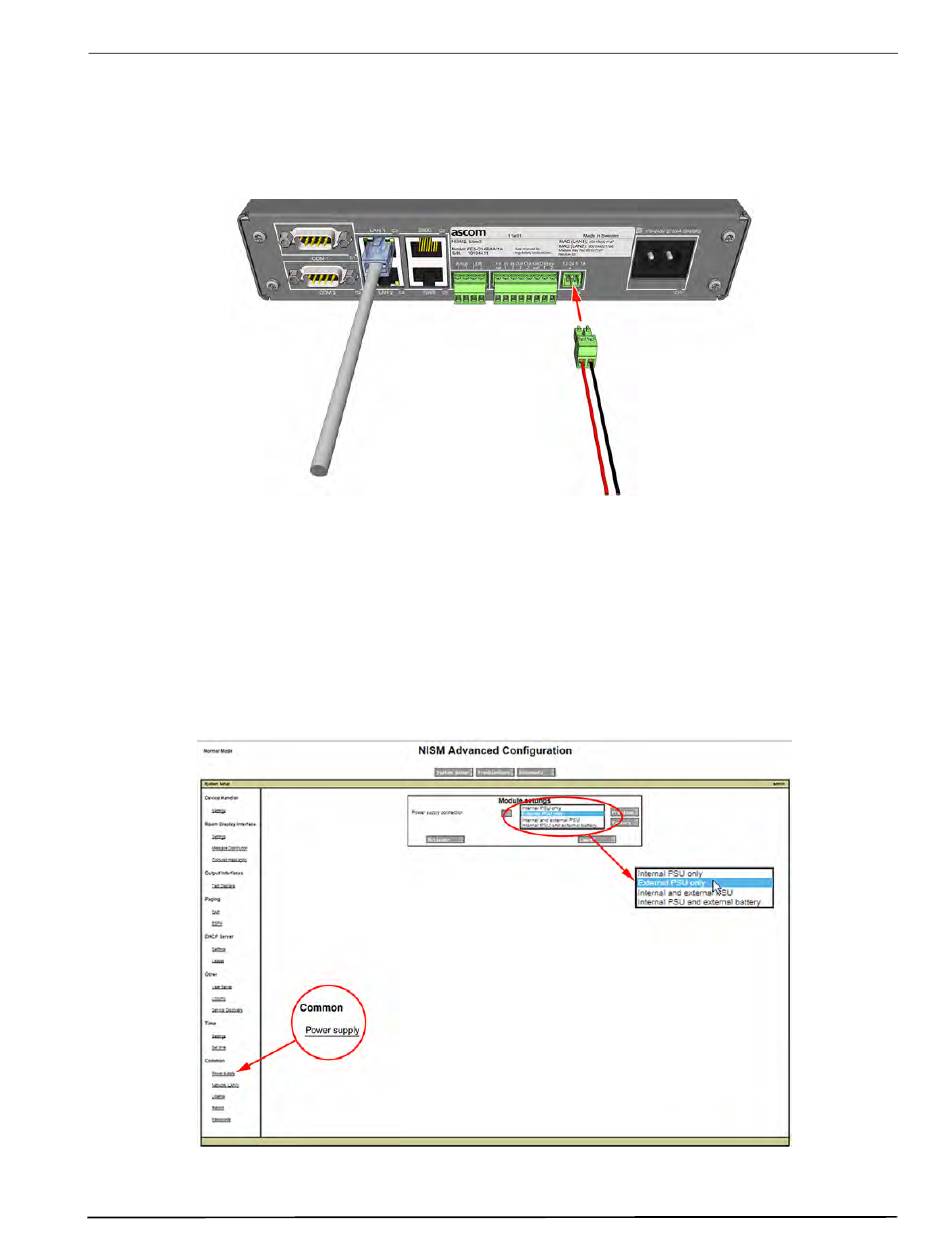

Figure 70. Connecting the 24Vdc power supply
"System Power" on page
Figure 71. NISM power supply connection settings
24Vdc
Input
10). Do not connect to mains
