Installation Guide
teleCARE IP

5.6.3 Connecting Multiple Room Buses

The IP room controller supports four room buses and each has a 4-pole connection terminal which is
wired as described in section
the room buses are shown in section
Use the Wire
Holding Clips
17 July 2017 / Ver. PF3

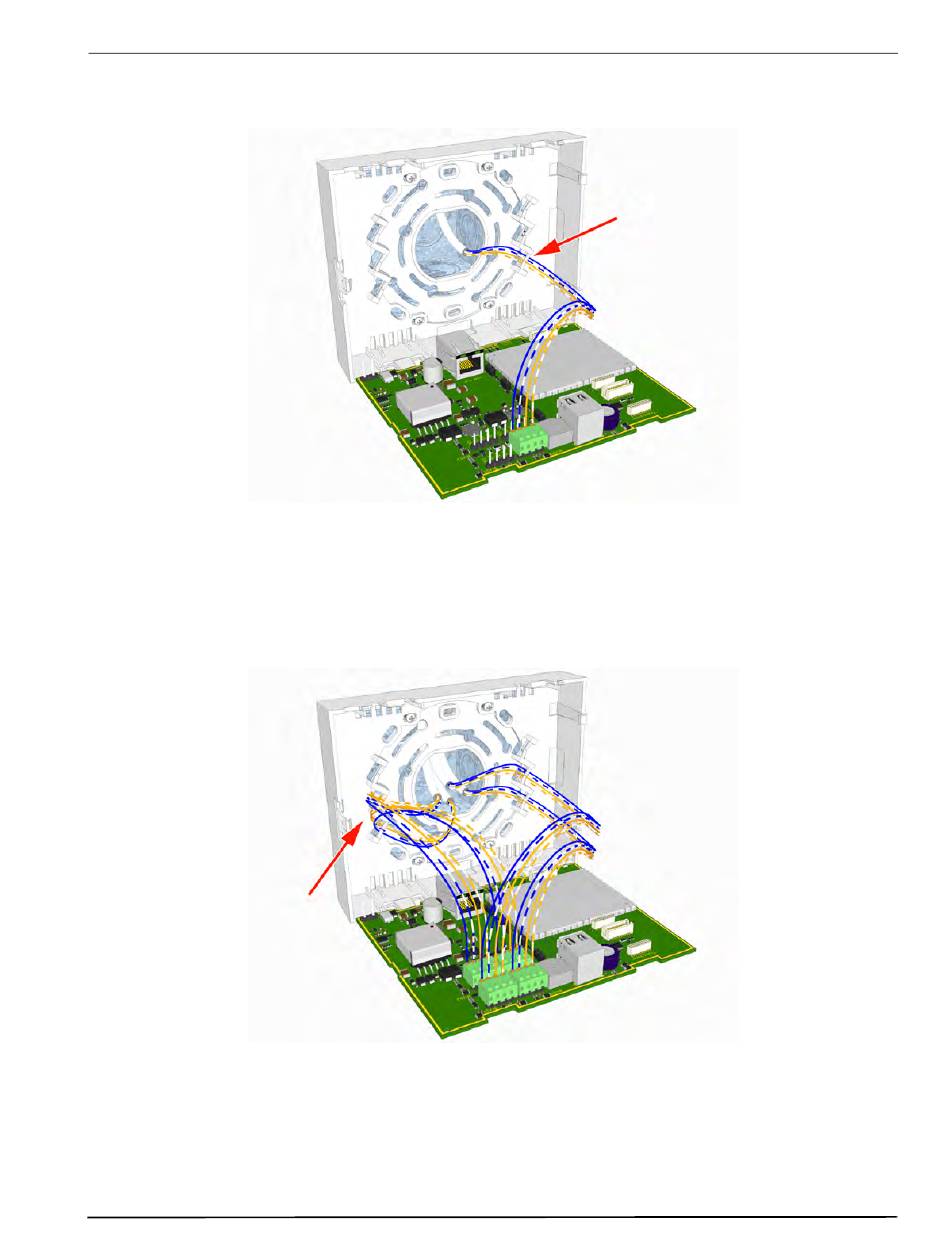

Figure 39. Connecting a room bus to the NIRC3
5.5.1 on page
5.3.2 on page 26.
Figure 40. Connecting multiple room buses to the NIRC3
Use the Wire
Holding Clip
31. The connection points on the room controller PCB for
TD 93021US
36
