Installation Guide
teleCARE IP
5.6.4 Connecting LAN Cable
The LAN cable has an RJ45 plug which connects to the socket on the room controller printed circuit board
shown in section
the room controller housing. It should be plugged directly into the RJ45 connector on the printed circuit
board with enough cable to avoid straining the LAN connection.
5.6.5 Fully Wired IP Room Controller
The following illustration shows how the room controller (NIRC3) should look with all wiring connected
when external power is used:
17 July 2017 / Ver. PF3
The LAN cable should not be guided through the wiring clips inside
5.3.2 on page 26.

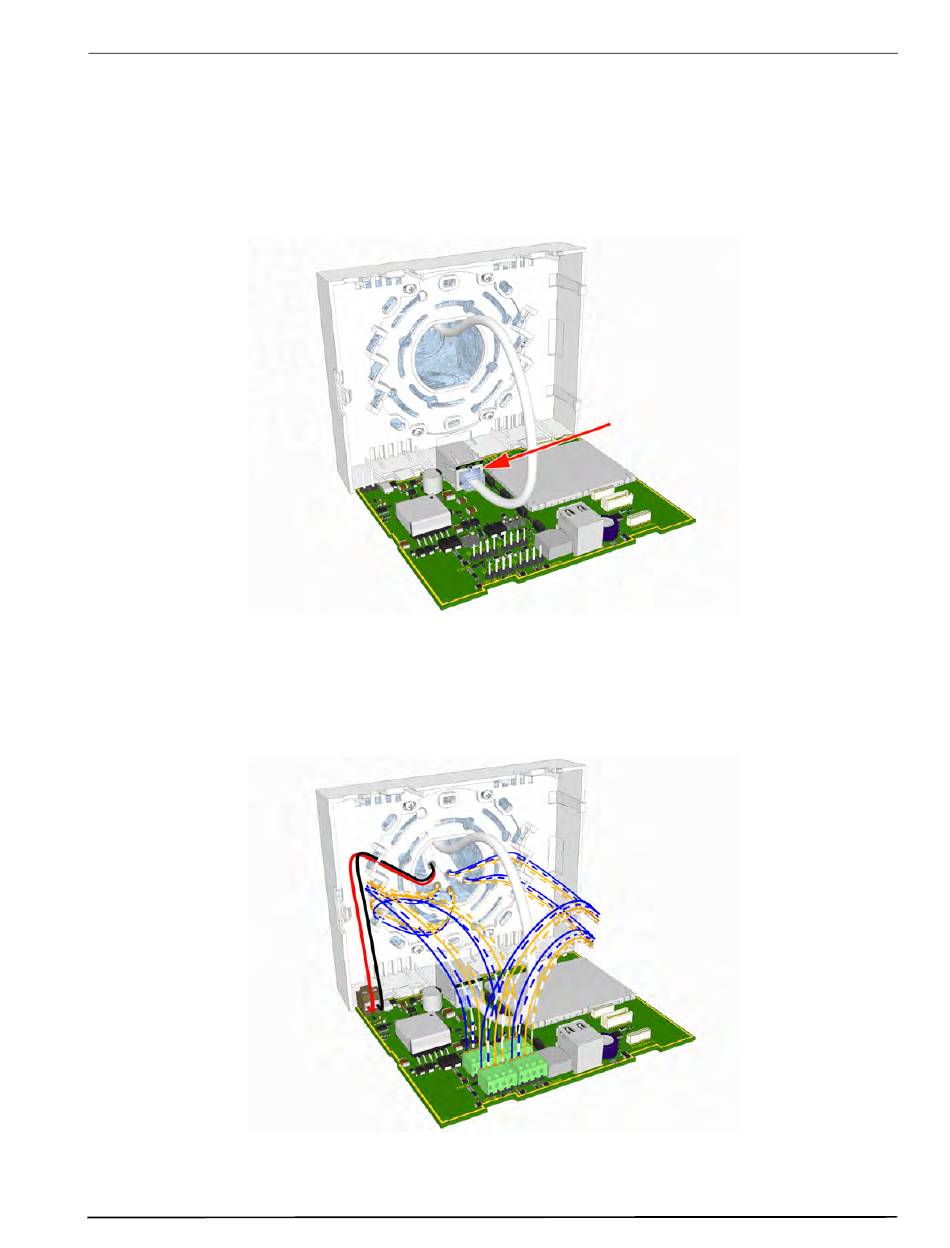

Figure 41. Connecting the LAN cable to the NIRC3
Figure 42. Fully Wired room controller - NIRC3
RJ45 LAN
Connector
(Do not use
the wire
holding clips)
TD 93021US
37
