8.7.4 NUWBM3 Wireless Active Bedside Module

The wireless bedside module (NUWBM3) is a wall mounted switch module. It has three customizable
buttons with LEDs, a white plastic body and includes a spacer for surface mounting. It comes with an
Ascom SafeConnect socket used for the connection of the bedside handset.
Connection" on page 153

NUWBM3 Electrical Connections

(1) Power connector - For connecting the batteries or a an optional 5 VDC Class II power
adapter (CE, UL approved)
17 July 2017 / Ver. PF3
DRAFT

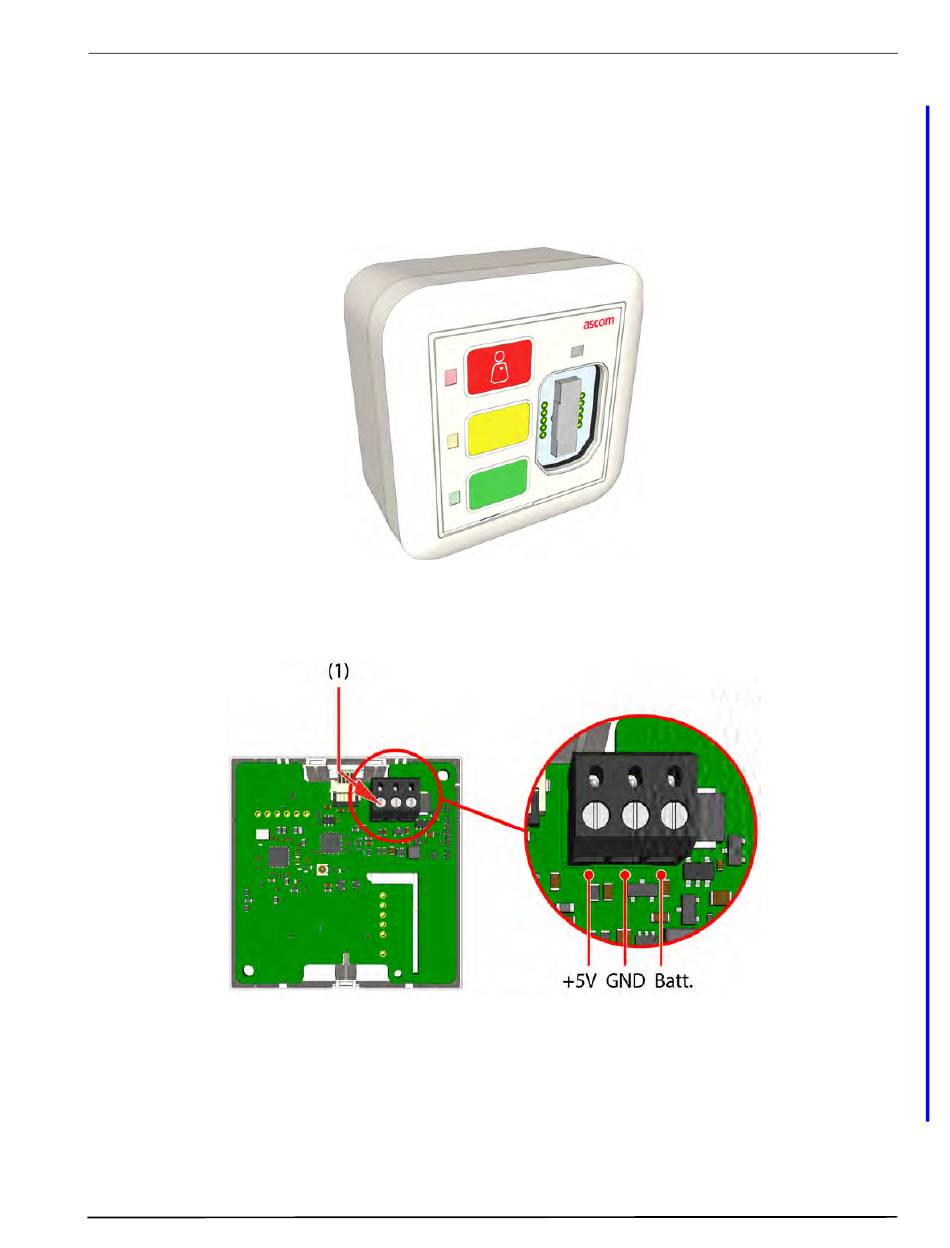

Figure 191. NUWBM3
Figure 192. NUWBM3 electrical connections
TD 93021US
