Nicb-Kit; Connection Board Kit Nicb-Aaa; Product Label On The Connection Board; Product Label On The Nicb-Aaa - ASCOM teleCARE IP Installation Manual

Installation Guide
teleCARE IP
Ensure that the electrical power to the equipment is switched off before connecting the
Connection Board to any of the listed switch modules.
The area in which the teleCARE equipment is to be installed must be clean, dry and
weatherproof.
The NICB must be mounted in the back box onto which the switch modules are mounted.
7.4

NICB-kit

The NICB is part of a kit. NICB-kit order number is NICB-AAA. The NICB-kit contains the
following parts:
• Connection Board (NICB)
• Cross Cable (R190193)
• 4-Pole connector (NICT4-AA)
The cross cable and the Connection Board are already connected and enclosed in a heat
shrink wrap.
Figure 157. Product label on the Connection Board.
17 July 2017 / Ver. PF3
Peripherals

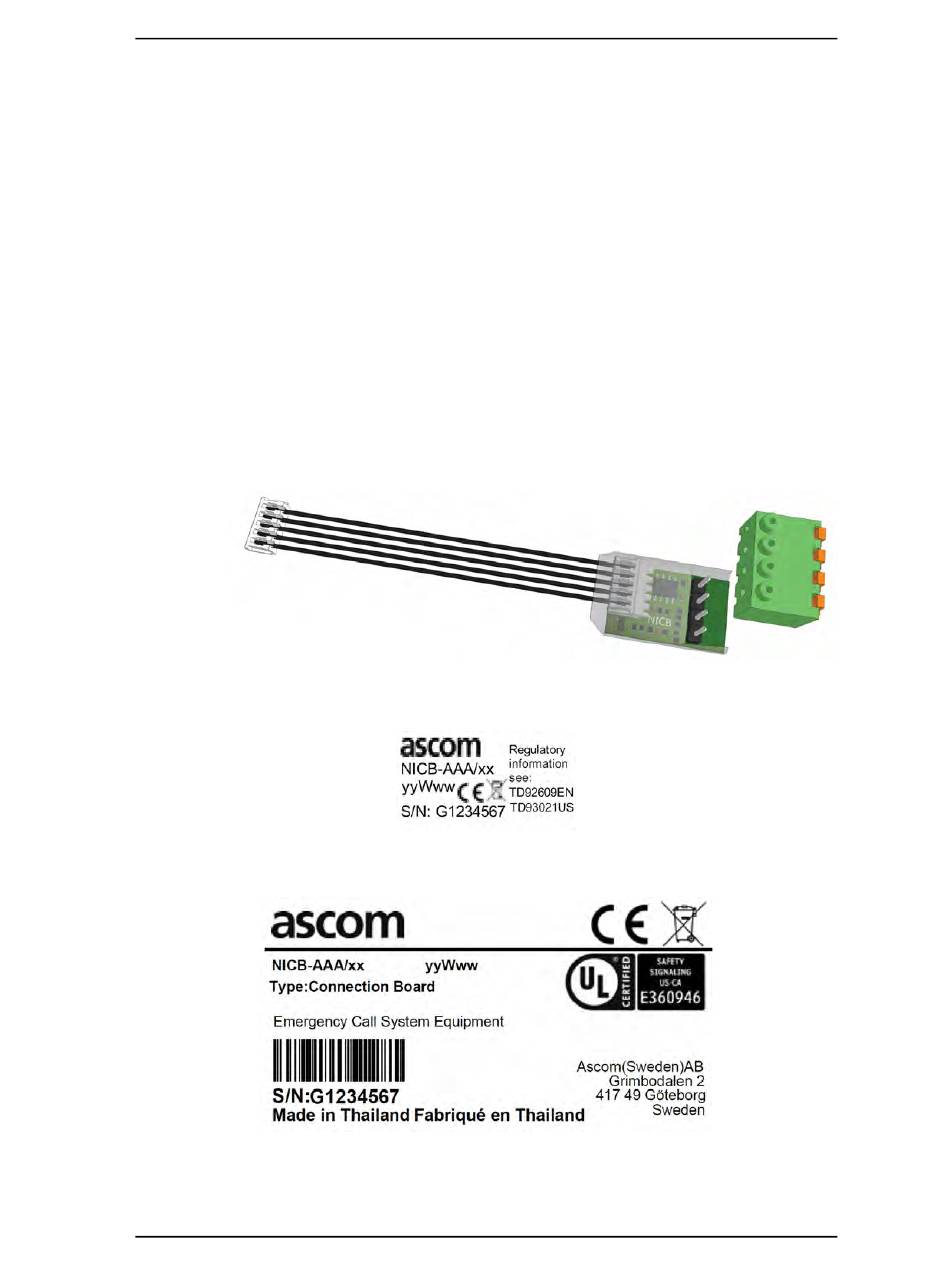

Figure 156. Connection Board Kit NICB-AAA.
Figure 158. Product label on the NICB-AAA.
TD 93021US
