2-4 Front Panel Overview

To turn on the Spectrum Master, press the green On/Off button on the front panel
(Figure 2-1)
Fan Exhaust
Port

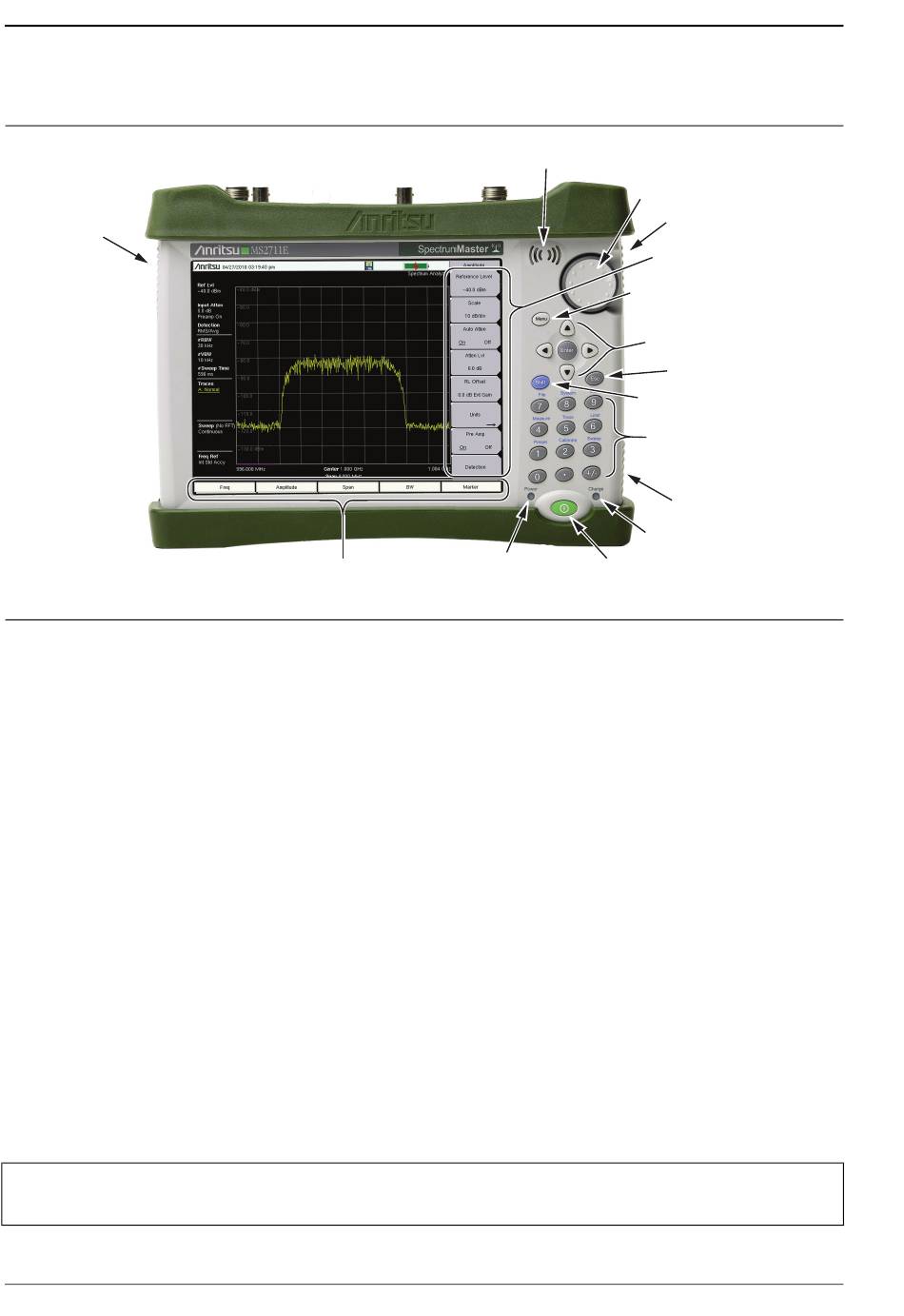

Figure 2-1. Spectrum Master Overview
The Spectrum Master takes approximately sixty seconds to complete power warm-up and
to load the application software. At completion, the instrument is ready for use.
2-4

Front Panel Overview

The Spectrum Master menu-driven interface is easy to use and requires little training. The
Spectrum Master uses a touch screen and keypad for data input. The five bottom menu keys
and eight submenu keys on the right side are touch screen keys. The menu and submenu keys
will vary depending upon the selected mode of operation, see
on page 2-12.
Numeric keys 1 through 9 are dual purpose, depending upon the current mode of operation.
The dual-purpose keys are labeled with a number on the key itself and the alternate function
is printed in blue above each of the keys. Use the blue Shift key to access the functions printed
on the panel. The Escape key, used for aborting data entry, is the oval button located above
numeric key 9. The rotary knob, the four arrow keys, and the keypad can be used to change
the value of an active parameter.
The Menu key provides graphical icons of all the installed measurement modes and user
defined short-cuts (see
Figure 2-1.
Keep the fan inlet and exhaust ports clear of obstructions at all times for proper
Note
ventilation and cooling of the instrument.
2-2
Touch Screen
Main Menu Keys
"Menu Key" on page
PN: 10580-00328 Rev. E
Speaker
Power LED
"Mode Selector Menu"
2-3). The locations of the keys are shown in
Instrument Overview
Rotary Knob
Fan Inlet Port
Touch Screen
Submenu Keys
Menu Key
Enter Key and Arrow Keys
Esc (Escape) Key
Shift Key
Numeric Keypad/
Shift Menu Keys (1 to 9)
Printed in Blue
Fan Inlet Port
Charge LED
On/Off Button
