2-7 Symbols and Indicators Instrument Overview
When either the AC-DC Adapter or the Automotive Cigarette Lighter Adapter is connected,
the battery automatically receives a charge, and the battery symbol with the lightning bolt is
displayed (Figure 2-9).

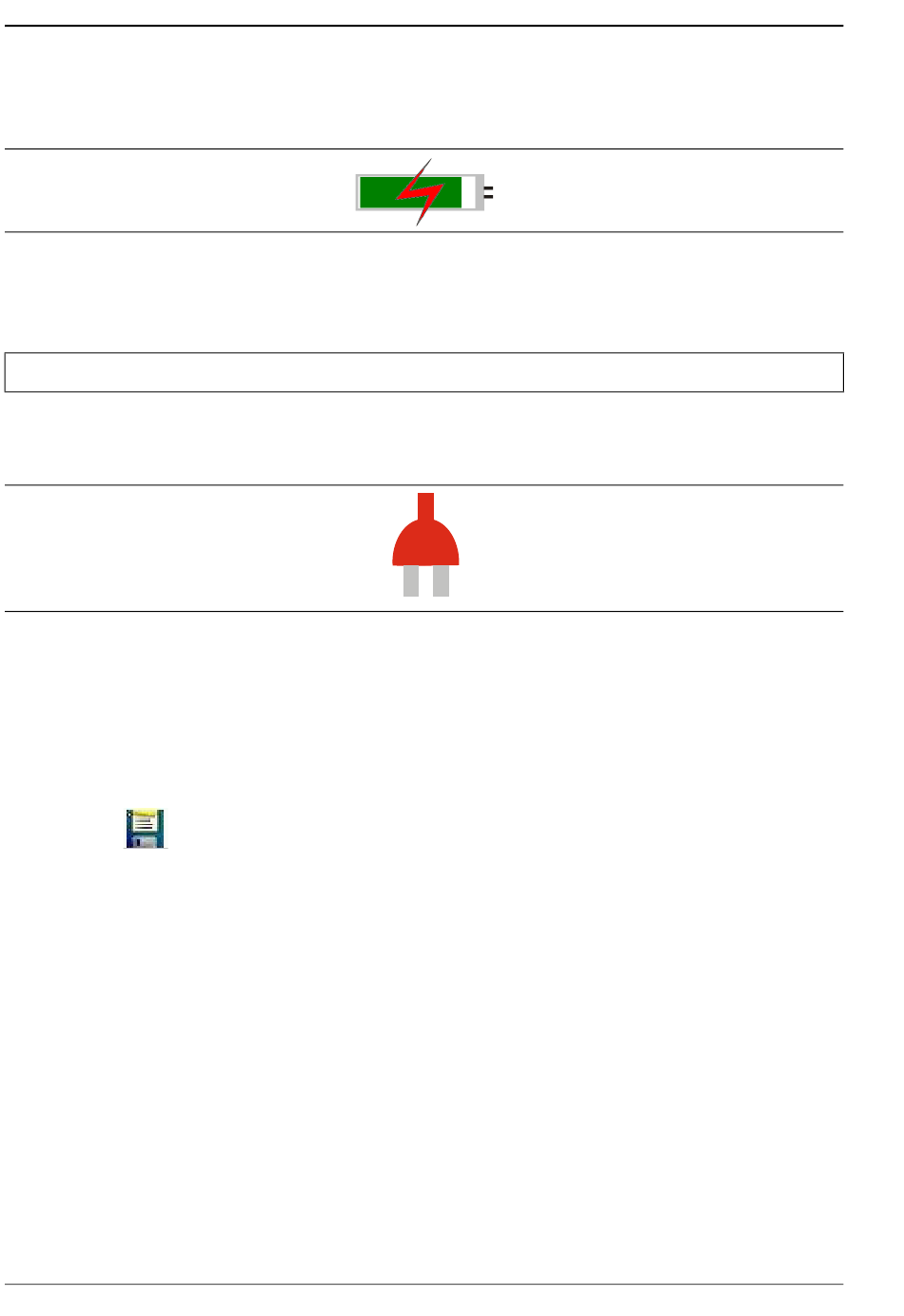

Figure 2-9. Battery Charging Icon
The green Charge LED flashes when the battery is charging, and remains on steady when the
battery is fully charged.
Caution Use only Anritsu-approved batteries, adapters, and chargers with this instrument.
When operating from external power without a battery installed, the battery symbol is
replaced by a red plug body (Figure 2-10).
Figure 2-10. Battery Not Installed

Additional Symbols

Single Sweep
Single Sweep is selected. Press in the Sweep menu to resume continuous sweeping.
Continuous
Floppy Icon
Shortcut to the Save submenu. Touch the icon to open the touch screen keyboard for saving
measurements, setups, or screen displays.
