2-9 Mode Selector Menu

Instrument Overview

2-9

To access the functions under the Mode menu, select the Shift key, then the Mode (9) key. Use

the directional arrow keys, the rotary knob, or the touch screen to highlight the selection, and

press the Enter key to select. The list of modes that appear in this menu will vary depending

upon the options that are installed and activated in the instrument.

Figure 2-12

is an

example of the Mode menu. Your instrument may not show the same list. The current mode is

displayed below the battery symbol.

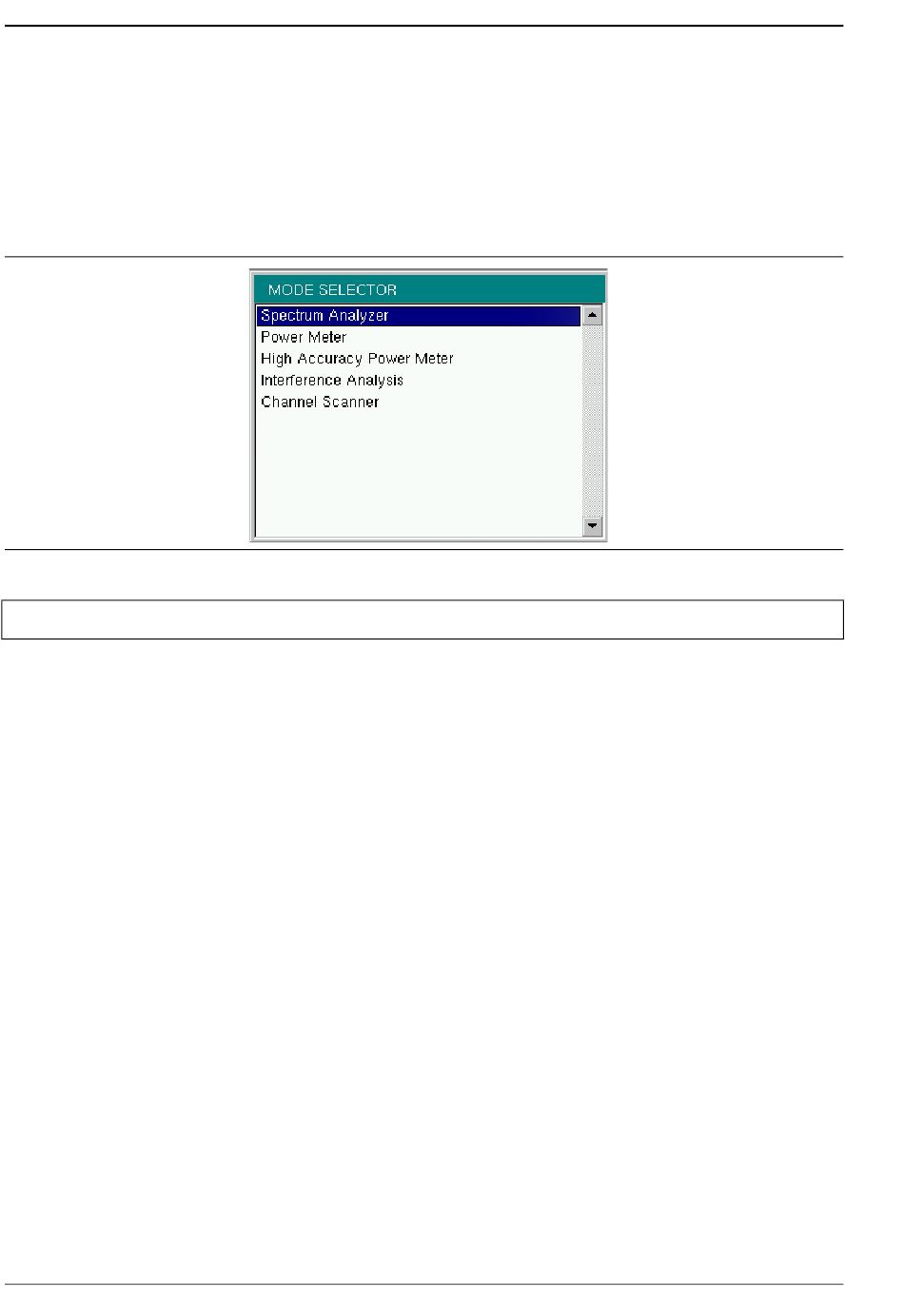

Figure 2-12. Mode Selector Menu

Note

The display of the Mode Selector will vary depending on the installed options.

The Menu key is another option to quickly change measurement modes. Press the Menu key

then select one of the Measurement icons in the top two rows

(Figure 2-2 on page

2-3).
