Configuration Quick Start Guide

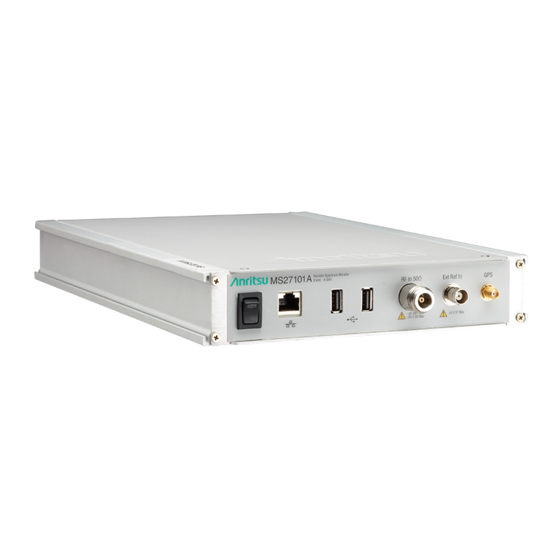

Remote Spectrum Monitors
MS27100A, MS27101A, MS27102A, MS27103A
9 kHz to 6 GHz
1. Introduction
The following are the topics covered in this Quick Start Guide:
•
"Setting Up Windows 7 for a Static IP"
•
"Configuring for Dynamic IP through SCPI Commands"
•
"Setting Up Windows 7 for Dynamic IP"
•
"UDP Discovery Tool"
•
"Secure Mode"
•
"Supplemental Information"
To communicate with the MS2710xA Remote Spectrum Monitor (RSM) or to change its IP
configuration, a PC must be correctly set up to communicate with the instrument via a direct
connection using a static IP. The sections in this guide explain using:
• A Windows PC to directly communicate with the Anritsu spectrum monitor
• SCPI commands for configuring the Ethernet and DNS settings
• The Anritsu Windows network discovery tool to find the instrument IP address
The remote spectrum monitor is shipped with the following default IP configuration:
• DHCP: OFF (Static IP Address)
• Static IP Address: 10.0.0.2
• Static Subnet: 255.255.255.0
• Static Gateway: 10.0.0.0
Read the MS2710xA Product Information, Compliance, and Safety Guide (PN: 10100-00064)
for important safety, legal, and regulatory notices. For additional information and literature
covering your product, visit the product page of your instrument and select the Library tab:
•
http://www.anritsu.com/en-US/test-measurement/products/ms27101a
•
http://www.anritsu.com/en-US/test-measurement/products/ms27102a
•
http://www.anritsu.com/en-US/test-measurement/products/ms27103a
Anritsu Company
490 Jarvis Drive
Morgan Hill, CA 95037-2809
USA
http://www.anritsu.com
Part Number: 10580-00414
Revision: D
Published: June 2019
Copyright 2019 Anritsu Company
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Anritsu MS27100A
Summary of Contents for Anritsu MS27100A
- Page 1 • A Windows PC to directly communicate with the Anritsu spectrum monitor • SCPI commands for configuring the Ethernet and DNS settings • The Anritsu Windows network discovery tool to find the instrument IP address The remote spectrum monitor is shipped with the following default IP configuration: •...
- Page 2 Setting Up Windows 7 for a Static IP 2. Setting Up Windows 7 for a Static IP The following example illustrates how to set up Windows 7 for a static IP address. Refer to your operating system documentation or consult with your network administrator for other Windows versions or operating systems.
- Page 3 Setting Up Windows 7 for a Static IP 4. Select Properties as shown in Figure 2a. 5. Highlight Internet Protocol Version 4 (TCP/IPv4) and select Properties as shown in Figure 2b. 6. Select Use the following IP address: and enter the following IP properties as shown in Figure 2c as listed: •...
- Page 4 SYSTem:COMMunicate:LAN:DHCP ON Turns the DHCP setting ON. The setting is applied immediately upon sending the command. Turning DHCP ON will change the IP address. The Anritsu Discovery program will Note need to be used to retrieve the new IP address. See “UDP Discovery Tool”...
- Page 5 Setting Up Windows 7 for Dynamic IP 4. Setting Up Windows 7 for Dynamic IP 1. Select the Local Area Connection link as shown in Figure 3. Figure 3. Select the Local Area Connection link 2. Select Properties as shown in Figure 4a. 3.
- Page 6 Hostname, Model number, Serial number, MAC address, Version number, or by IP Address. If needed, the tool also provides the ability to save the results of your search and to view a brief history of your searches for comparison. https://www.anritsu.com/en-US/test-measurement/support During the download process, a screen will appear as shown in Figure Figure 5.
- Page 7 UDP Discovery Tool When the download is complete, a user interface will appear as shown in Figure 1. Column Header 2. Column Filter Caret 3. Toolbar 4. Selection Filter List 5. Filter Entry Field 6. Find Instruments Bar 7. Display Type Figure 6.
- Page 8 UDP Discovery Tool Select a filter method 1. Click the connection arrow to display the filter list box are shown in Figure Figure 7. Filter List Box 2. Click a filter method from the list. The selections available are None, Hostname, Model Number, Serial Number, Mac Address, IP Address, IP Address, and DNS Server.
- Page 9 UDP Discovery Tool 3. Click None to display an alphabetical listing of the inventoried instruments available to connect as shown in Figure Figure 8. Displayed Instrument Inventory Sorting the Listing Selecting a column header displays a filter caret above column header as shown in Figure When the caret is clicked, the listing is sorted by the column in the direction the caret is pointing.
- Page 10 UDP Discovery Tool Figure 9. Locate Instrument Connecting another device will erase the Show Table log and display the new device details. The previous erased device details will be available in the Show History log until the history details are erased. See“Clearing the History”...
- Page 11 UDP Discovery Tool User Interface Display Types The selectable radio buttons provide the Show Table and Show History user interface connection display. Show Table : Click this radio button to display the device connection details as shown in Figure Show History : Click this radio button to display current and previous connection-activity details as shown in Figure Figure 10.
- Page 12 UDP Discovery Tool Clearing the History Clear the Show History log by clicking the Clear History button or by clicking Clear Log from the Toolbar File menu. 1. Click Clear History will display the dialog shown in Figure Figure 11. Clear History Dialog a.
-
Page 13: Secure Mode
The secure mode will be off. To communicate to the RSM unit, you must download Anritsu RSM Secure Mode.zip from the Anritsu website. This allows you to run the utility script, Anritsu RSM Secure Mode.exe, that communicates with the remote spectrum monitor. - Page 14 “Commands” on page QSG-15 illustrate what happens when a specific number in the command window is entered. 7. To end the Secure Mode, enter 7 to exit the Anritsu RSM Secure Mode utility script. QSG-14 PN: 10580-00414 Rev. D MS2710xA QSG...
- Page 15 Secure Mode Commands set_secure_mode,<system override password>,<on/off> Description: Sets Secure Mode on or off. Responds with “ok” if secure mode has been successfully turned ON or OFF. If secure mode is OFF, sending “on” turns secure mode ON (blocking all users not on the whitelist from accessing any port except 8001) and adds the user to a whitelist.
- Page 16 Secure Mode reset_password Description: Resets the System Override password back to the default value. A response of “ok” is returned when the password has successfully been reset. Parameters: None Syntax Example: reset_password query_secure_mode_state Description: Retrieves secure mode state, ON or OFF. A response of “on” is returned if secure mode is ON or “off”...
-
Page 17: Supplemental Information
Supplemental Information 7. Supplemental Information Configuring for Static IP through SCPI Commands To change from DHCP to Static IP, send these commands to port 9001 of the instrument’s dynamic IP address: 1. Set the static values of the Ethernet configuration that are used when DHCP is OFF: SYSTem:COMMunicate:LAN:CONFig <Static IP>,<Static Gateway>, <Static Subnet>... -
Page 18: System Override
Supplemental Information System Override In the event that the instrument does not respond to SCPI commands (due to circumstances like a long sweep used in conjunction with *OPC?) and needs to be reset remotely, the system override feature can be used. System override can be accessed through TCP port 8001 of the instrument. - Page 19 Supplemental Information MS2710xA QSG PN: 10580-00414 Rev. D QSG-19...
- Page 20 Anritsu Company 490 Jarvis Drive Anritsu utilizes recycled paper and environmentally conscious inks and toner. Morgan Hill, CA 95037-2809 http://www.anritsu.com...
