File Management 4-2 Managing Files

Deleting Files

Delete a Selected File or Files
Press the Delete submenu key. Highlight the file to be deleted with the touchscreen or the
Up/Down arrow keys. Press the Select or De-Select key. The file will be outlined in blue when
selected. Press the Delete key and Enter to delete the selected file.

Delete Dialog Box

Press the Delete submenu key to open the Delete dialog box (Figure 4-4). The submenus allow
sorting by file type, name and saved date. See the "Delete Menu" on page 4-13 for additional
information.

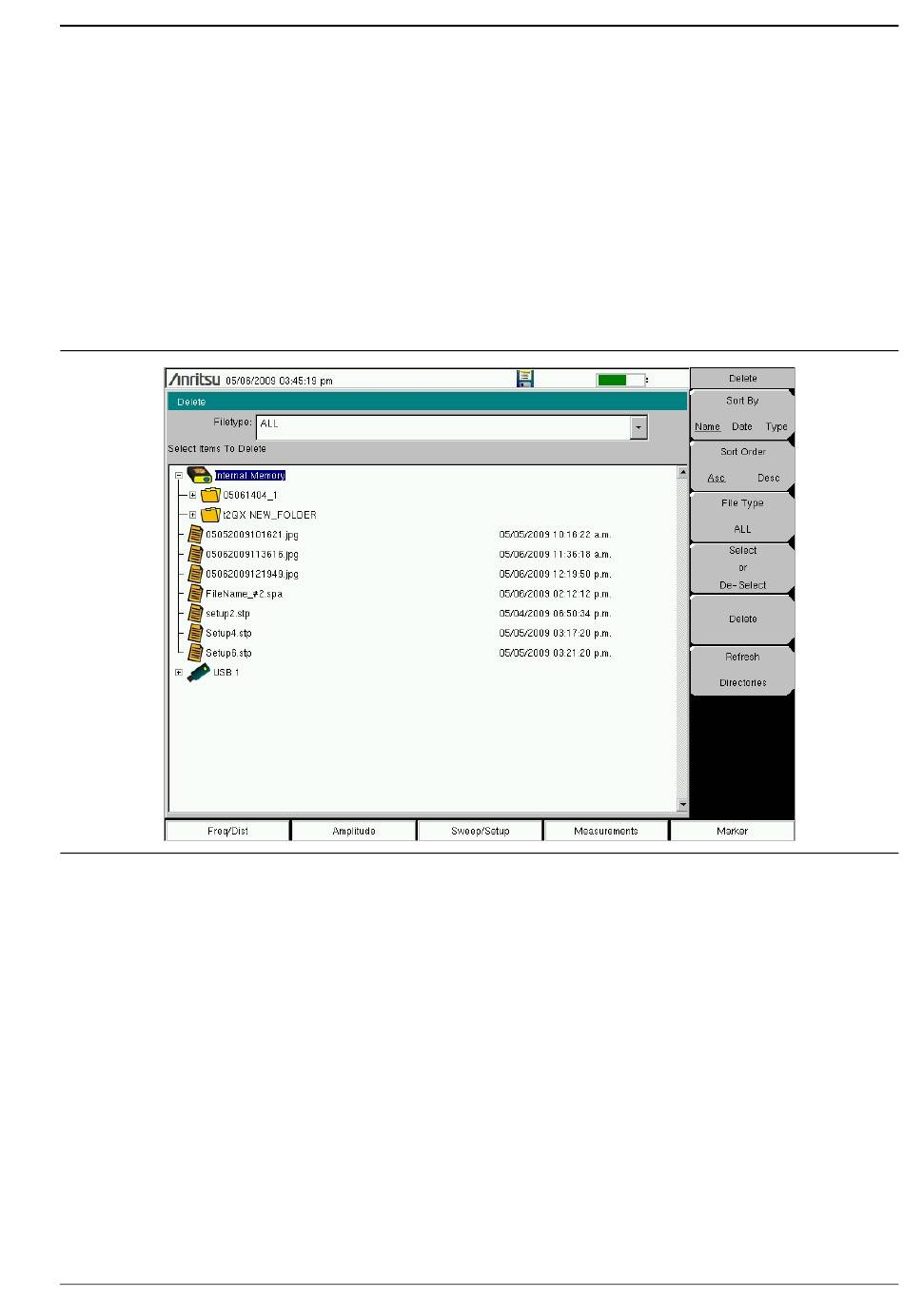

Figure 4-4. Delete Dialog Box
Spectrum Master User Guide PN: 10580-00328 Rev. E 4-5
