2-6 Test Panel Connector Overview

2-6

Test Panel Connector Overview

Test panel connector for the Spectrum Master is shown in
External
Reference
Generator/RF Out
(Option 20)

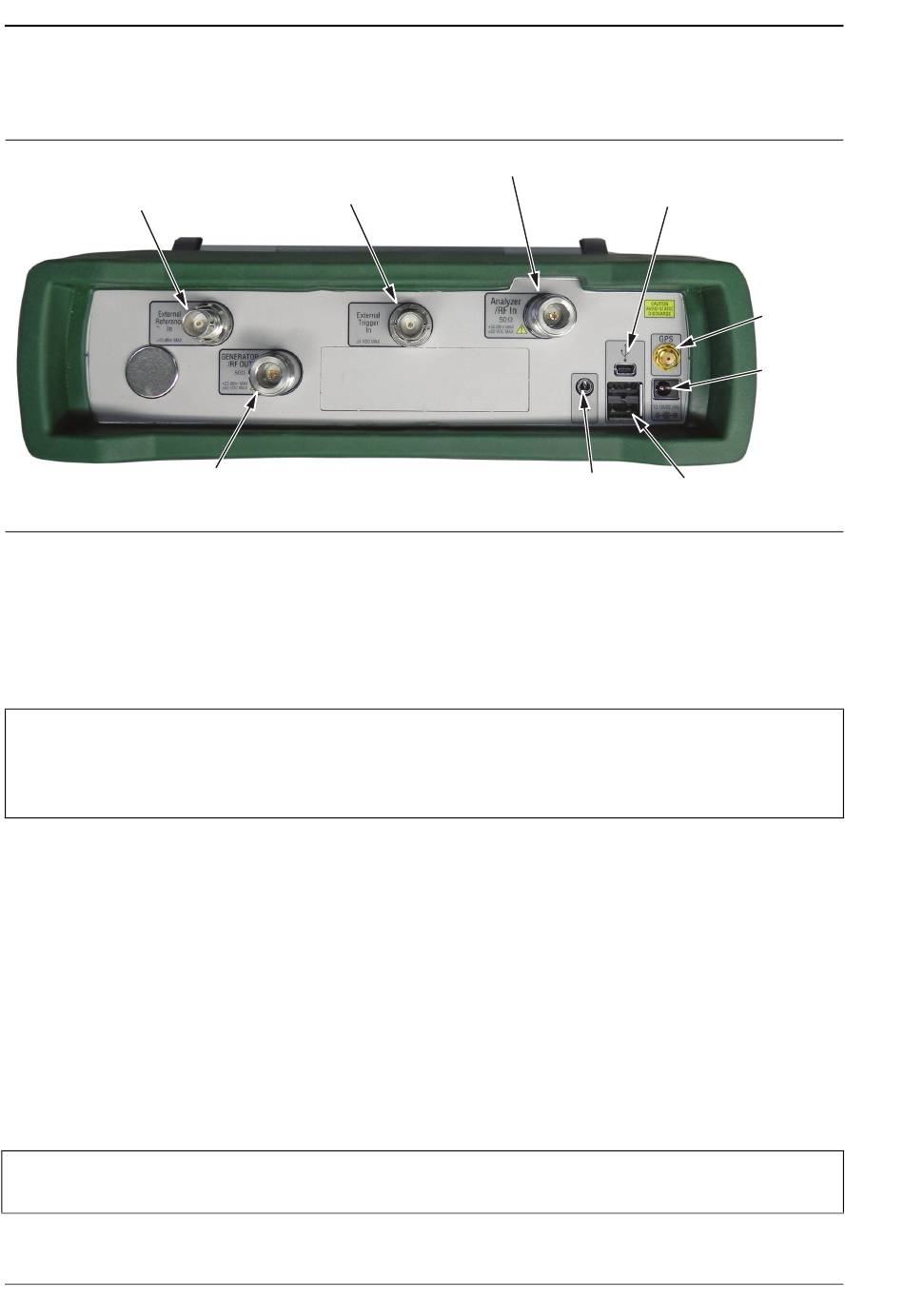

Figure 2-7. Spectrum Master Test Panel Connector
External Power
The external power connector is used to power the unit and for battery charging. Input is
12 VDC to 15 VDC at up to 5.0 A. The green flashing Power LED near the power switch
indicates that the instrument has external power.
When using the AC-DC Adapter, always use a three-wire power cable that is
connected to a three-wire power line outlet. If power is supplied without grounding
Warning
the equipment in this manner, then the user is at risk of receiving a severe or fatal
electric shock.
USB Interface – Type A
The Spectrum Master has two Type A USB connectors that accept USB Flash Memory
devices for storing measurements, setups data, and screen images.
USB Interface – Mini-B
The USB 2.0 Mini-B connector can be used to connect the Spectrum Master directly to a PC.
The first time the Spectrum Master is connected to a PC, the normal USB device detection by
the computer operating system will take place. The CD-ROM that is shipped with the
instrument contains a driver for Windows XP that is installed when Master Software Tools is
installed. Drivers are not available for earlier versions of the Windows operating system.
During the driver installation process, place the CD-ROM in the computer drive and specify
that the installation wizard should search the CD-ROM for the driver.
For proper detection, Master Software Tools should be installed on the PC prior to
Note
connecting the Spectrum Master to the USB port.
2-8
Analyzer/RF In
External
Trigger
PN: 10580-00328 Rev. E
Instrument Overview
Figure 2-7.
USB Mini-B
Headset Jack
USB Type A
Spectrum Master User Guide
GPS
External
Power
