4-2 Managing Files

File Management

Save a Measurement Screen as JPEG

Press the Save submenu key, type a name for the JPEG file, confirm that the file type is Jpeg,

and press Enter to save.

Save Dialog Box

The save dialog box

(Figure

4-1) is used to store files on the internal memory or an external

flash drive. The file type, file name, and save location are set at this display. See

"Save Menu"

on page 4-8

and

"Save Location Menu" on page 4-9

for details.

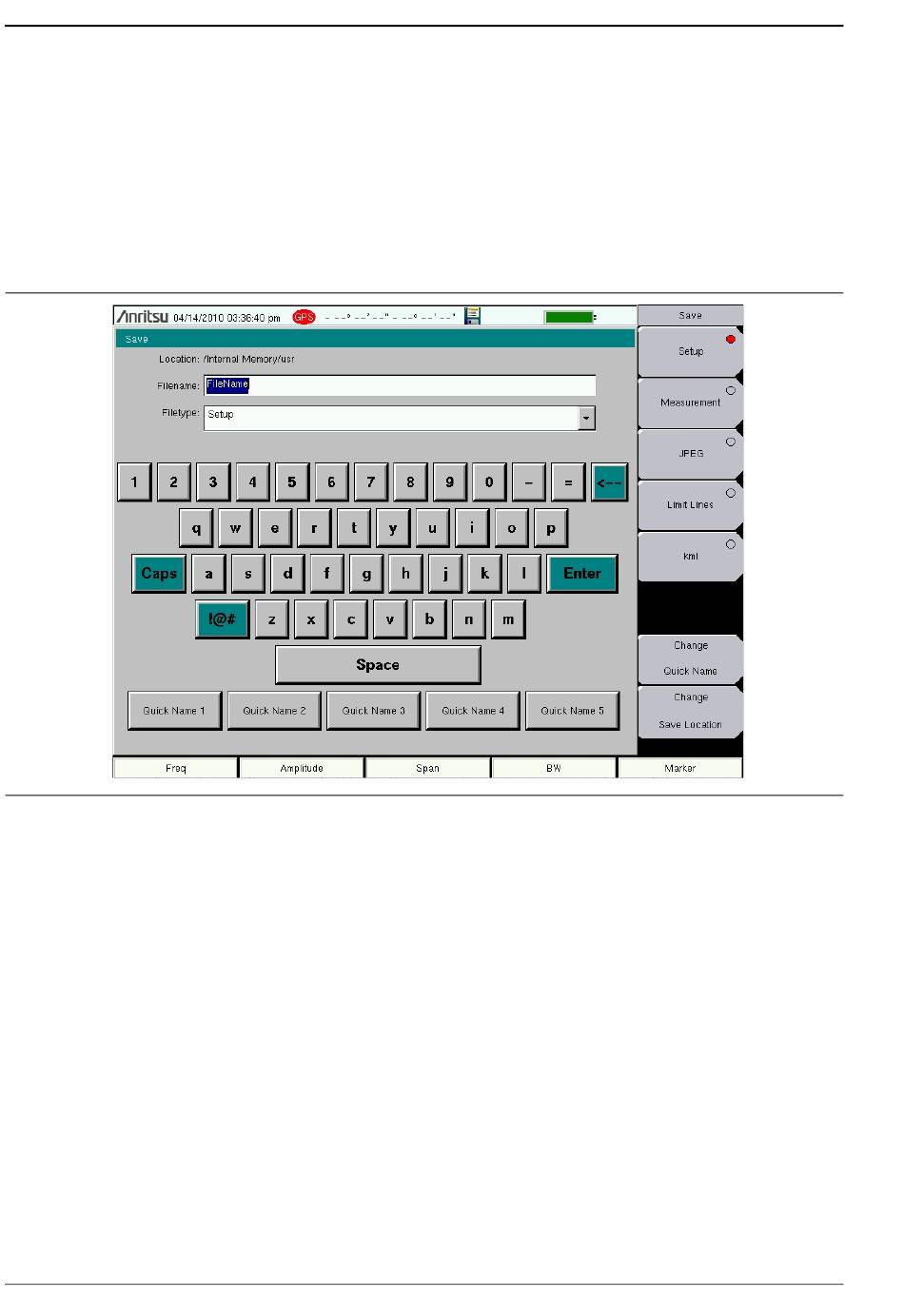

Figure 4-1.

Save Dialog Box

Quick Name keys below the keyboard in

Figure 4-1

allow users to enter quick names for

frequently used file measurement names. To edit the keys, press the Shift key, then the

File (7) key. Press Save then the Change Quick Name key, select one of the Quick Names for

editing, press Enter and enter the new name for the key. Press Enter again and the new name

will be displayed on the key.

4-2

PN: 10580-00328 Rev. E

Spectrum Master User Guide
