A11 Inclined slabs

The Main Beam SLT must be positioned
in the direction of the slab inclination.
Align Props with Drophead SFK at
right-angles to the Main Beams SLT
225.
The use with Prophead SSK is also pos-
sible. (Fig. A11.01)
When using PEP Slab Props, the Drop-
head SFK is diagonally bolted by means
of 2 Bolts M12 x 35-8.8 and Nut M12.
Tension forces and prop loads: see Ta-
ble A15.01.
Bracing with Tension Sleeve
SAO and Chain 3.0 kN
Assembly
1. Set up first bay with tripods or Frame
MRK.
2. Mount Base Plate (24) on a suffi-
ciently load-bearing surface area, e.g.
using PERI Anchor Bolt 14/20x130,
Item no. 124777. Take into considera-
tion the Technical Data Sheet!
3. Screw on Tension Sleeve SAO (39) to
Main Beam SLT.
4. Attach Anchor Chain (23) to Tension
Sleeve SAO (39).
5. Secure Anchor Chain to Base Plate
using bolts, and secure bolts by
means of cotter pins.
6. Tension Anchor Chain. (Fig. A11.01)
Components
23
Anchor Chain (permissible ten-
sion force = 3 kN)
24 Base Plate RS
24.1 Anchor Bolt PERI 14/20 x 130
39 Tension Sleeve SAO
60
α = 60°

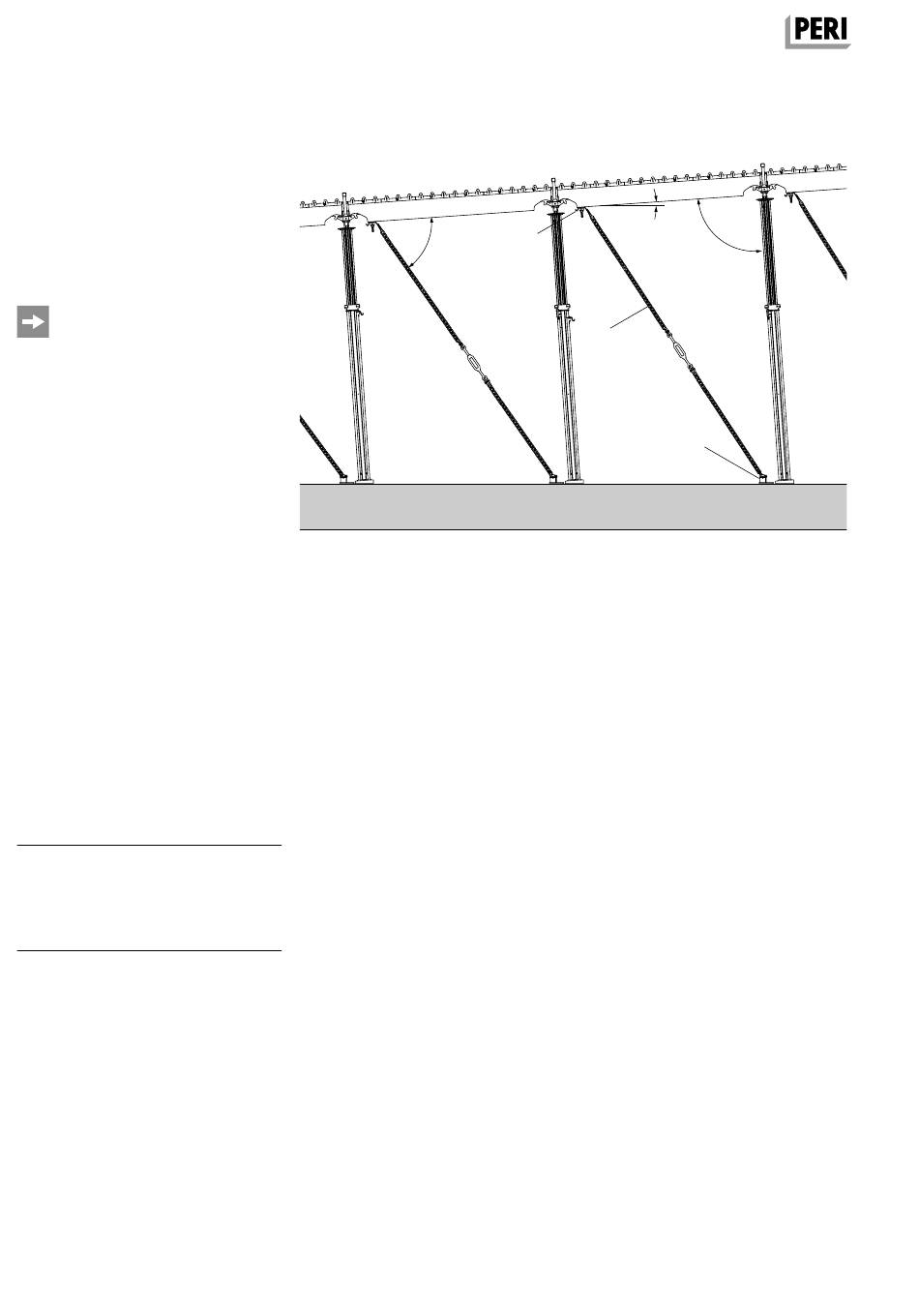

Fig. A11.01
β
39
23
24
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
