A8 Cantilevers, Guardrails
SKYDECK Guardrail Holder
SGH and Guardrail Post
SGP
Risk of falling!
During assembly, measures must be
taken to prevent falling, e.g. PPE!
Assembly
Continuous mounting of Guardrail Hold-
er SGH (17) between the panels. To do
so, place the guardrail holder laterally
offset on the main beam and slide in.
Spacing max. 1.55 m.
Wind safeguard measure: with wind
speeds > 90 km/h, remove the top
guardrail board. Adapt working area ac-
cordingly to suit changed guardrail situa-
tion.
After the last row of panels, mount the
Guardrail Holder SGH for the End Guard-
rail Frame on all main beams:
1. Start with the guardrail holder on the
outer right-hand side (17.1) – as
viewed when standing in front of the
formwork. Mounting bar is pointing to
the left.
2. Mount all other guardrail holders (17)
with the mounting bar pointing to the
right. (Fig. A8.09) The mounting bars
overlap in the first bay.
3. Insert guardrail posts (18).
4. Insert guardrail boards and secure
with nails. (Fig. A8.10)
Components
17 Guardrail Holder SGH
18 Guardrail Post SPG
20 Panel Wedge Clip SPKK
44

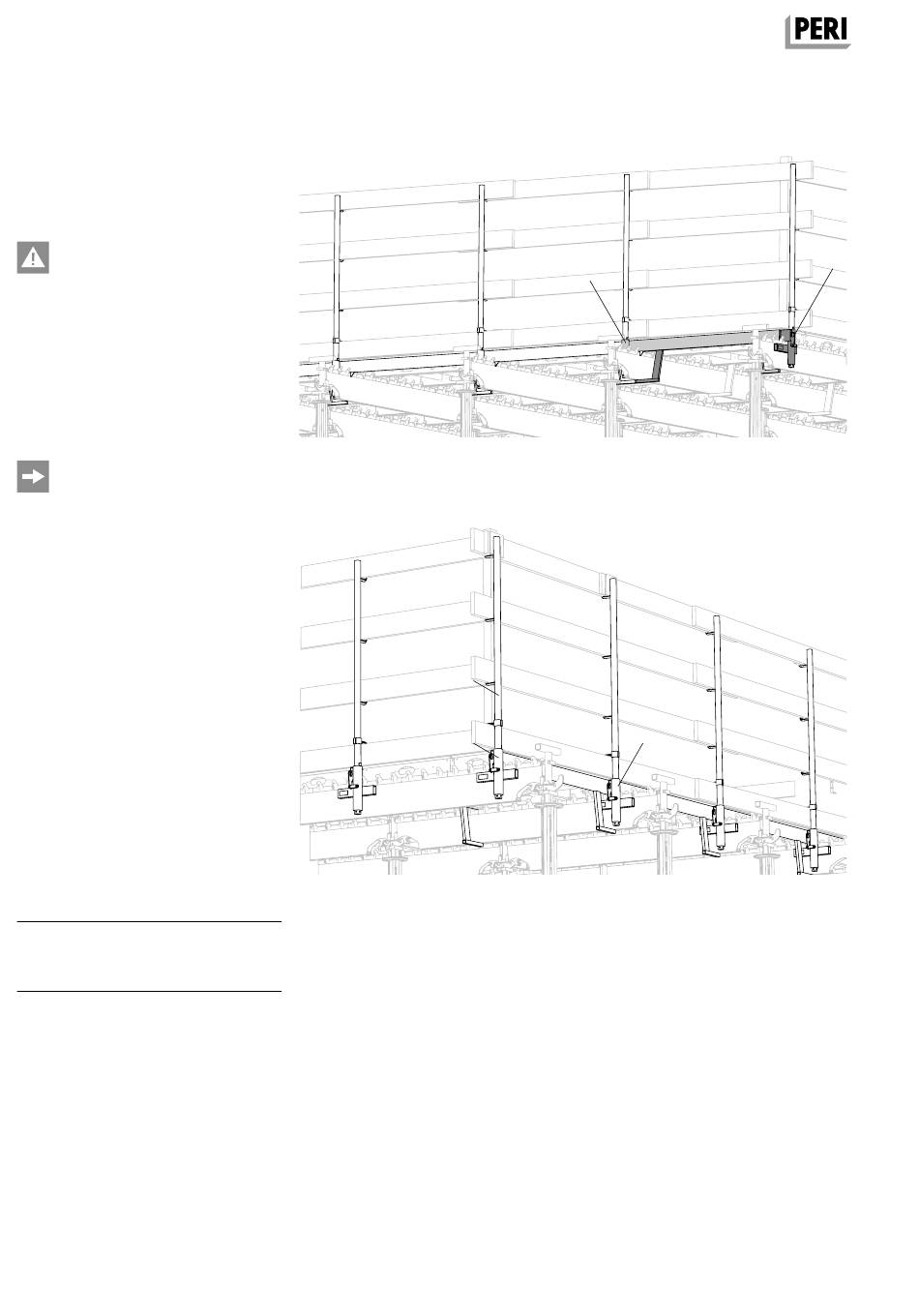

Fig. A8.09
18
17
Fig. A8.10
17
17
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
17.1
