A4 Shuttering

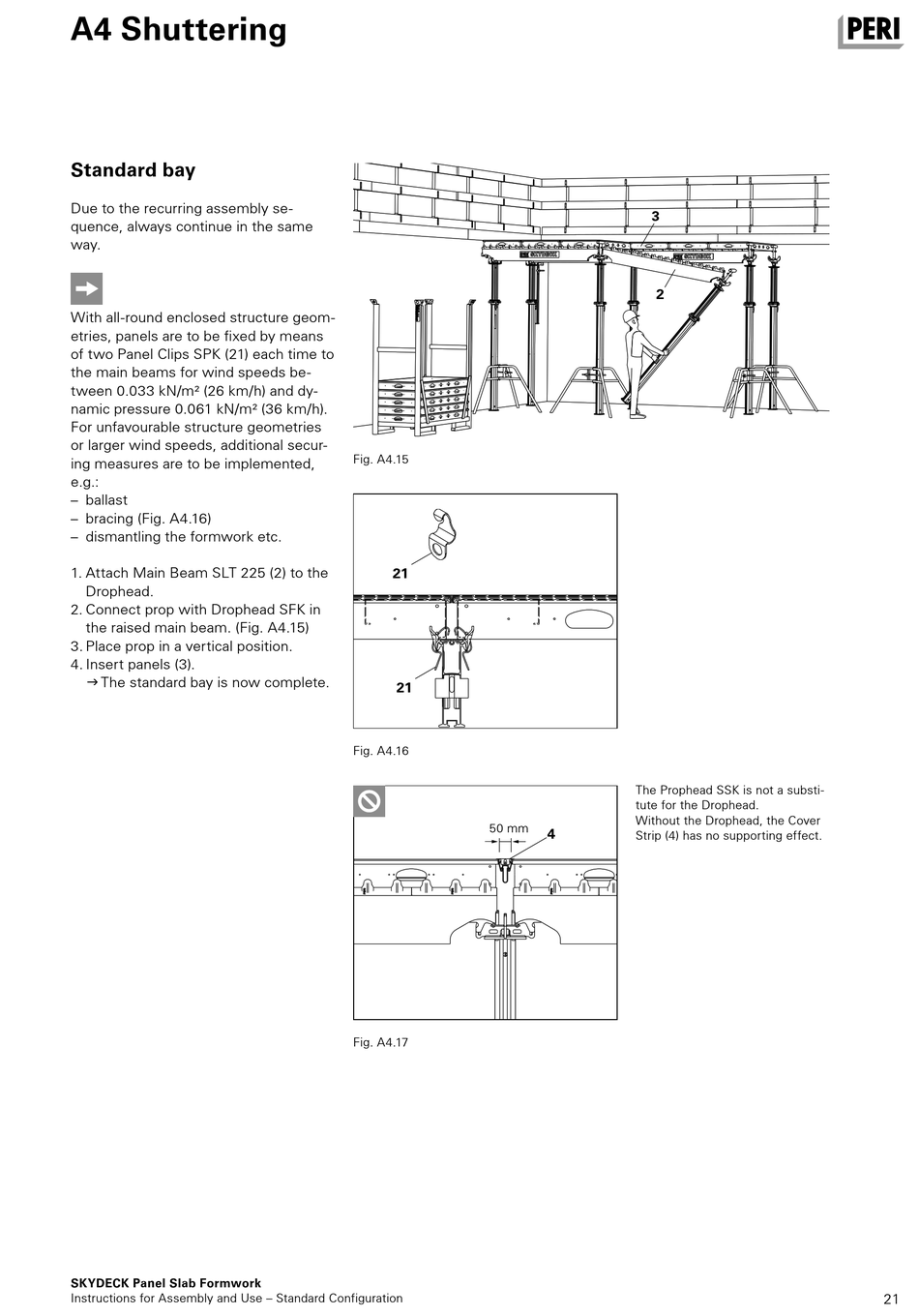

Standard bay

Due to the recurring assembly se-
quence, always continue in the same
way.
With all-round enclosed structure geom-
etries, panels are to be fixed by means
of two Panel Clips SPK (21) each time to
the main beams for wind speeds be-
tween 0.033 kN/m² (26 km/h) and dy-
namic pressure 0.061 kN/m² (36 km/h).
For unfavourable structure geometries
or larger wind speeds, additional secur-
ing measures are to be implemented,
e.g.:
– ballast
– bracing (Fig. A4.16)
– dismantling the formwork etc.
1. Attach Main Beam SLT 225 (2) to the
Drophead.
2. Connect prop with Drophead SFK in
the raised main beam. (Fig. A4.15)
3. Place prop in a vertical position.
4. Insert panels (3).
J The standard bay is now complete. J
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
Fig. A4.15
21
21
Fig. A4.16
50 mm
Fig. A4.17
3
2
The Prophead SSK is not a substi-
tute for the Drophead.
Without the Drophead, the Cover
4
Strip (4) has no supporting effect.
21
