Peri SKYDECK Instructions For Assembly And Use page 35

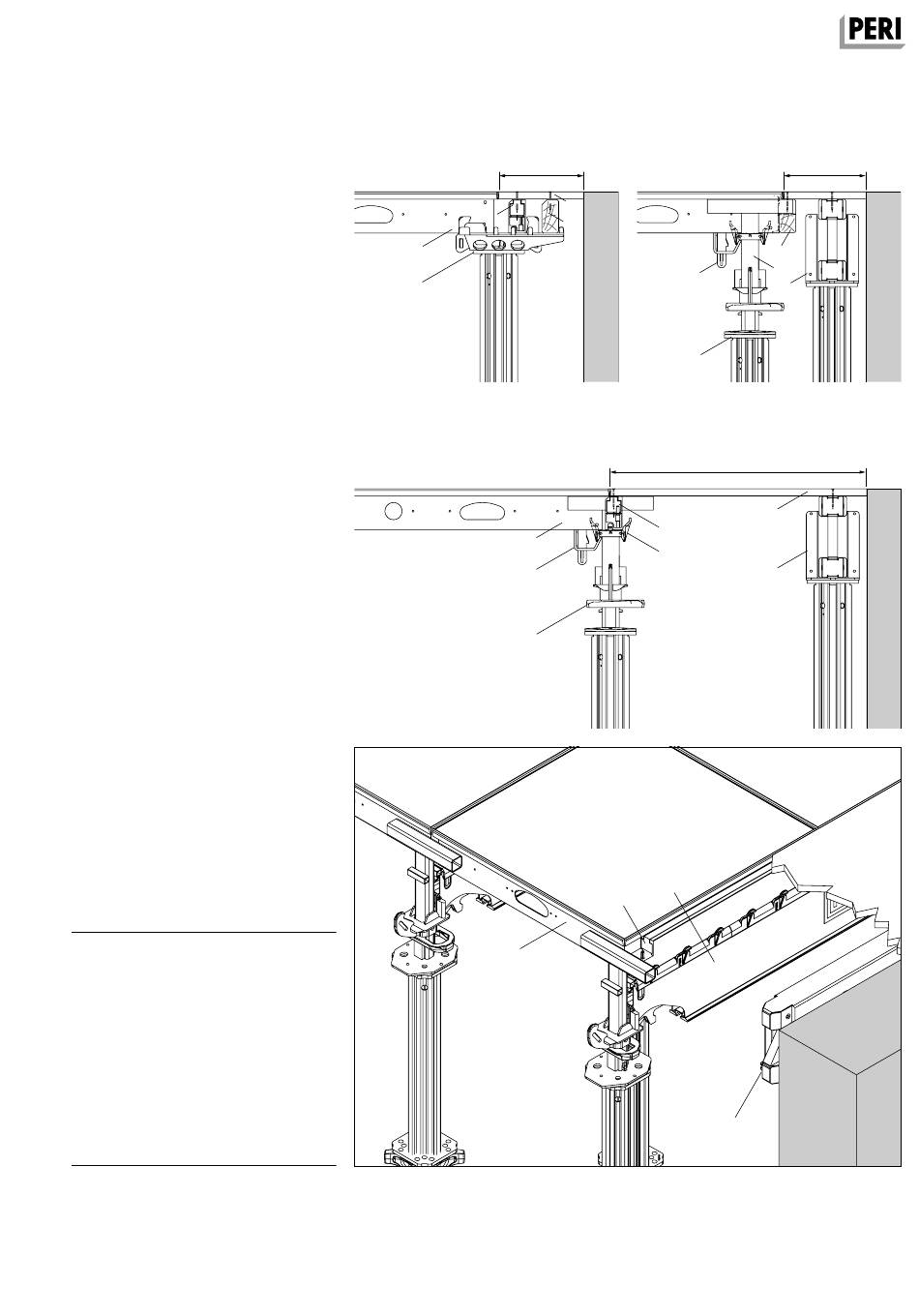

A5 Compensations
Gap 12.5 – 25 cm
1. Position Combihead SCK (7) with can-
tilever in the direction of the infill.
2. Install Panel (3).
3. Install Edge Beam SRT-2 (9) or Filler
Timber SPH (12) in the Combihead.
4. Install formlining (16) and secure with
nails. (Fig. A5.37)
Alternatively
1. Place Panel SDP (3) over the Main
Beam SLT (2) and secure with Panel
Wedge Clip (20).
2. Screw Filler Timber SPH (12) or tim-
ber on the panel.
3. Position additional prop with cross-
head (15) and formwork girder.
4. Install formlining (16) and secure with
nails. (Fig. A5.38)
Gap 25 – 75 cm
1. Mount the Panel SDP (3) in the Main
Beam (2).
2. Insert Edge Beam SRT-2 (9) in the
Main Beam.
3. Position additional prop with cross-
head (15) and formwork girder.
4. Install formlining (16) and secure with
nails. (Fig. A5.39 + A5.40)
Components
1 Drophead SFK
2 Main Beam SLT
3 Panel SDP
6
Prophead SSK
7 Combihead SCK
9 Edge Beam SRT-2 150
12 Filler Timber SPH
13 Timber
15 Additional prop with crosshead and
formwork girder
16 Formlining
20 Panel Wedge Clip SPKK
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
12.5 – 24.9
9
3
7
Fig. A5.37
3
20
1
Fig. A5.39
3a
Fig. A5.40
16
12
20
1
Fig. A5.38
24 – 75
9
2
2
9
15
12 – 24
12
2
15
16
15
33
