Transverse Compensations 31 A17 - Peri SKYDECK Instructions For Assembly And Use

A5 Compensations
Transverse compensations
Secure filler plates with nails!
Max. infills are 1.50 m.
Infills are calculated based on length of
room – n x 1.50 m.
See Tables: Fillers / Forming around col-
umns.

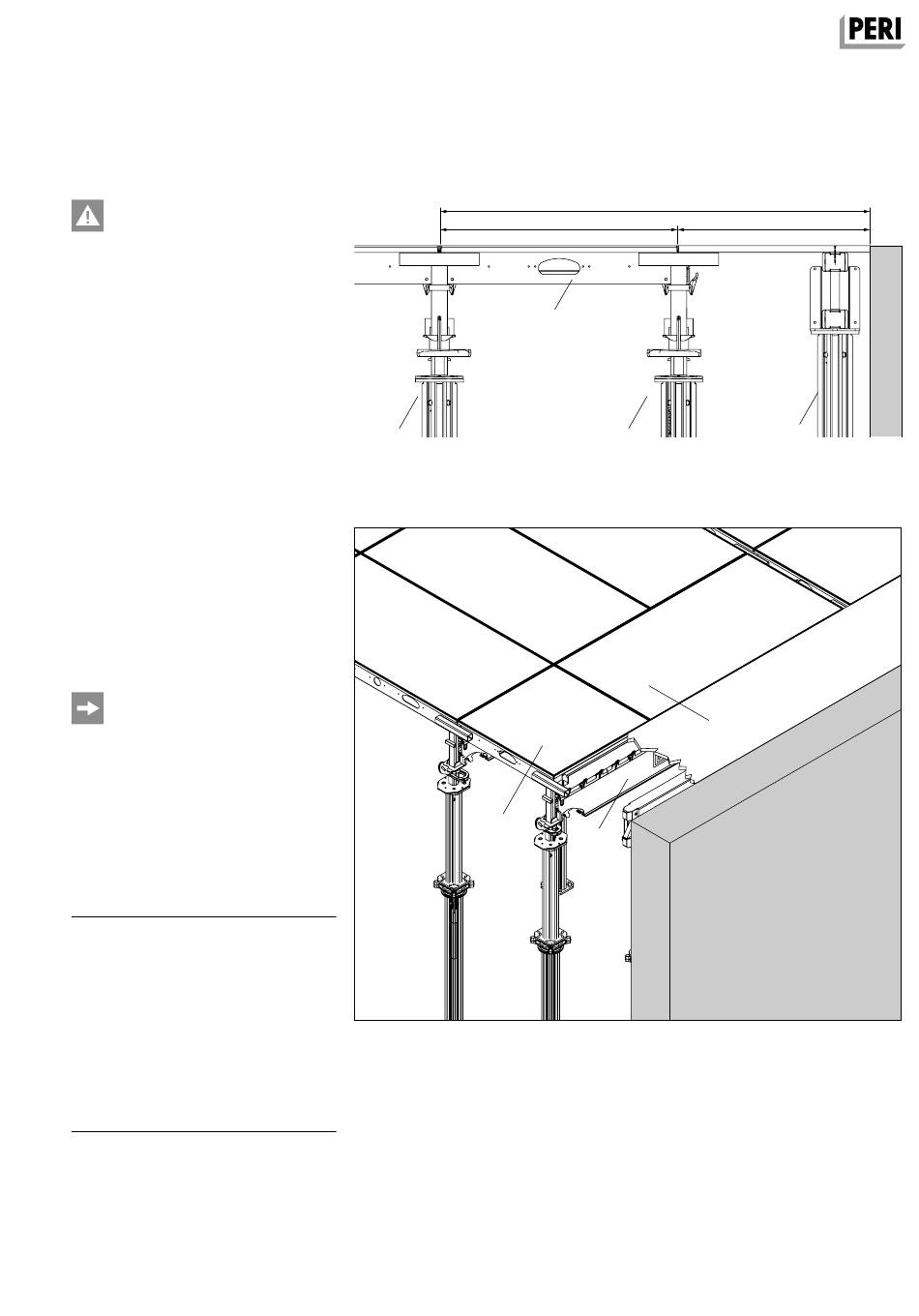

Forming the infills
Transverse infill between 75 cm and
1.50 m
1. Continue forming with prop, Main
Beam SLT 225 (2) and transverse-
ly-positioned panel (3). Close the
spacing to the next prophead with
Panel SDP 75 x 75 (3a).
(Fig. A5.31 + A5.32)
2. Depending on the required load-bear-
ing capacity, continue forming with
filler panels. See PERI Tables.
3. Form gaps up to 75 cm; see following
pages.
– Take into account the load-bearing ca-
pacity and supporting direction of the
formlining. See PERI Tables.
– Timbers are securely nailed or
screwed on the panel inner side be-
fore panels are assembled. Use the
nail holes in the panel edge struts.
Components
1 Drophead SFK
3 Panel SDP
6 Prophead SSK
7
Combihead SCK
9 Edge Beam SRT-2 150
11 End Support SSL
12 Filler Timber SPH
15 Additional prop with crosshead and
formwork girder
16 21 mm formlining provided by the
contractor
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
1
Fig. A5.31
3a
Fig. A5.32
≤ 1.50 m
75
3a
1
3
2
≤ 75
15
31
