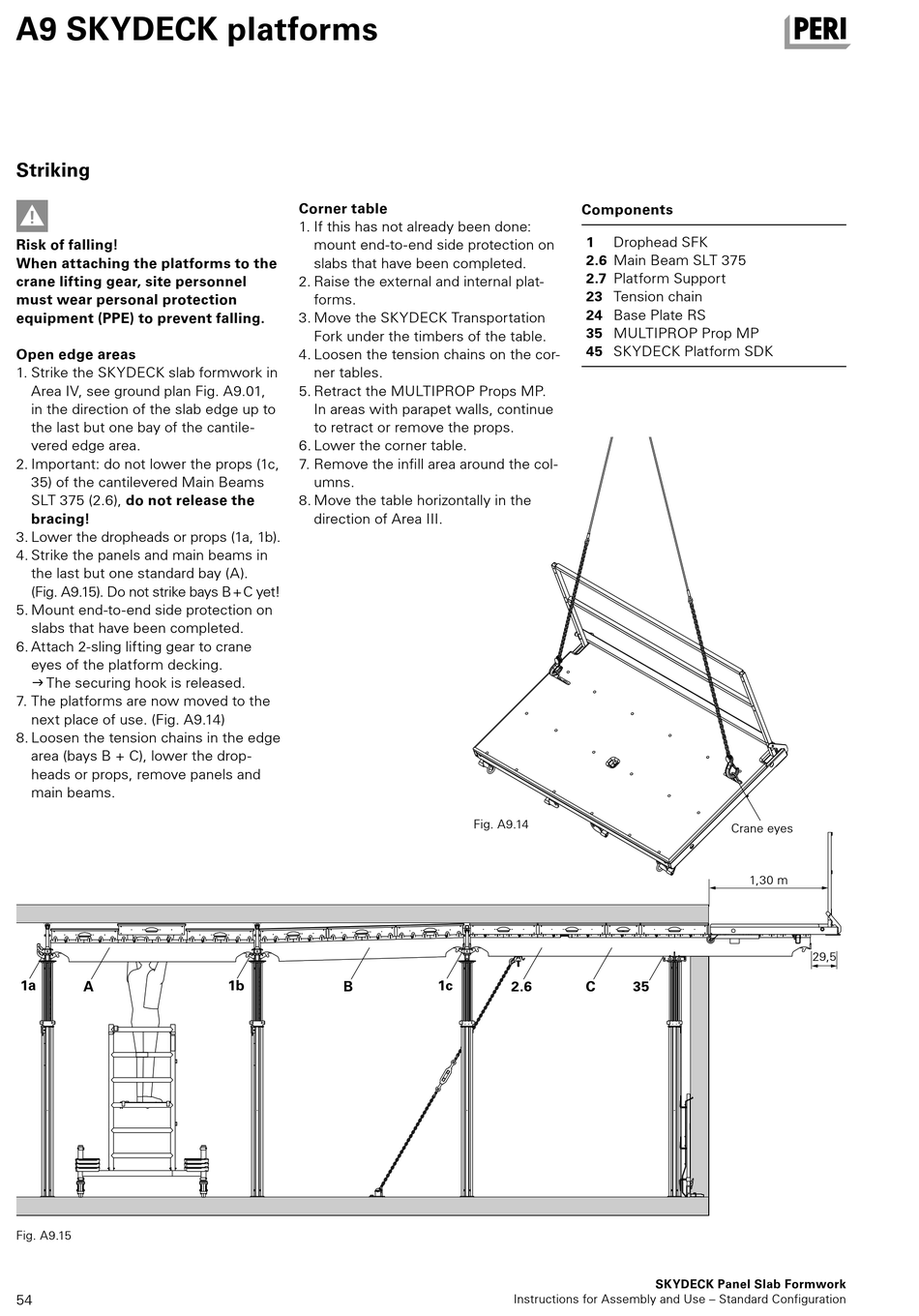

A9 SKYDECK platforms

Striking

Risk of falling!
When attaching the platforms to the
crane lifting gear, site personnel
must wear personal protection
equipment (PPE) to prevent falling.
Open edge areas
1. Strike the SKYDECK slab formwork in
Area IV, see ground plan Fig. A9.01,
in the direction of the slab edge up to
the last but one bay of the cantile-
vered edge area.
2. Important: do not lower the props (1c,
35) of the cantilevered Main Beams
SLT 375 (2.6), do not release the
bracing!
3. Lower the dropheads or props (1a, 1b).
4. Strike the panels and main beams in
the last but one standard bay (A).
(Fig. A9.15). Do not strike bays B + C yet!
5. Mount end-to-end side protection on
slabs that have been completed.
6. Attach 2-sling lifting gear to crane
eyes of the platform decking.
J The securing hook is released.
7. The platforms are now moved to the
next place of use. (Fig. A9.14)
8. Loosen the tension chains in the edge
area (bays B + C), lower the drop-
heads or props, remove panels and
main beams.
1a
A
Fig. A9.15
54
Corner table
1. If this has not already been done:
mount end-to-end side protection on
slabs that have been completed.
2. Raise the external and internal plat-
forms.
3. Move the SKYDECK Transportation
Fork under the timbers of the table.
4. Loosen the tension chains on the cor-
ner tables.
5. Retract the MULTIPROP Props MP.
In areas with parapet walls, continue
to retract or remove the props.
6. Lower the corner table.
7. Remove the infill area around the col-
umns.
8. Move the table horizontally in the
direction of Area III.
1b
B
Components
1
2.6 Main Beam SLT 375
2.7 Platform Support
23 Tension chain
24 Base Plate RS
35 MULTIPROP Prop MP
45 SKYDECK Platform SDK
Fig. A9.14
1c
2.6 C
Instructions for Assembly and Use – Standard Configuration
Drophead SFK
Crane eyes
1,30 m
35
SKYDECK Panel Slab Formwork
29,5
