A5 Compensations
Insert panels
With direct panel support, install the
cantilever of the Combihead in the di-
rection of the infill area. (Fig. A5.16)
The teeth in the plastic racks (7.2) on
the cantilever hold the panels (3) in 5
different positions. Select support posi-
tion according to the compensation
width. Position the cantilever of the
Combihead SCK as close as possible to
the wall in order to provide maximum
support for the infill area.
(Fig. A5.17c – A5.17d)
Do not install panels in a longitudinal di-
rection outside of the longitudinal axis
of the Combihead.
(Fig. A5.17e + A5.17f)
Components
1 Drophead SFK
2 Main Beam SLT
3
Panel SDP
7 Combihead SCK
14 Triangular Frame SDR
26
7.2
7
3
≤ 25

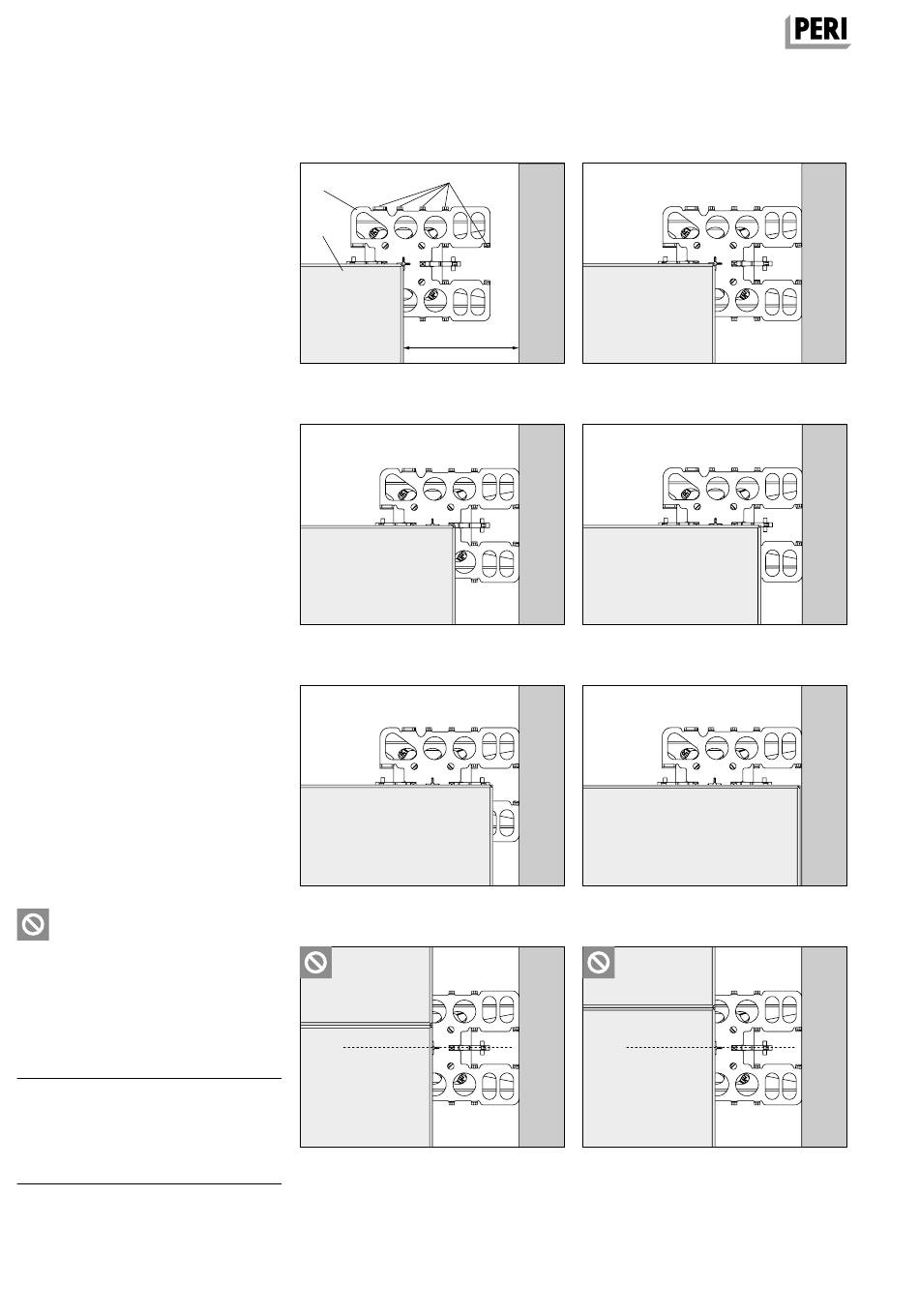

Fig. A5.16
Fig. A5.17a
Fig. A5.17c
Fig. A5.17e
Fig. A5.17
Fig. A5.17b
Fig. A5.17d
Fig. A5.17f
