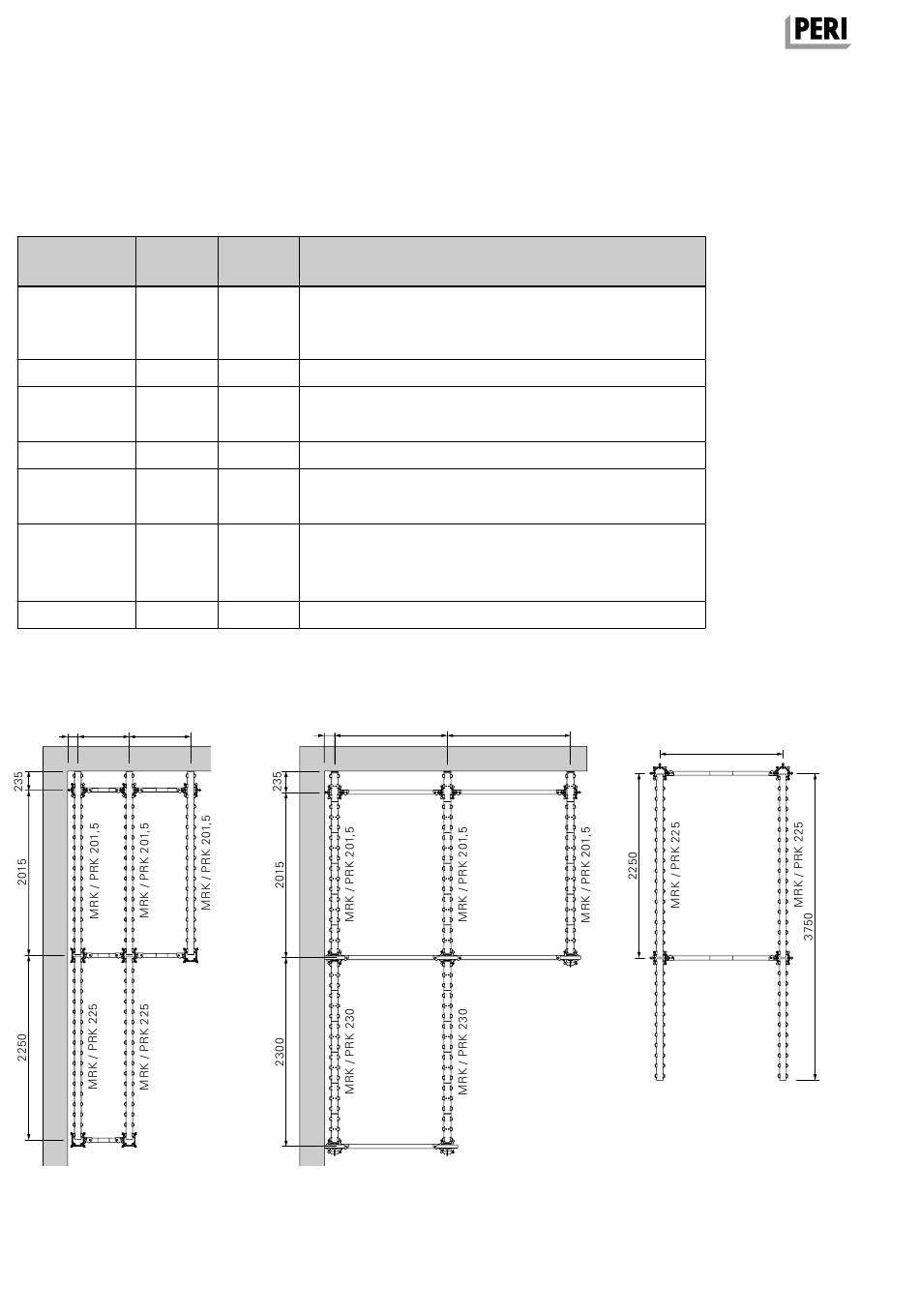

Peri SKYDECK Instructions For Assembly And Use page 18

A3 System dimensions
Overview of the required frames:
MRK with the use of MULTIPROP Towers
PRK with the use of PEP Props
MRK
Frames
Item no.
028390
62.5 Steel
75 Steel 028400
028380
137.5 Steel
150 Steel 028350
028460
201.5 Alu
225 Alu 028360
230 Alu
028470
Table A3.02
125 625 750
MRK MRK
PRK PRK
62,5 75
MRK MRK
PRK PRK
62,5 75
Fig. A3.01
16
PRK
SKYDECK system
Item no.
111811
– Inset beam at wall beginning with 75 cm panel span.
– Inset prop at wall beginning with Combihead.
111812 – Panel span 75 cm.
111813
– Inset beam at wall beginning with 150 cm panel span.
111814 – Panel span 150 cm.
111815
– Inset prop at wall beginning under SLT 225 with Prophead
or Combihead.
111816 – SLT 225 on Prophead or Combihead.
– Use of Cantilever Beam SLT 375 on Prophead/Combihead
or corner tables.
– SLT 225 on Dropheads.
111817
125
1375
MRK / PRK 137,5
MRK / PRK 137,5
Fig. A3.02
1500
MRK / PRK 150
MRK / PRK 150
Instructions for Assembly and Use – Standard Configuration
1500
MRK / PRK 150
MRK / PRK 150
Fig. A3.03
SKYDECK Panel Slab Formwork
