A8 Cantilevers, Guardrails

Bracing on open building
edges to prevent tipping
Horizontal loads must be additional-
ly taken into consideration and
transferred, e.g. with bracing; see
Section A7.
Cantilevers with Panels SDP
Mount Tension Sleeve SAO (39) on
main beam. Distance to inner prop max.
50 cm. Brace using Anchor Chain (23),
Base Plate (24) and Anchor Bolt (24.1).

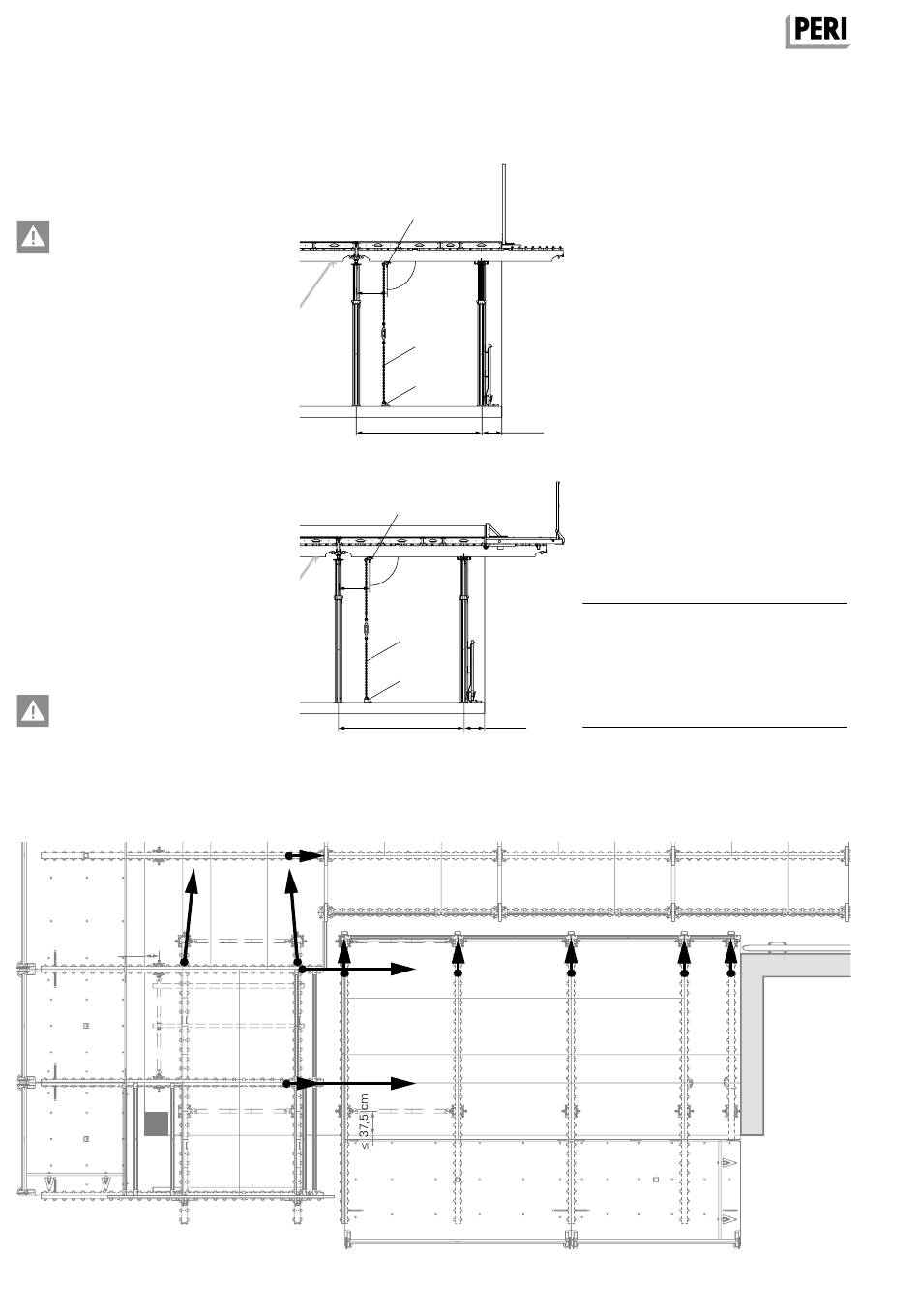

(Fig. A8.01)
Max. slab overhang: 37.5 cm.
Cantilevers with SKYDECK
Platforms SDB
(Fig. A8.02 + A8.03) See Cantilevers
with Panels SDP.
Corner table:
The Main Beams SLT "A + B" receive
2-fold horizontal load from the wind and
1-fold load from the stopend formwork
pressure. Additional bracing is required.
Fig. A8.03 shows only bracing from
Load Case Tilting.
Take into account Section A9
SKYDECK Platforms!
45c
≤ 37,5 cm
45a
45a
Fig. A8.03
42
Fig. A8.01
Fig. A8.02
B
A
39
90°
≤ 50
23
24
24.1
≤ 37.5
2.25 m
39
90°
≤ 54
23
24
24.1
≤ 37.5
2.25 m
45c
Instructions for Assembly and Use – Standard Configuration
Components
23 Anchor Chain (permissible ten-
sion force = 3 kN)
24
Base Plate RS
24.1 Anchor Bolt PERI 14/20 x 130
39 Tension Sleeve SAO
45 SKYDECK Platform SDK
45b
SKYDECK Panel Slab Formwork
