Peri SKYDECK Instructions For Assembly And Use page 32

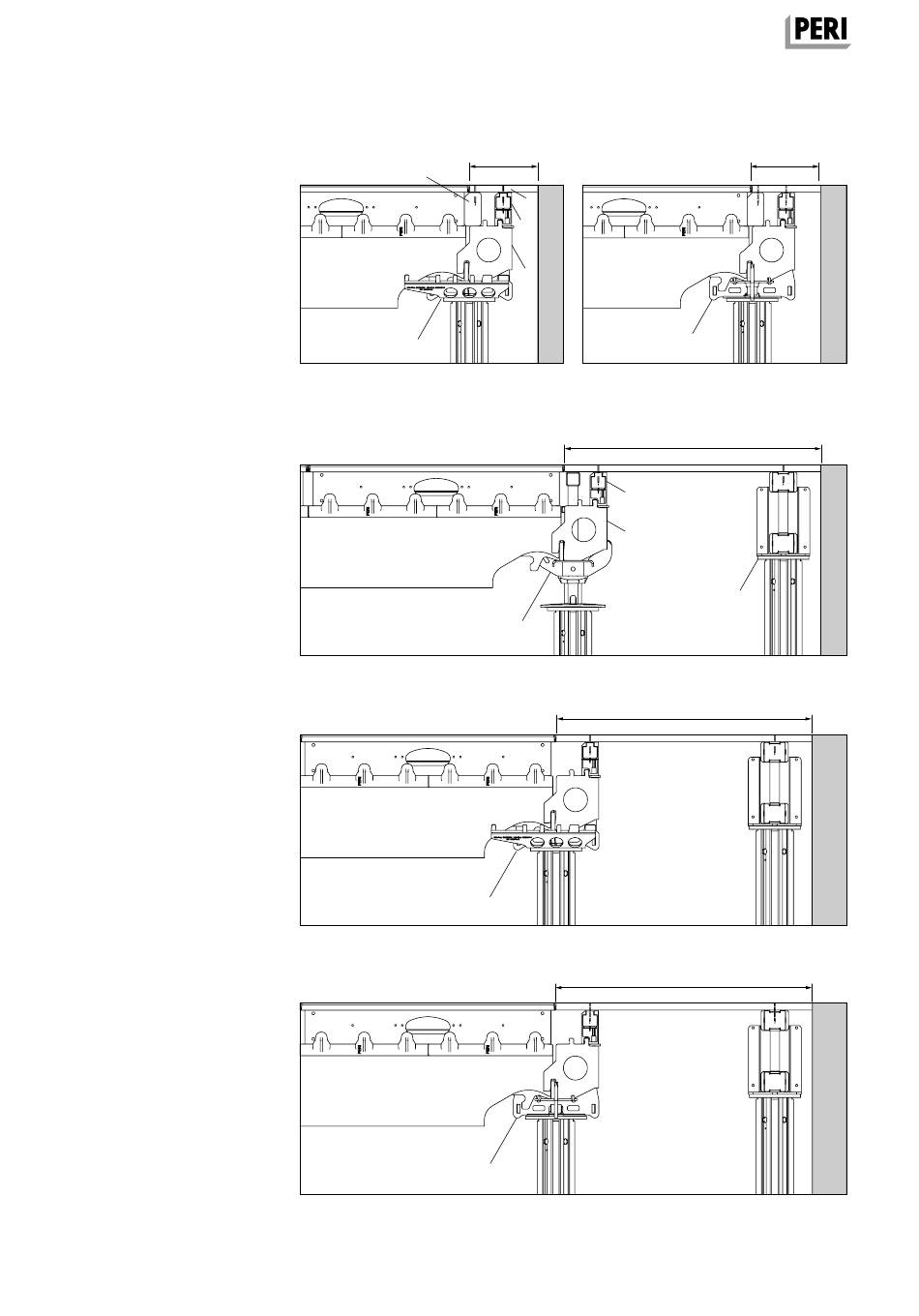

A5 Compensations
Gap 12.5 – 20 cm
1. Mount Combihead SCK turned by
180° (7) or Prophead SSK in the main
beam support.
2. Install End Support, Filler Timber and
Edge Beam.
3. Install formlining and secure in posi-
tion with nails. (Fig. A5.26 + A5.27)
Gap 20 – 75 cm
1. Install Main Beam in Drophead SFK
(1) (Fig. A5.31), with 180° turned
Combihead SCK (7) (Fig. A5.32) or
Prophead SSK (6) (Fig. A5.33).
2. Mount End Support (11) and Edge
Beam (9).
3. Position additional prop with cross-
head and formwork girder (15).
4. Install formlining and secure in posi-
tion with nails. (Fig. A5.28 – A5.30)
30
12
7
Fig. A5.26
Fig. A5.28
Fig. A5.29
Fig. A5.30
12 – 20
16
9
11
Fig. A5.27
9
11
1
7
6
Instructions for Assembly and Use – Standard Configuration
12 – 20
6
20.1 – 79.9
15
20.1 – 74.9
20.1 – 74.9
SKYDECK Panel Slab Formwork
