Cantilevers (Area Ll) - Peri SKYDECK Instructions For Assembly And Use

A9 SKYDECK platforms

Cantilevers (Area ll)

Risk of falling!
– Ensure that end-to-end side pro-
tection is installed on slabs that
have been completed!
– Do not erect formwork or step on
cantilevered tables before the ten-
sion chains are securely fixed.
Continue forming after erecting the cor-
ner table (Area I) in Area II with main
beams. Main beams are laid parallel to
the upper beams of the corner table.
Start shuttering at the edge of the slab.
1. Place prop with Drophead SFK (1) at
slab edge and secure with tripod.
2. Connect Main Beam SLT 375 (2.6)
and support by means of a second
prop with Prophead SSK (6) after
2.275 m at the edge of the building.
(Formed exclusively with prophead;
position front prop at a distance of
2.25 m).
3. Mount Tension Sleeve SAO (39) in
the main beam groove. Distance
≤ 50 cm from the non-cantilevered end.
4. Attach tension chain (23) with turn-
buckle to the eye at the top, and
anchor to the ground by means of a
base plate (24). (Fig. A9.08)
5. From below, bay by bay immediately
install 3 Panels 150 x 75 (3) and 1
Filler Panel 150 x 37.5 (3a) as far as
the platform support (2.7) of the Main
Beam SLT 375. For example, with
the PERI Stripping Cart ASW 465.
– Depending on the thickness of the
slab, position additional props and
girders at corresponding distances.
– In those areas where the 1.50 m grid
is interrupted by columns etc.,
a 75 cm bay may be installed. Ten-
sion Sleeves SAO are used to secure
against tipping.
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
1
23
24
60° – 90°

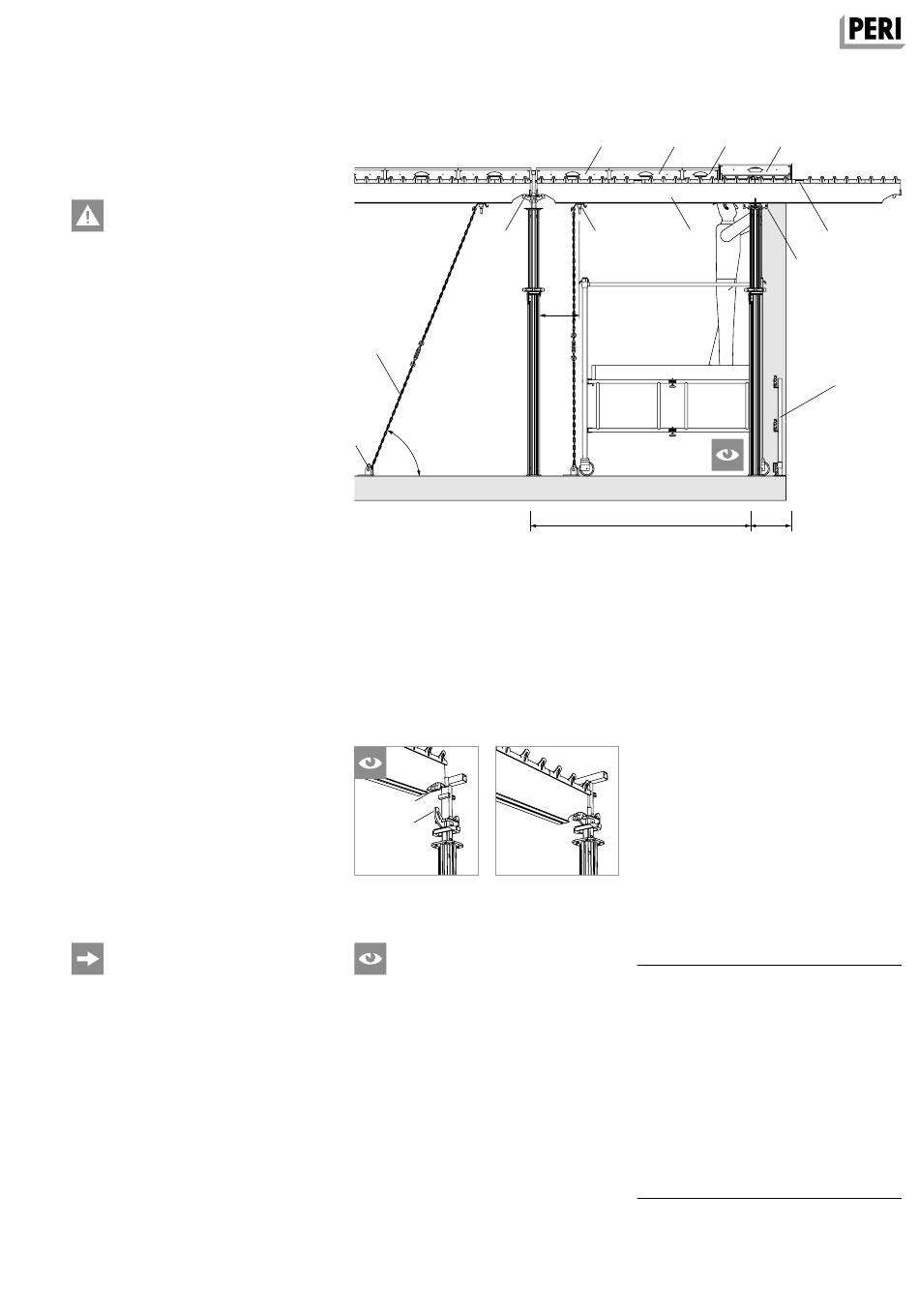

Fig. A9.08
Connection
Main Beam
Support
SFK
Fig. A9.09
– Are the props in line with the props of
the corner table? (Fig. A9.08)
– Is the Main Beam SLT mounted cen-
trally in the beam support of the
heads? Does the main beam connec-
tion enclose the main beam support
of the head? (Fig. A9.09)
3 3
max. Z = 3.0 kN
39 2.6
≤ 50
2,275 m*
*with the installation of Frames MRK 230 or
MRK 225: turn the Prophead SSK by 45°.
Components
1 Drophead SFK
2.6 Main Beam SLT 375
2.7 Platform Support
3
Panel SDP 150 x 75
3a Panel SDP 150 x 37.5
6 Prophead SSK
10 Edge Beam SRT
19 Timber
20 Panel Wedge Clip SPKK
23 Tension chain
24 Base Plate RS
39 Tension Sleeve SAO
3a 3
2.7
6*
Side protection
37,5
