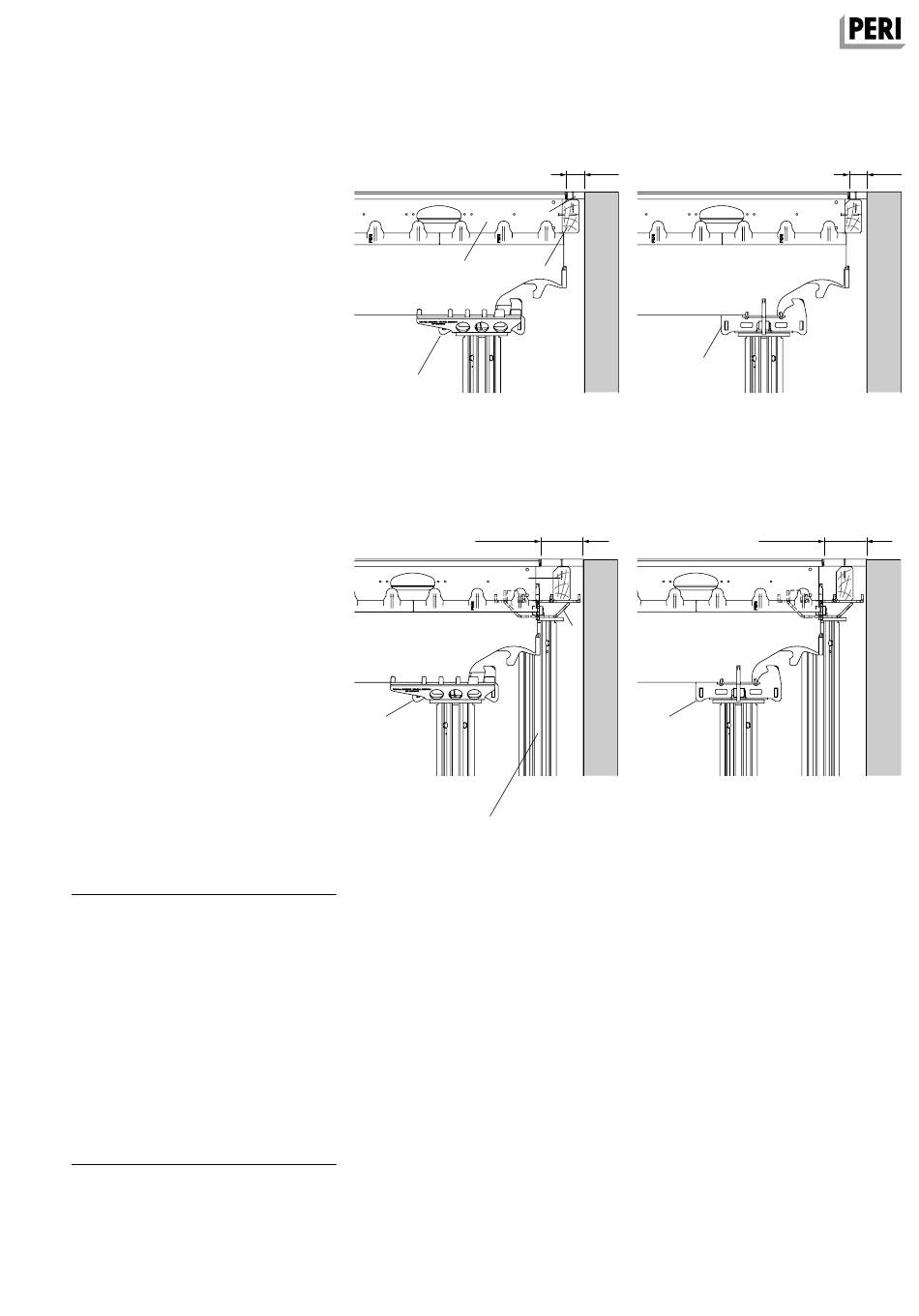

A5 Compensations
Gap 0 – 6 cm
1. Place Combihead SCK (7) or Prop-
head SSK (6) in a recessed position
under the Main Beam SLT (2.5).
2. Nail Filler Timber SPH (12) or timber
up to max. 6 cm on the panel.
3. Install formlining (16) and secure with
nails. (Fig. A5.22 + A5.23)
Gap 5 – 12.5 cm
1. Place Main Beam SLT (2) on inset
prop with Combihead SCK (7) or
Prophead SSK (6).
2. Place additional props with trans-
versely positioned Combiheads SCK
(7a) in an offset arrangement.
3. Install Filler Timber SPH (12) or Edge
Beam SRT (9).
4. Position the formlining and secure
with nails. (Fig. A5.24 + A5.25)
Components
1
Drophead SFK
2.5 Main Beam SLT 150
3 Panel SDP
6 Prophead SSK
7 Combihead SCK
9 Edge Beam SRT-2 150
11 End Support SSL
12 Filler Timber SPH
13 Timber
14 Triangular Frame
15 Additional prop with crosshead and
formwork girder
16 21 mm formlining provided by the
contractor
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
2.5
7
Fig. A5.22
12
7
Fig. A5.24
Offset prop arrangement.
0 – 6
16
12
6
Fig. A5.23
5,1 – 12,4
7a
6
Fig. A5.25
0 – 6
5,1 – 12,4
29
