Corner table (Area l)

Risk of falling!
Ensure that end-to-end side protec-
tion is installed on slabs that have
been completed!
Begin forming operations on a free
building corner.
The corner table is assembled on the
previously concreted slab in the inside
of the building. Subsequently, position
in the corner (Area I) and secure against
tipping. (Fig. A9.01)
Frame assembly
1. Spindle out the MULTIPROP Props
MP (35) 3 cm on a narrow side. The
two props opposite (35.1) are not
spindled out. As a result, the height
difference resulting from the different
installations of the main beam is com-
pensated. The exact height adjust-
ment takes place later.
2. Four MULTIPROP Props are placed in
a 1.50 m x 2.25 m grid with the spin-
dles (inner tube) downwards and
formed into a base frame using
MULTIPROP MRK 150 (36) and
MRK 225 (36.1) Frames. (Fig. A9.02)
Mount the frame at the same level
above the slab. Locking wedges
(36.2) are facing outwards.
3. Attach two Propheads SSK (6) on the
extended props.
Assembly of the main beams
1. Insert each Main Beam SLT 375 into
a main beam groove:
– Use two Bolts M12 x 140 DIN 6914
for fixing timbers 8/12.
– 2 x Table Connector STV (38).
– Sequence and alignment of bolts
and table connectors: see
Fig. A9.03.
2. Mount Main Beam SLT 375 (2.6) and
set the beam down on the front prop.
3. Push the Table Connector STV up to
the MULTIPROP Props and make a
secure connection by tightening the
ring bolts. (Fig. A9.03a)
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
35 36

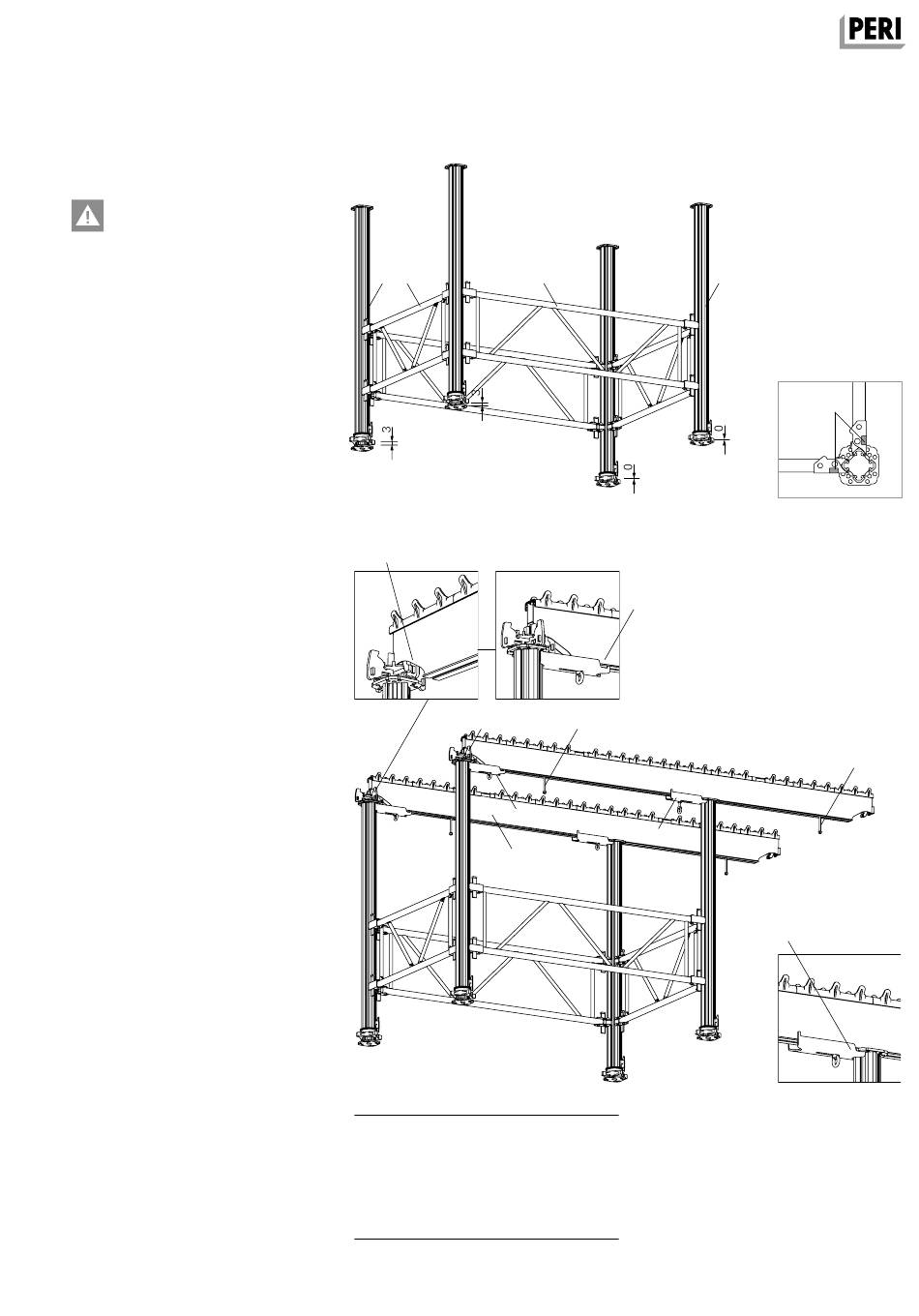

Fig. A9.02
Main Beam Support SSK (shown without table
connector).
6
38
2.6
Fig. A9.03
Components
2.6 Main Beam SLT 375
6
Prophead SSK
35 MULTIPROP Prop MP
36 MULTIPROP Frame MRK
37 Bolt M12 x 140
38 Table Connector STV
36.1
Afterwards, mount the
Table Connector STV.
37
38
35.1
36.2
37
38
Fig. A9.03a
