A10 Changing direction

System with Prophead SSK

If the Prophead SSK is used in the main
bay, then the Transition Head SDFK (26)
is to be used when changing direction.
Mount the Transition Head SDSK with
the two bolts and nuts (26.1) – which
are included in the delivery – on the slab
props.
During assembly of the prophead en-
sure that group of nuts (26.1) point to-
wards the support of the MULTIPROP
Props. Otherwise, overlapping may oc-
cur between the nuts and weld seam.
Changing the main bay direction
by 90°
With the change in direction, the main
bays are turned 90° without having to
assemble a new system.
As a result, T- and L-shaped ground
plans are possible.
The change of direction is realized using
the Main Beams SLT 150 in the outer
row of the main bay.
– The Transition Head SDSK with
the two bolts and nuts (26.1) –
which are included in the delivery
– must be mounted on the slab
prop.
– The Prophead SDSK for changing
direction must be used with 3
Main Beams SLT!

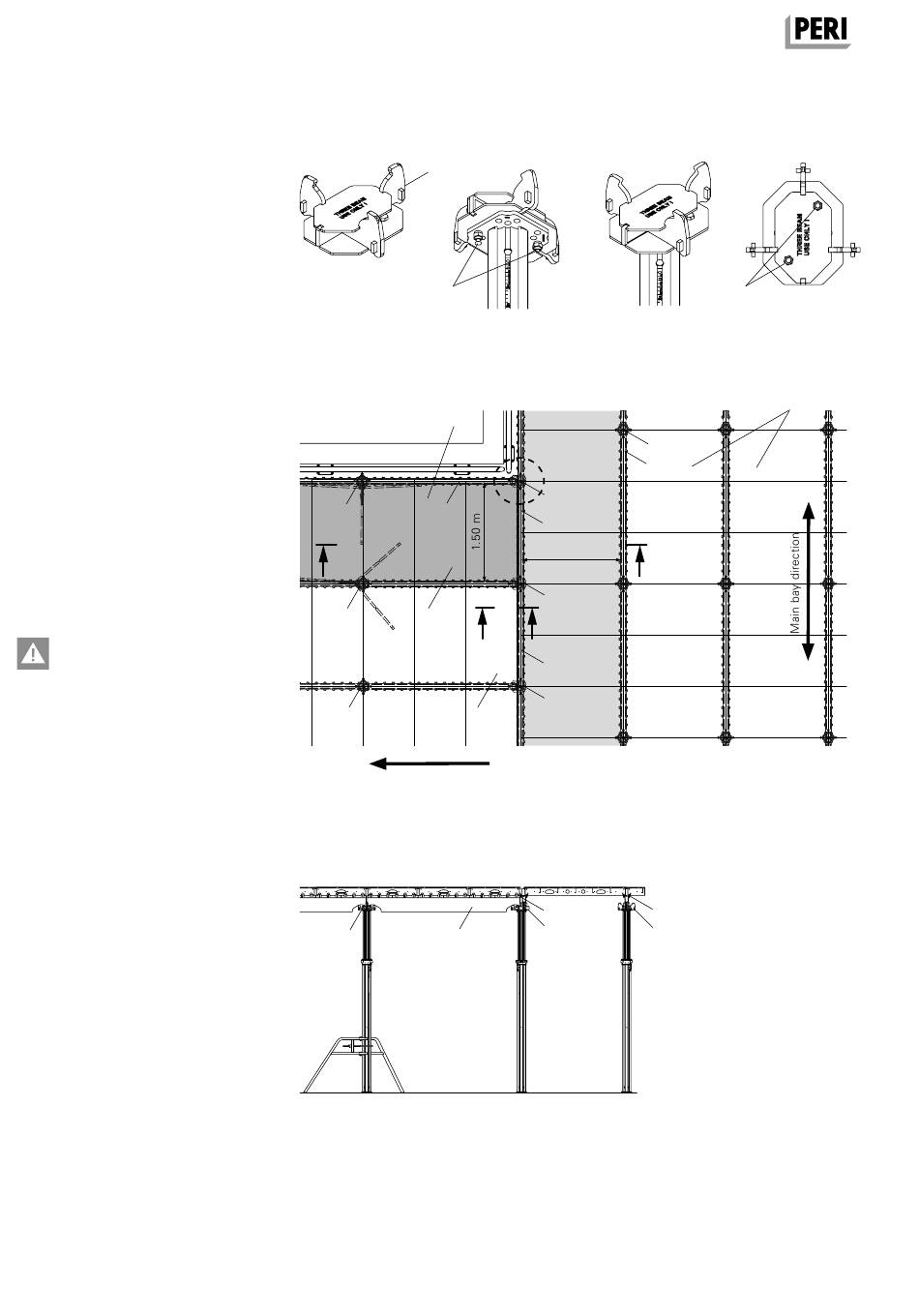

Overview
(Fig. A10.02)
Assembly of main bay direction
Assemble slab formwork in the direc-
tion of the main bay with slab props,
Prophead SSK (6), Main Beam SLT 225
(2) and Panels SDP (3): see Section A4
Shuttering.
56
26
26.1
Fig. A10.01
Starting bay of the trans-
verse bay direction
2
6
A
B
6 3
6 3
Transverse bay direction
Fig. A10.02
Section A-A
2
6
Fig. A10.02a
6
X
2
26
2.5
A
1.50 m
26
B
2.5
26
2.5
2
26 6
