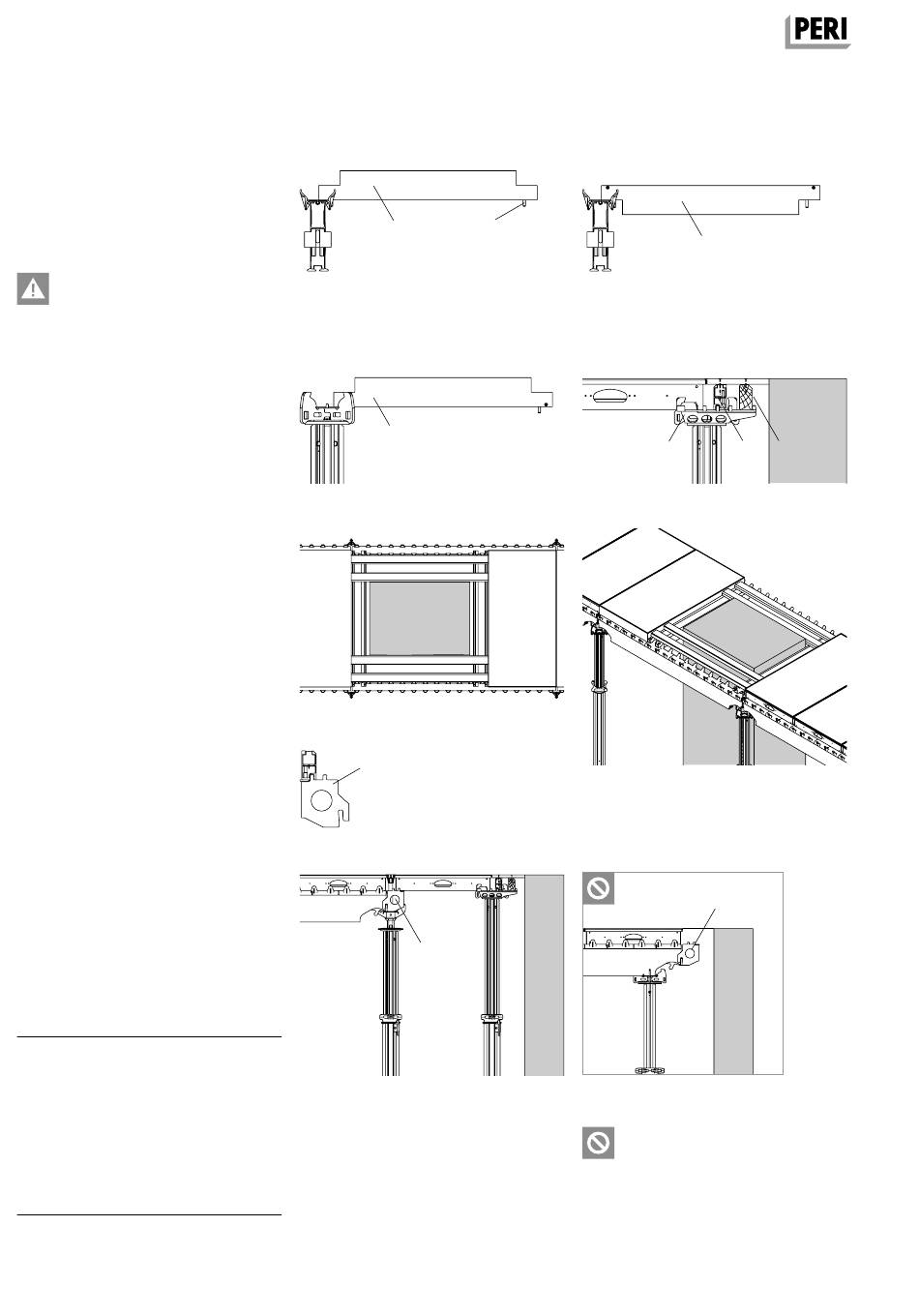

A5 Compensations

System components

For the realization of compensations
and shuttering of columns, a range of
system components is available.
Secure filler plates with nails!
Edge Beam SRT 150-2,
SRT 75
Install vertically (Fig. A5.01) or
suspended. (Fig. A5.02)
The locking pin (9.1/10.1) secures
the Edge Beam SRT 150 (9) or
SRT 75 (10):
– to the Main Beam SLT in a longitudi-
nal direction. (Fig. A5.01 + A5.02)
– to the Prophead SSK in a transverse
direction. (Fig. A5.03)
– to the Combihead SCK (7) in a longi-
tudinal direction. (Fig. A5.04)
– in the End Support SSL (11) in a longi-
tudinal direction. (Fig. A5.07)

Filler Timber SPH

Install Filler Timber SPH (12) vertically or
horizontally.
– to the Combihead SCK. (Fig. A5.04)
– nailed laterally on the panel.
– horizontally, transverse to the sus-
pended Edge Beam SRT. (Fig. A5.05
+ A5.06)

End Support SSL

Use the End Support SSL as height ad-
justment for the transition from a stand-
ard bay to an infill area.
(Fig. A5.07)
The End Support SSL must always be
directly supported by means of a Prop-
head, Drophead or Combihead.
(Fig. A5.08)
Components
2 Main Beam SLT
3 Panel SDP
7 Combihead SCK
9 Edge Beam SRT-2 150
9* Edge Beam SRT-2 150, suspended
10 Edge Beam SRT-2 75
10* Edge Beam SRT-2 75, suspended
11 End Support SSL
12 Filler Timber SPH
24
SRT vertical
9.1/10.1
9/10
Fig. A5.01
9
Fig. A5.03
Fig. A5.05
11
Fig. A5.07
11
Fig. A5.08
SRT suspended*
9*/10*
Fig. A5.02
The asterisk (*) refers to the installation
in a suspended position.
7
Fig. A5.04
Fig. A5.06
End Support SSL
Fig. A5.09
No End Support SSL without any direct
support through Prophead, Drophead or
Combihead.
