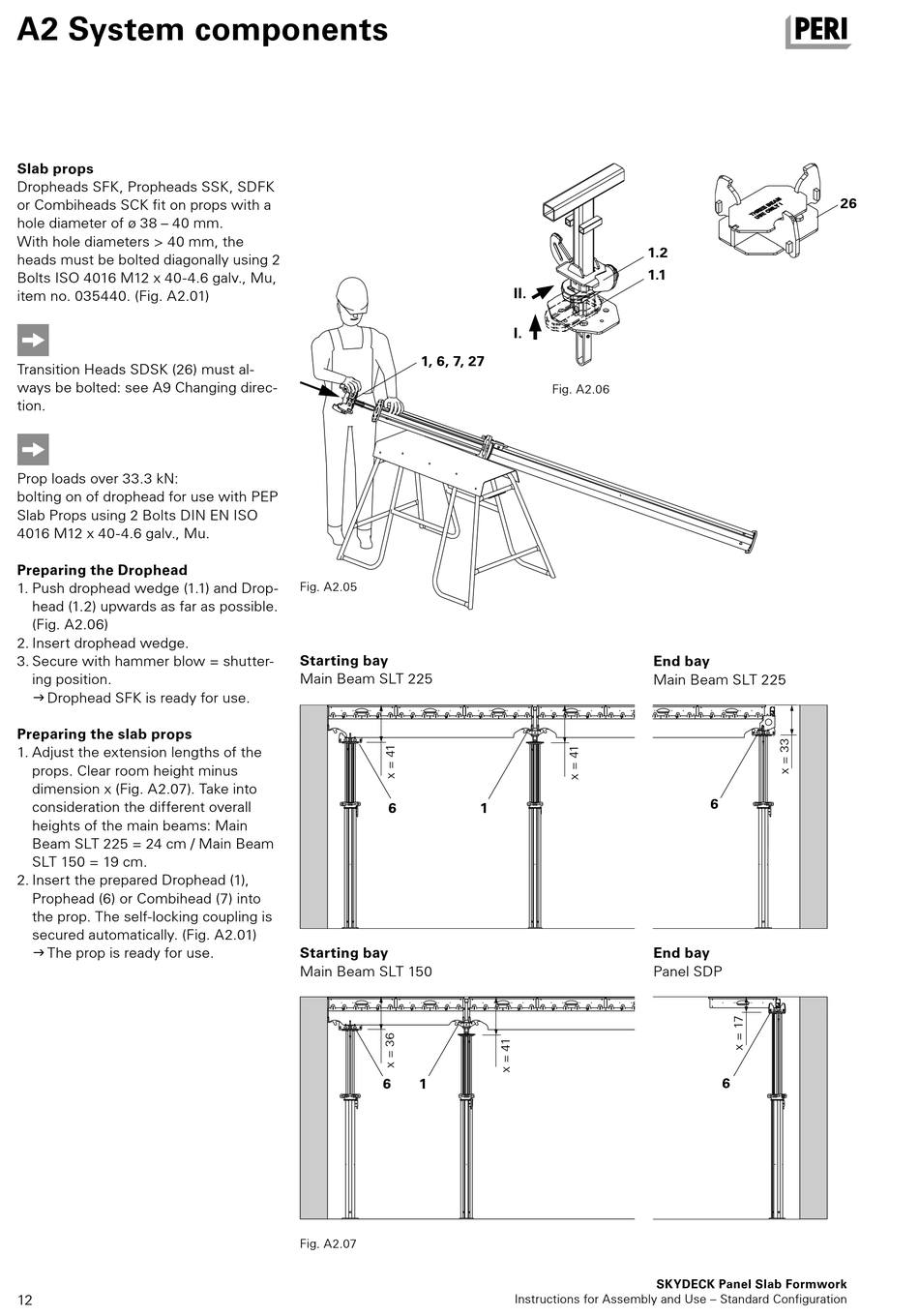

A2 System components
Slab props
Dropheads SFK, Propheads SSK, SDFK
or Combiheads SCK fit on props with a
hole diameter of ø 38 – 40 mm.
With hole diameters > 40 mm, the
heads must be bolted diagonally using 2
Bolts ISO 4016 M12 x 40-4.6 galv., Mu,
item no. 035440. (Fig. A2.01)
Transition Heads SDSK (26) must al-
ways be bolted: see A9 Changing direc-
tion.
Prop loads over 33.3 kN:
bolting on of drophead for use with PEP
Slab Props using 2 Bolts DIN EN ISO
4016 M12 x 40-4.6 galv., Mu.
Preparing the Drophead
1. Push drophead wedge (1.1) and Drop-
head (1.2) upwards as far as possible.
(Fig. A2.06)
2. Insert drophead wedge.
3. Secure with hammer blow = shutter-
ing position.
J Drophead SFK is ready for use. J
Preparing the slab props
1. Adjust the extension lengths of the
props. Clear room height minus
dimension x (Fig. A2.07). Take into
consideration the different overall
heights of the main beams: Main
Beam SLT 225 = 24 cm / Main Beam
SLT 150 = 19 cm.
2. Insert the prepared Drophead (1),
Prophead (6) or Combihead (7) into
the prop. The self-locking coupling is
secured automatically. (Fig. A2.01)
J The prop is ready for use. J
12
1, 6, 7, 27
Fig. A2.05
Starting bay
Main Beam SLT 225
6
Starting bay
Main Beam SLT 150
6 1
Fig. A2.07
1.2
1.1
II.
I.
Fig. A2.06
End bay
Main Beam SLT 225
1
End bay
Panel SDP
Instructions for Assembly and Use – Standard Configuration
6
6
SKYDECK Panel Slab Formwork
26
