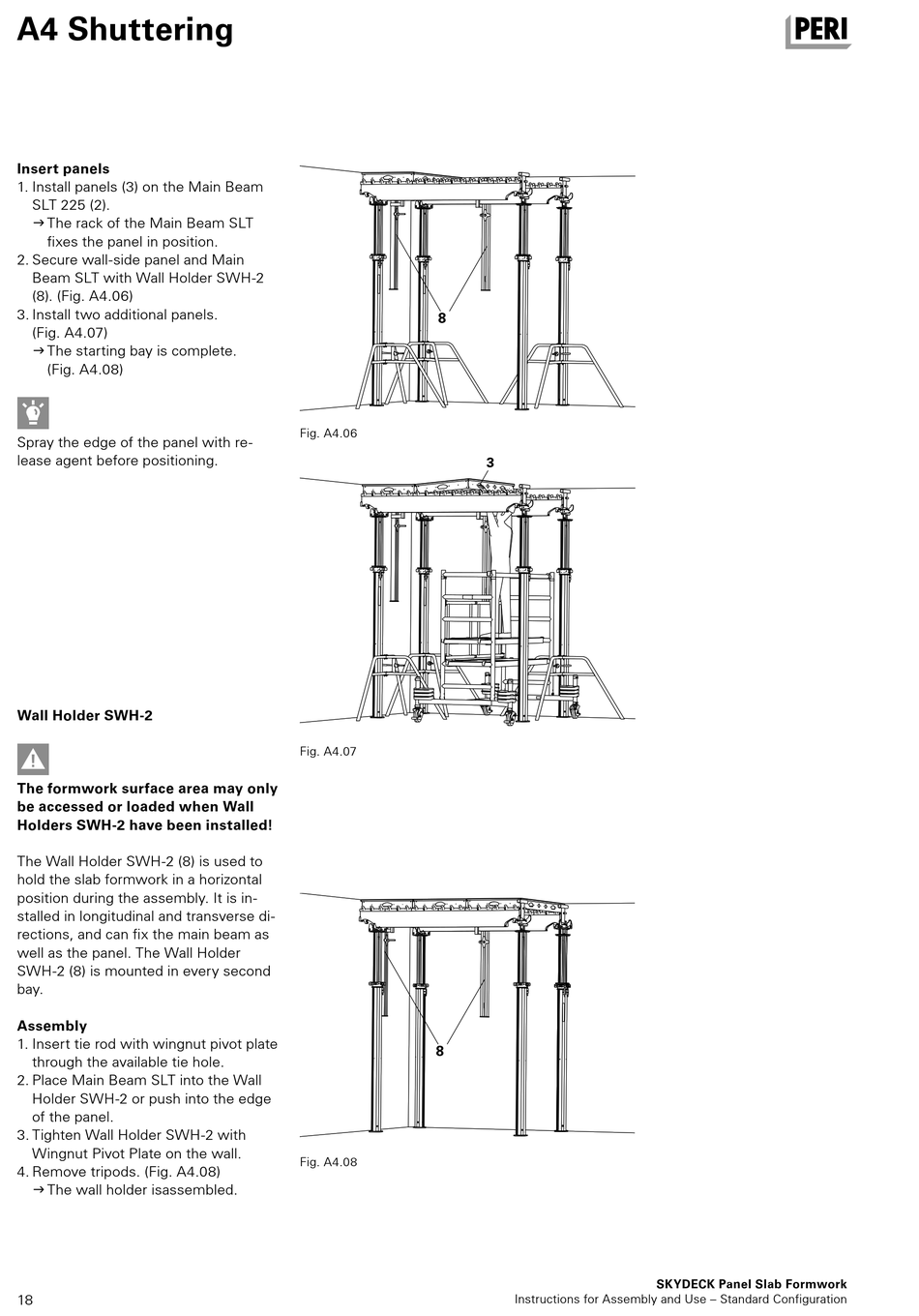

A4 Shuttering
Insert panels
1. Install panels (3) on the Main Beam
SLT 225 (2).
J The rack of the Main Beam SLT J
fixes the panel in position.
2. Secure wall-side panel and Main
Beam SLT with Wall Holder SWH-2
(8). (Fig. A4.06)
3. Install two additional panels.
(Fig. A4.07)
J The starting bay is complete. J
(Fig. A4.08)
Spray the edge of the panel with re-
lease agent before positioning.
Wall Holder SWH-2
The formwork surface area may only
be accessed or loaded when Wall
Holders SWH-2 have been installed!
The Wall Holder SWH-2 (8) is used to
hold the slab formwork in a horizontal
position during the assembly. It is in-
stalled in longitudinal and transverse di-
rections, and can fix the main beam as
well as the panel. The Wall Holder
SWH-2 (8) is mounted in every second
bay.
Assembly
1. Insert tie rod with wingnut pivot plate
through the available tie hole.
2. Place Main Beam SLT into the Wall
Holder SWH-2 or push into the edge
of the panel.
3. Tighten Wall Holder SWH-2 with
Wingnut Pivot Plate on the wall.
4. Remove tripods. (Fig. A4.08)
J The wall holder isassembled. J
18
8
Fig. A4.06
Fig. A4.07
8
Fig. A4.08
3
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
