A8 Cantilevers, Guardrails
Guardrails with Handrail
Unit SD
– SD 75
– SD 150
The SKYDECK Handrail Unit SD secures
site personnel working on a casting seg-
ment against falling in the main field di-
rection.
Risk of falling!
During assembly of the Handrail
Unit, measures must be taken to
prevent falling, e.g. PPE!
Assembly
A free length of at least 35 cm must be
available on the main beam in order to
be able to mount a Handrail Unit SD.
(Fig. A8.04a)
1. Pull lug (25.1) upwards. (Fig. A8.07)
2. Move the Handrail Unit SD (25) firstly
in the direction of the building edge
(l.)and then downwards (ll.)
(Fig. A8.04a)
3. Place Handrail Unit SD with the hooks
(25.2) between the two teeth (2.2)
which are free on the main beam.
J The lug falls downwards. Hooks J
engage and are secured. If the lug
is not completely down, then press
lug (25.1) downwards by stepping
on it. (Fig. A8.05) The Handrail Unit
is installed. (Fig. A8.06)
– Is the lug completely folded down?
– Do the hooks enclose the teeth of the
main beam? (Fig. A8.05)
Dismantling
1. Pull lug (25.1) upwards. (Fig. A8.07)
J Hooks are released. J
2. Lift out Handrail Unit SD (25) and
place in Pallet Handrail Unit SD 150 x
75.
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration

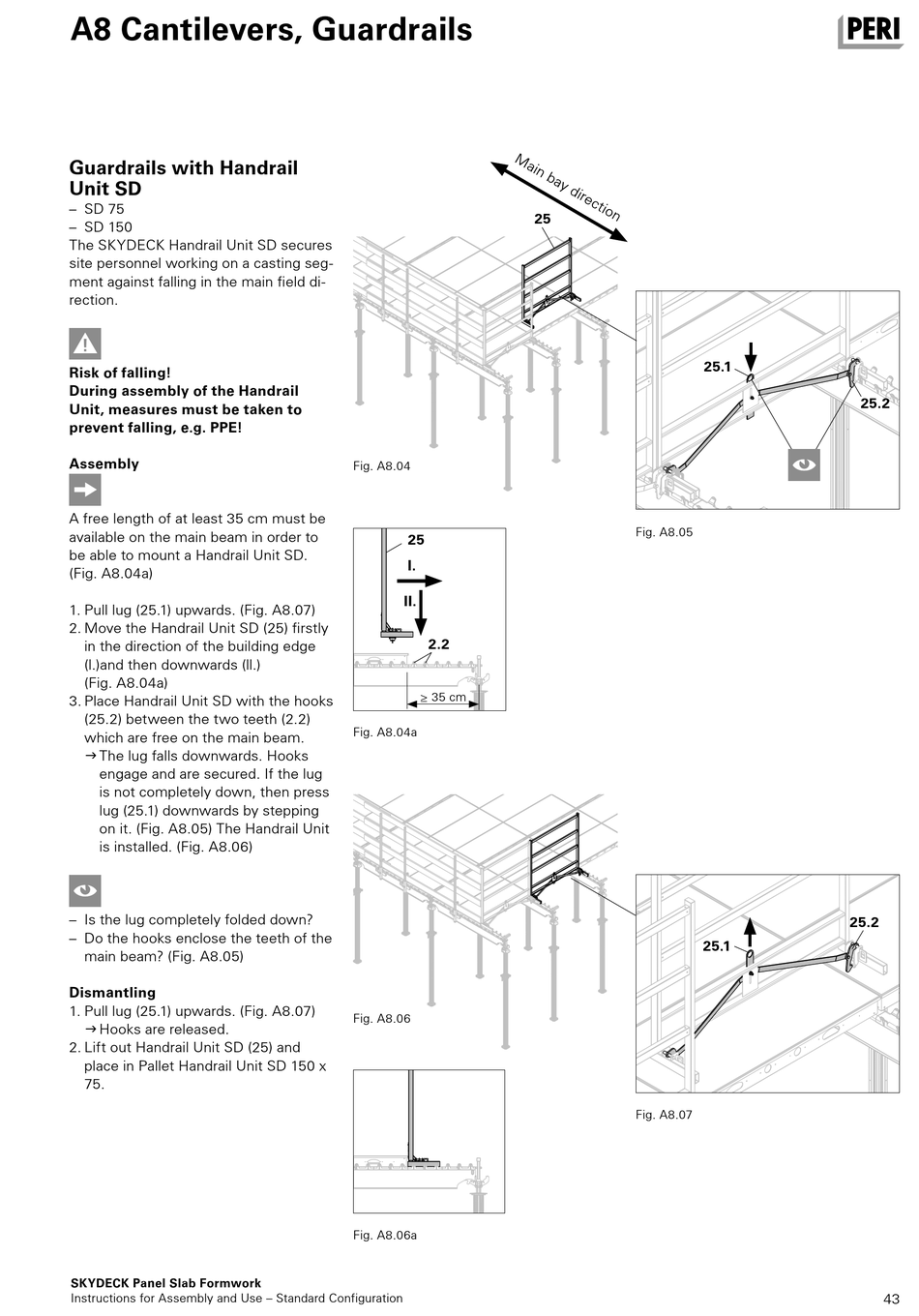

Fig. A8.04
