A9 SKYDECK platforms
Supporting the top main beams
1. Insert Table Connector STV into the
longitudinal grooves of the top main
beams (2.6) which are later posi-
tioned in the building.
2. Fix 2 MULTIPROP Props MP (35)
1.50 m from the cantilevered girder
end using the Table Connector STV
(38).
3. Brace the MULTIPROP Props MP
with MULTIPROP Frame MRK 150
(36).
4. Connect the Frames MRK 150 to the
Frames MRK 225 (36.1) with at least
one scaffold tube L = 2.25 m (31) and

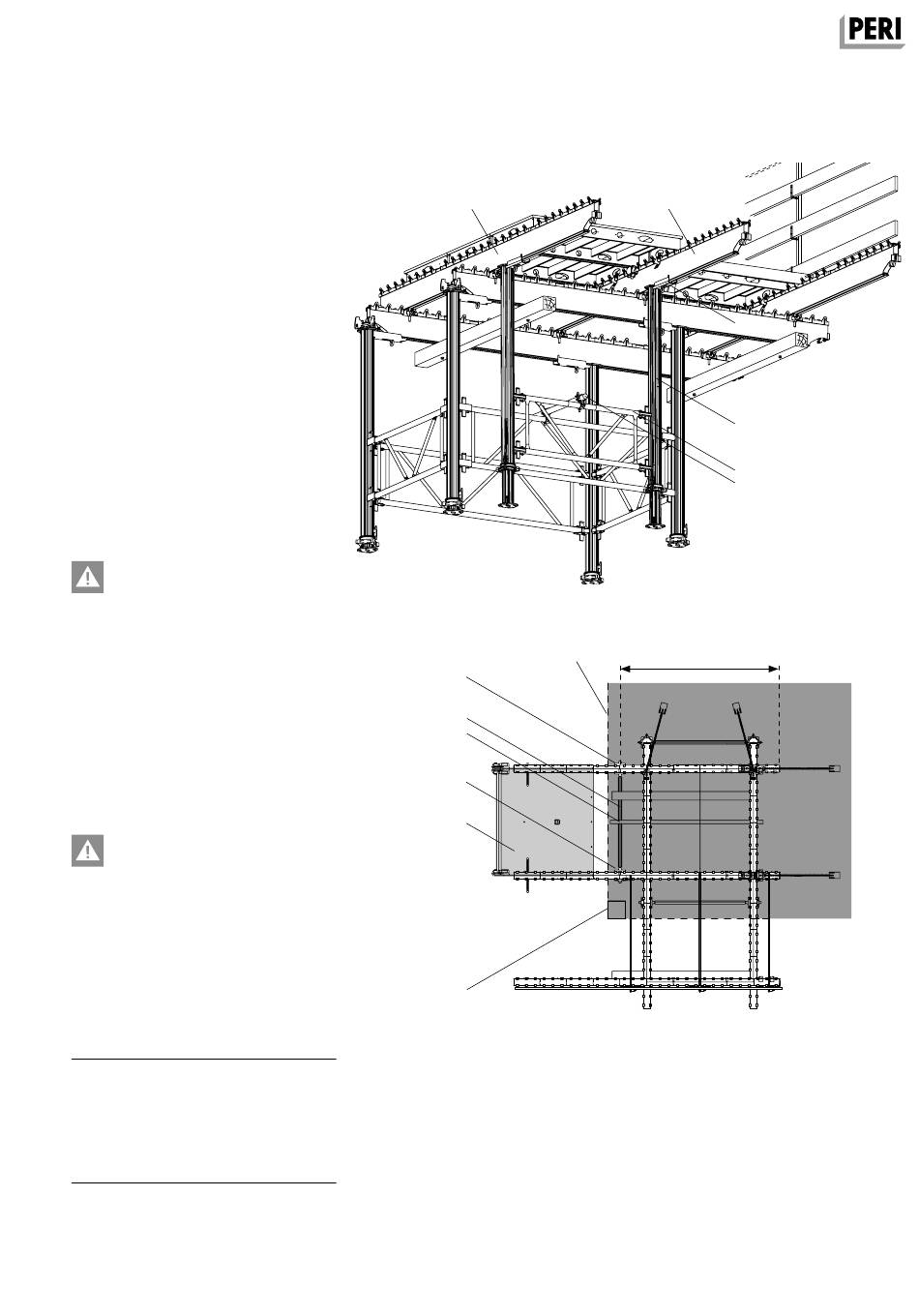

three scaffold couplings. (Fig. A9.06)
5. Mount the inner SKYDECK Platform
SDB (45). (Fig. A9.06a)
6. Insert Panels SDP.
Position corner table
Follow Instructions for Use,
SKYDECK Lifting Fork!
1. Raise the corner table using the
SKYDECK Transportation Fork and
extend the Props MP to the required
length.
2. Position the corner table at the corner
of the building so that the front
MULTIPROP Props MP (35) are as
close as possible to the edge of the
building. (Fig. A9.06a)
Risk of falling!
– Do not erect formwork or step on
corner table before the tension
chains are securely fixed.
– Do not close the filler areas until
the corner table has been securely
fixed and SKYDECK platforms
have been attached.
Components
2.6 Main Beam SLT 375
31 Scaffold Tube
35 MULTIPROP Prop MP
36 MULTIPROP Frame MRK
38 Table Connector STV
45 SKYDECK Platform SDK
SKYDECK Panel Slab Formwork
Instructions for Assembly and Use – Standard Configuration
2.6
Fig. A9.06
Building edge
35
36
31
35
45
Corner column
Fig. A9.06a
2.6
38
35
36
31
2,25 m
Kantholz
49
