Reminder Bar

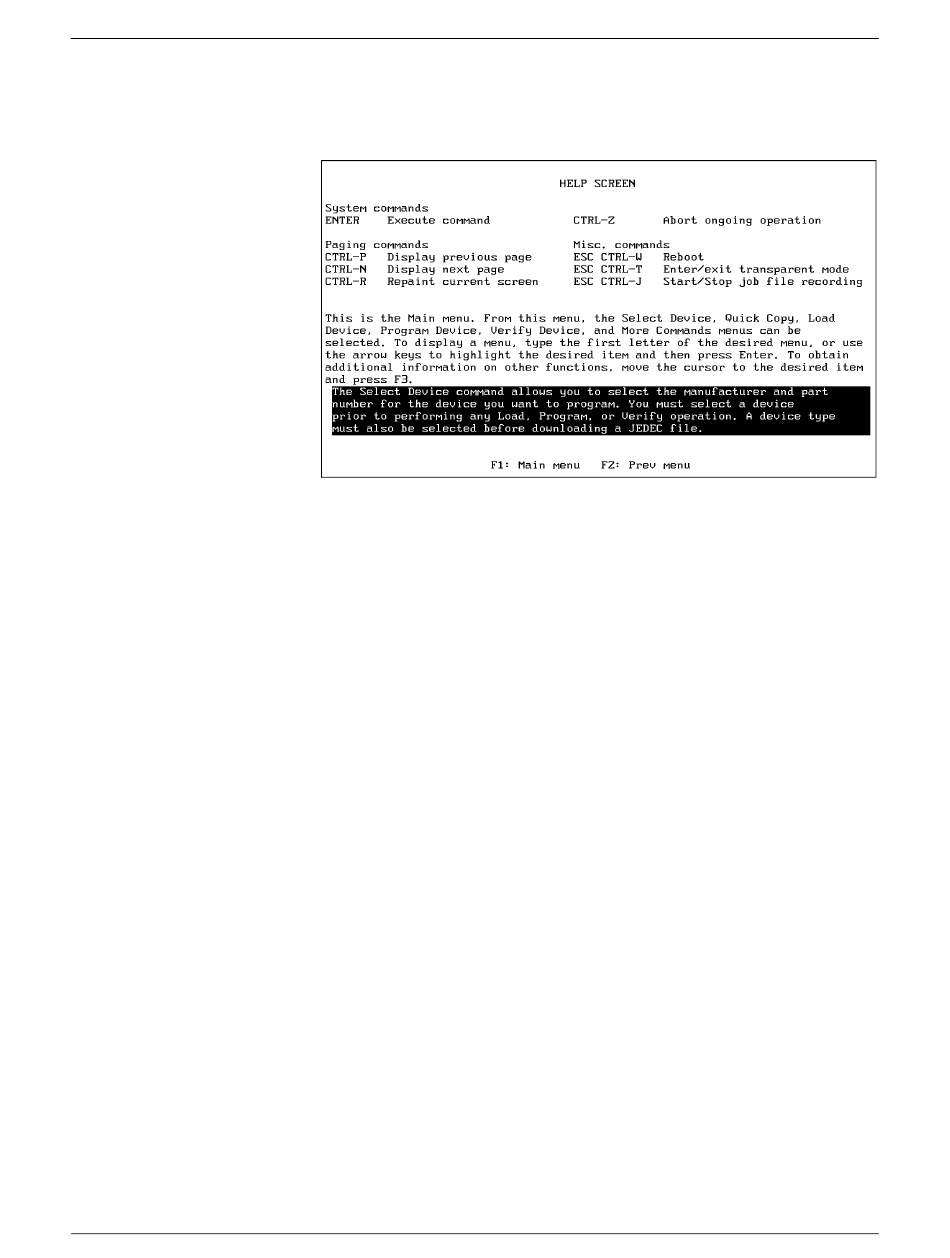

Figure 3-38
Areas of the Help Screen
Accessing Online Help for
System Messages
Accessing Device-Specific
Online Information
Exiting Help
UniSite-xpi User Manual
Displayed on the bottom line of the screen, the reminder bar shows which
function keys you can use to exit Help.
Online help is available for non-fatal system messages, which result from
situations that do not interrupt UniSite-xpi's operation. Fatal messages,
which result from situations that do interrupt UniSite-xpi's operation, are
listed and described in Chapter 7, "Messages."
Non-fatal error messages are generally displayed in the message bar. To
access the online help for the message, press F3 or ?. UniSite-xpi displays
the online help for the message. Exit the message help screen as you
would any help screen.
After selecting a device, you will see the following message in the
message bar if there is online device-specific information for the selected
device.
Hit F3 or ? to view device specific message.
Press F3 or ? to display the device-specific information. If there is more
than one screen of device-specific information, press C
the next screen of information. Exit the screen as you would any help
screen.
To exit any Help screen, press either F1 or F2. F1 returns you to the Main
Menu and F2 displays the previous screen from which the Help function
was invoked.
3. Getting Started
+ N to view
TRL
3-25
