6. Translation Formats

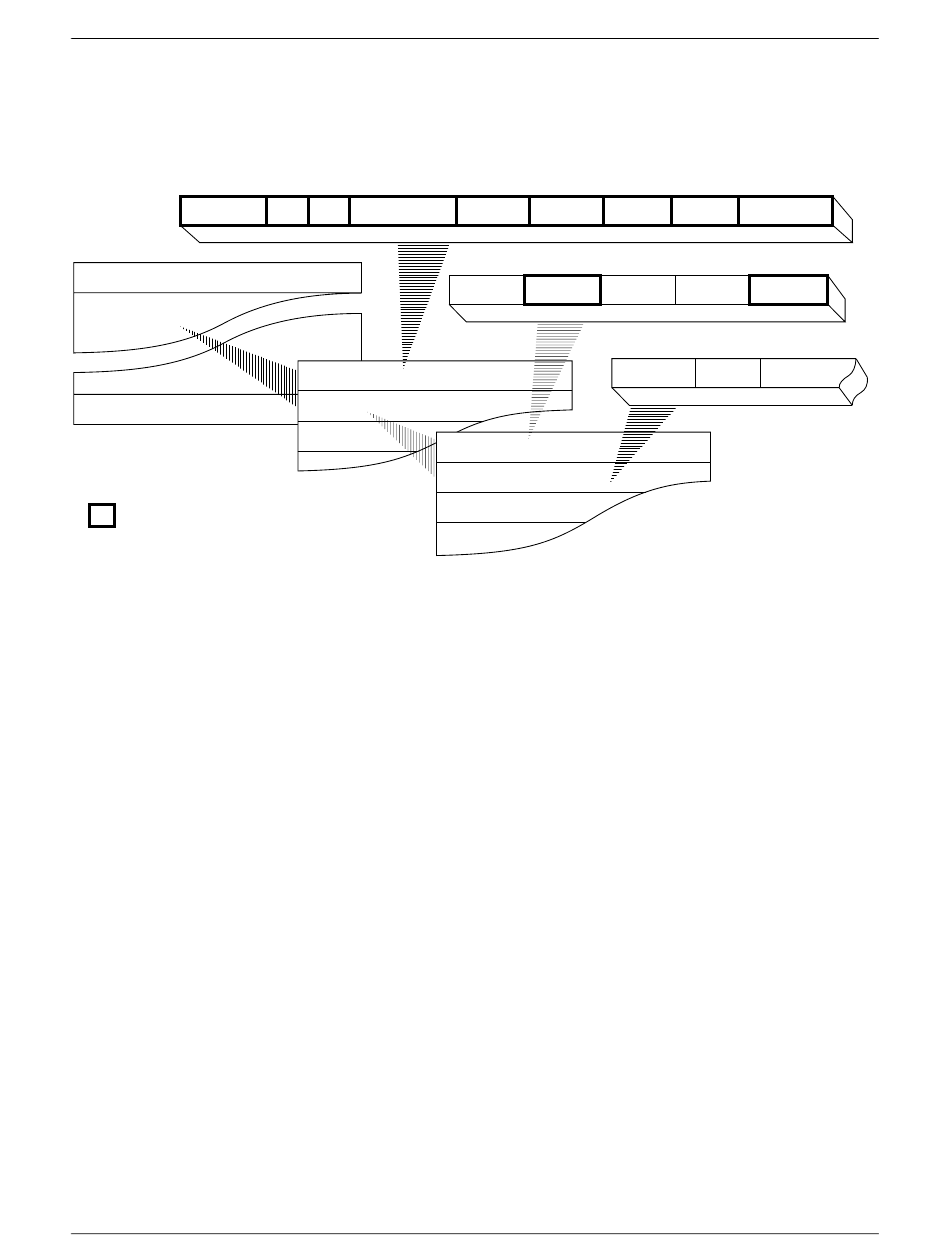

Figure 6-24
A Close-up of the Intel OMF286 Format
4 bytes
Total Space
File Header (A2 or 06 and 02)
Data File Module
Checksum 1 byte
Bold boxes indicate that the
X
information inside is not used
by the programmer, however, some
characters must occupy those spaces.
6-54
INTEL OMF286 FORMAT, CODE 98
8 bytes 8 bytes 41 bytes
Date Time Module Creator
Data File Header 75 bytes
Partition
Partition
Table of Contents
Section
Section
Section
2 bytes 4 bytes 4 bytes
GDT Limit GDT Base IDT Limit IDT Base
Data File Header
4 bytes 4 bytes 4 bytes
Last
ABSTXT
DEBTXT
Location
Location Location
Table of Contents
3 bytes
Real Address
20 bytes
4 bytes 2 bytes
TSS Selector
4 bytes 4 bytes
Next
Reserved
Partition
2 bytes
Length Text
Section
