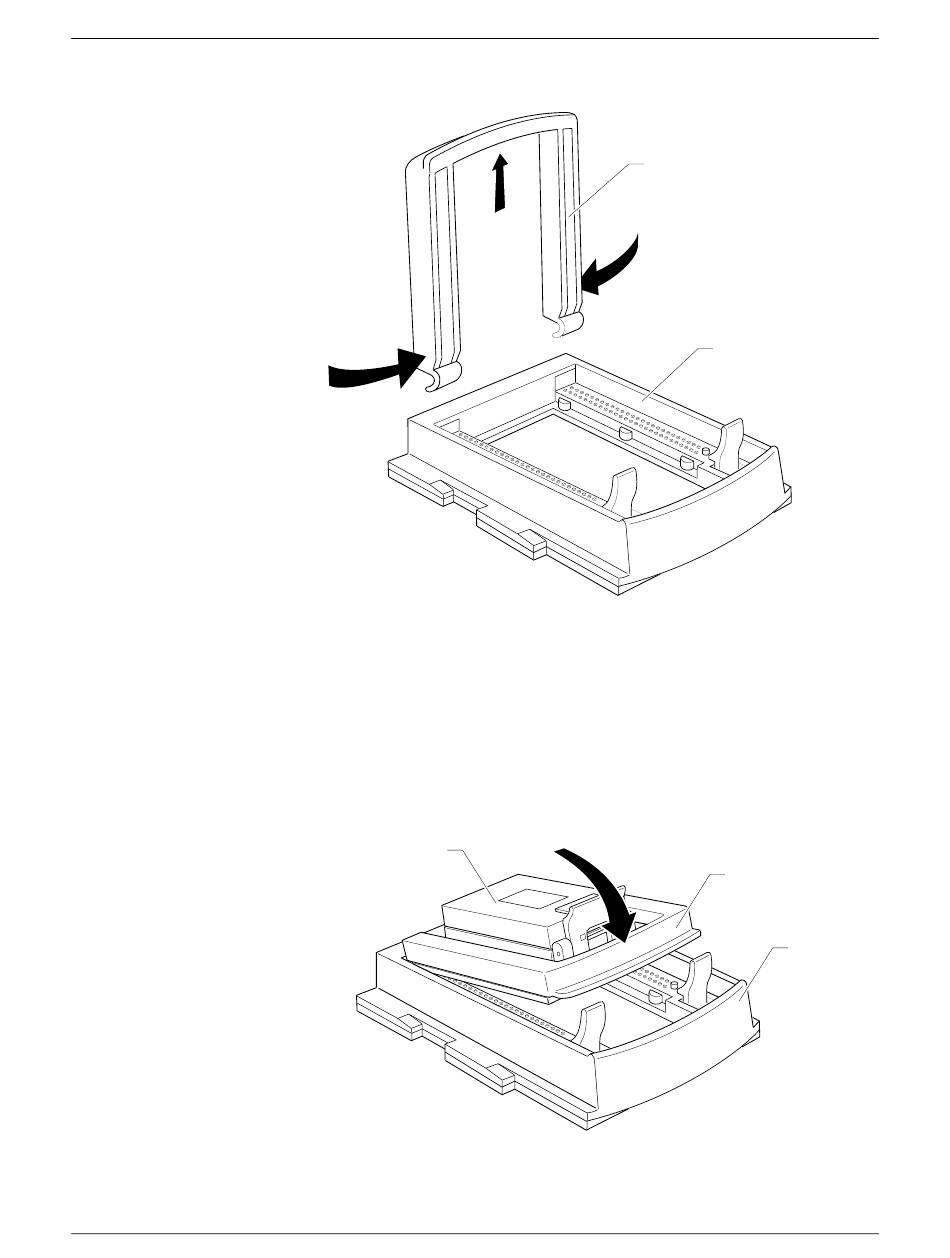

Figure A-16
Removing the Door from PPI Base
Figure A-17
Aligning a High Profile Adapter
UniSite-xpi User Manual
2. Place the door over the adapter as shown in Figure A-17.
3. As a unit, guide the door hooks into the PPI Base and lower the
adapter and door together onto the base.
4. Move the adapter from side to side until it rests on the base.
5. Make sure the holes on the adapter line up with the the raised plastic
pins on the base.
6. Close the door.
ADAPTER
A. Using Modules
BASE DOOR
PPI BASE
DOOR
BASE
1325-1
1326-1
A-17
