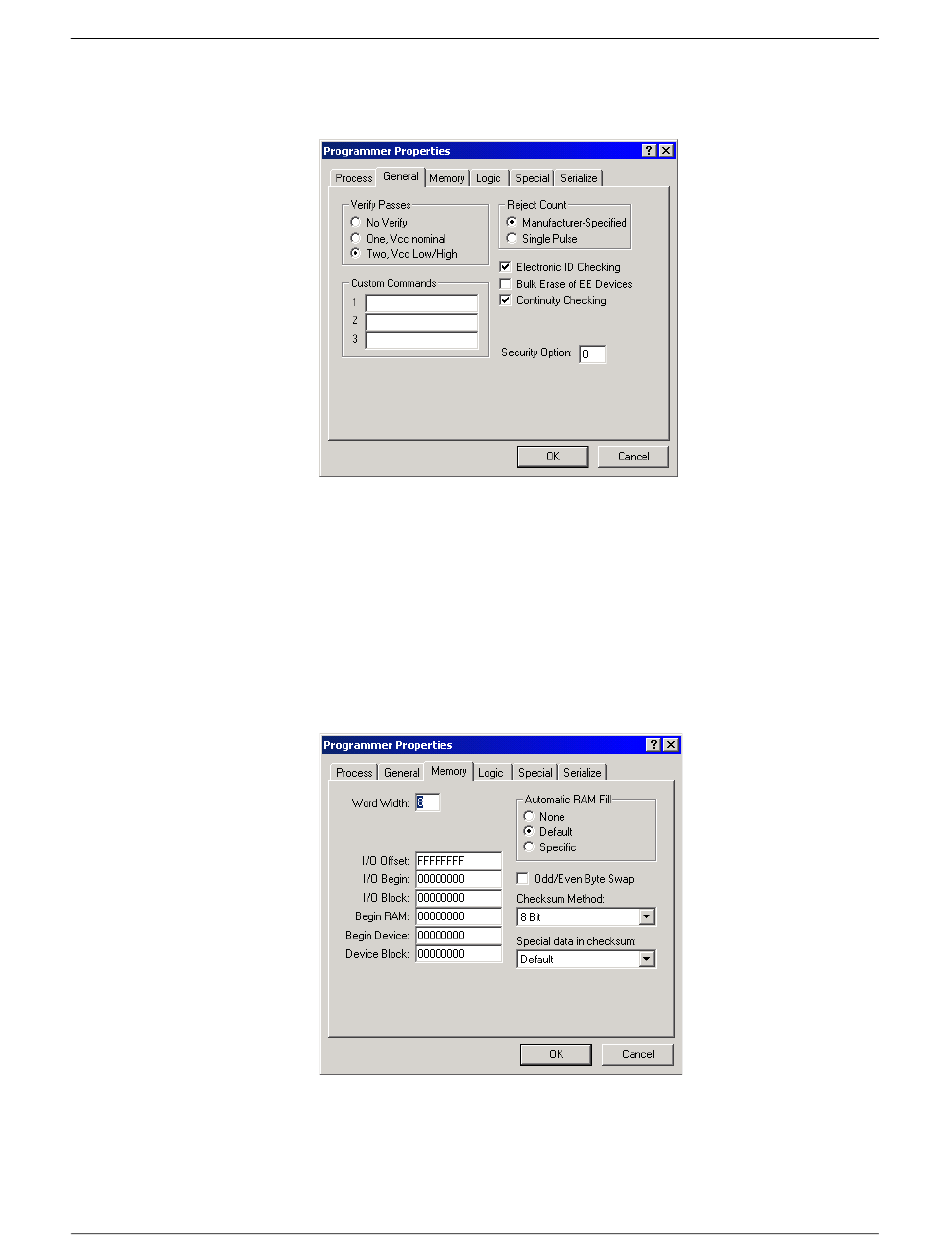

Figure 3-8 General Tab; Figure 3-9 Memory Tab - Data I/O UniSite-xpi User Manual

Figure 3-8
General Tab
Figure 3-9
Memory Tab
UniSite-xpi User Manual
Click OK.
Next, select the Memory tab. Enter the parameters to specify how and
where the data is loaded in programmer RAM. For more detailed
information about each parameter, see TaskLink context-sensitive Help.
To ensure consistent checksum, you can preload all address locations into
RAM with a known hexadecimal value (many data files do not contain
data for every memory address). For more information, see TaskLink
online Help
Click OK.
3. Getting Started
3-7
