A. Using Modules
Installing Devices
into a PPI Adapter

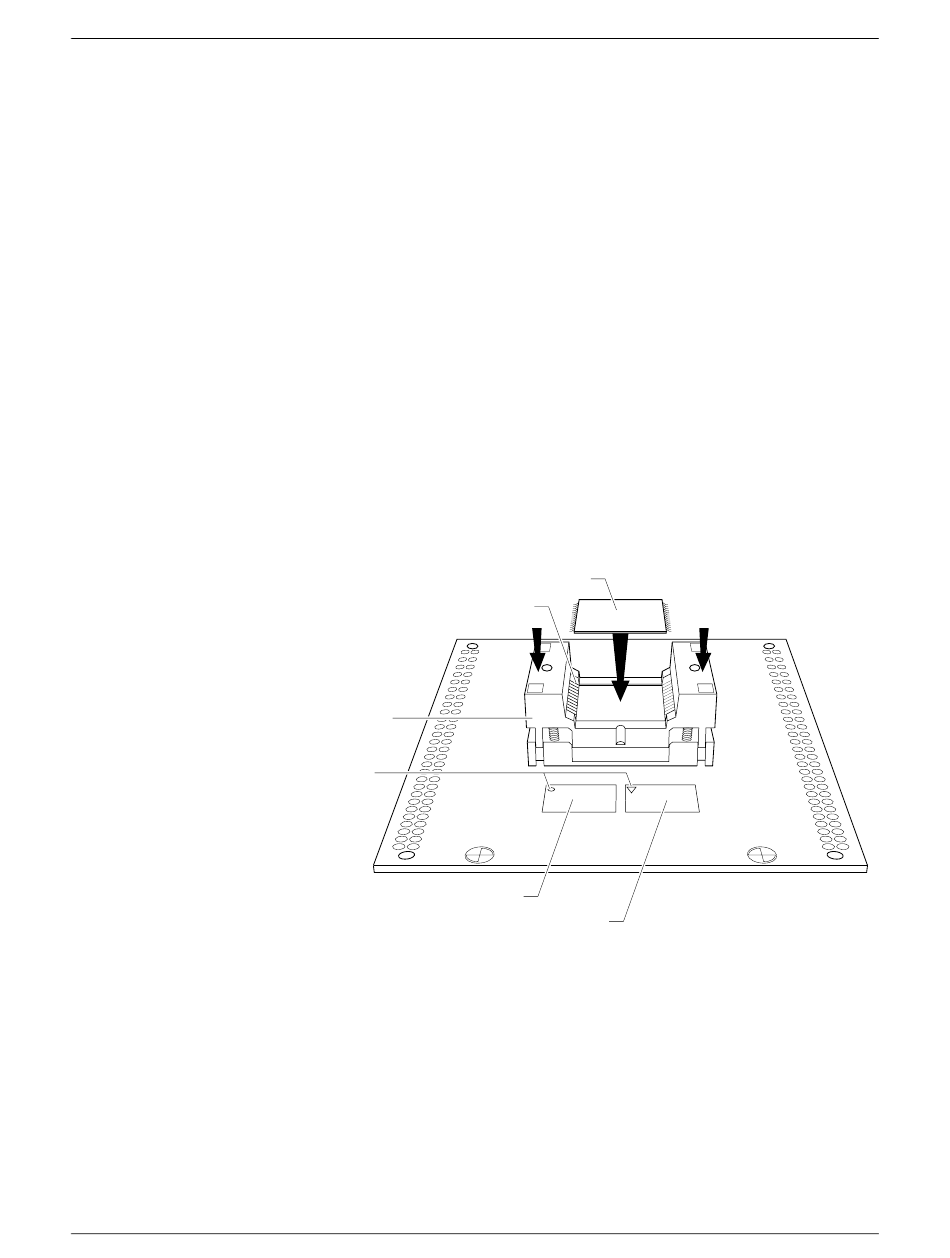

TSOP Device Orientation
Figure A-18
TSOP Device Orientation
A-18
The PPI system consists of one base for each programmer, and
exchangeable adapters. These PPI adapters accept a variety of device
package types and pin configurations. The following figures show three
common device packages and the proper device orientation in the
adapter. Each adapter has an ICON showing the proper device
orientation.
There are two different pinouts for the TSOP device as shown in Figure
A-18. The standard pinout, shown by the standard pinout ICON on the
left in Figure A-18, shows Pin 1 indicated by a circle in the upper-left
corner of the device. The reverse pinout, shown by the reverse pinout
ICON on the right in Figure A-18, shows Pin 1 indicated by a triangle in
the upper-left corner of the device.
1. Press down on the outer edges of the socket.
2. Drop the TSOP device into the socket while still holding the socket
edges down.
3. Release the socket edges. The device should be secured.
To remove the device, press down on the socket edges and lift the device
out.
PIN 1 OF SOCKET
TSOP
SOCKET
PIN 1
STANDARD PINOUT ICON
REVERSE PINOUT ICON
DEVICE
