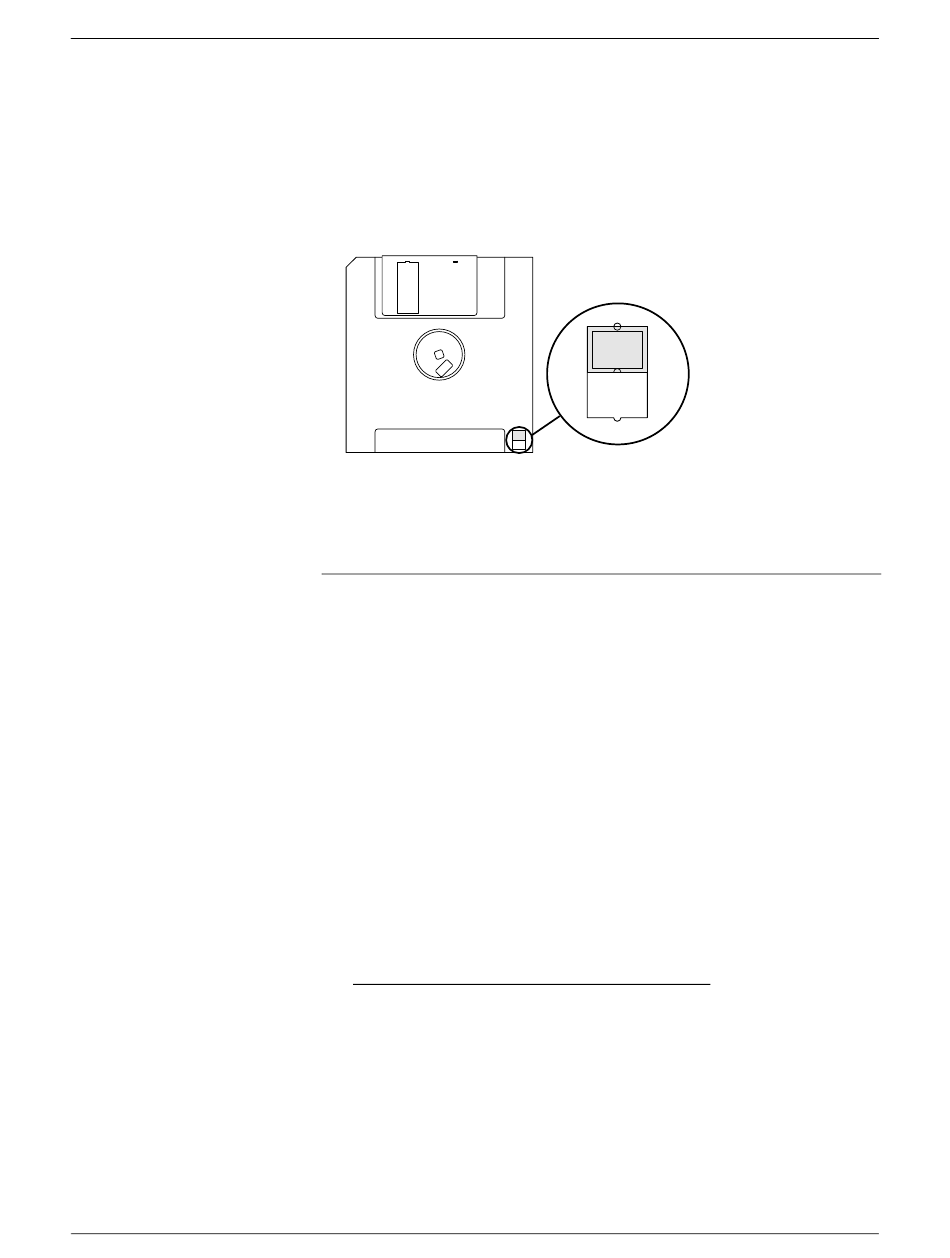

Figure 2-9 Write-Enabled Disk - Data I/O UniSite-xpi User Manual

Figure 2-9
Write-enabled Disk
Software Version
Compatibility
UniSite-xpi User Manual
2. Make sure both the Boot Files disk and the Algorithm disks are write
enabled. See Figure 2-9.
BACK OF DISK
3. Insert the Boot Files disk into drive A.
4. Insert an Algorithm disk into drive B (the drive on the right). For
more information, see "Insert Algorithm Disk" on page 2-24.
Note: Once you get the programmer set up, make a backup copy of the Boot Files
disk and the Algorithm disk(s).
While the UniSite-xpi Boot Files disk and Algorithm disks that are
shipped with the system have the same version number, the version
numbers of the disks do not have to be identical for the disks to work
together. UniSite-xpi checks the version numbers of the disks and informs
you if they are not compatible with each other.
A Boot Files disk and the Algorithm disks are compatible if they meet the
following rules:
• All digits to the left of the decimal point are the same.
• The first digit to the right of the decimal point is the same. (Any
additional digits, if present, do not have to match.)
For example:
System Algorithm
Version Version
6.50
6.51
6.50
6.50
This version control system allows the Algorithm disks to be updated
without requiring a new Boot Files disk.
WRITE ENABLED
POSITION
Compatible?
6.50 Yes
6.50 Yes
6.51 Yes
6.40 No
2. Setup and Installation
1374-3
2-25
