2
PANEL DESCRIPTION

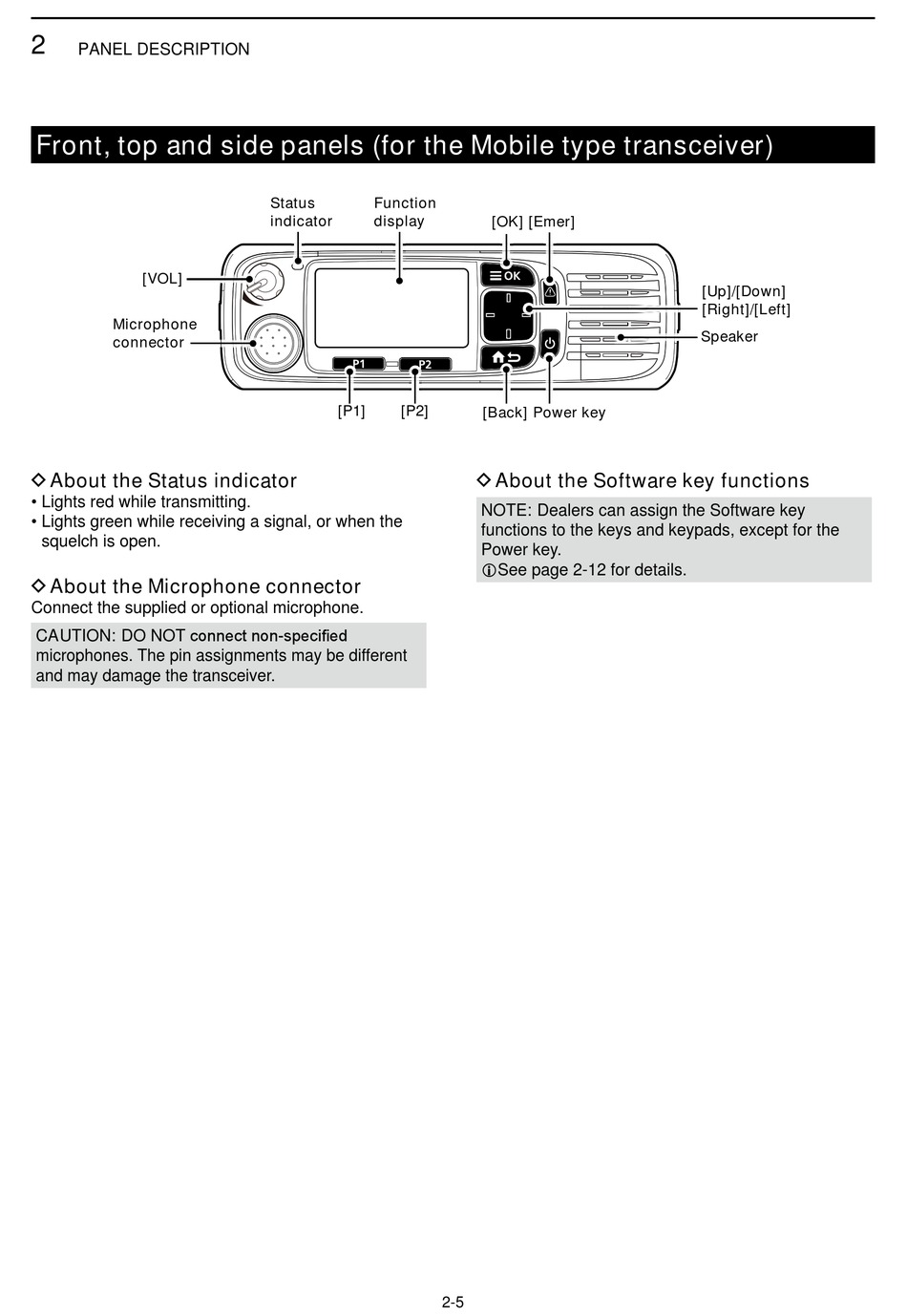

Front, top and side panels (for the Mobile type transceiver)

[VOL]
Microphone
connector

D About the Status indicator

• Lights red while transmitting.
• Lights green while receiving a signal, or when the
squelch is open.

D About the Microphone connector

Connect the supplied or optional microphone.
CAUTION: DO NOT connect non-specifi ed
microphones. The pin assignments may be different
and may damage the transceiver.
Status Function
indicator display display
[P1] [P2]
[OK] [Emer] [Emer]
[Back] Power key

D About the Software key functions

NOTE: Dealers can assign the Software key
functions to the keys and keypads, except for the
Power key.
LSee page 2-12 for details.
2-5
[Up]/[Down]
[Right]/[Left]
Speaker
