PANEL DESCRIPTION

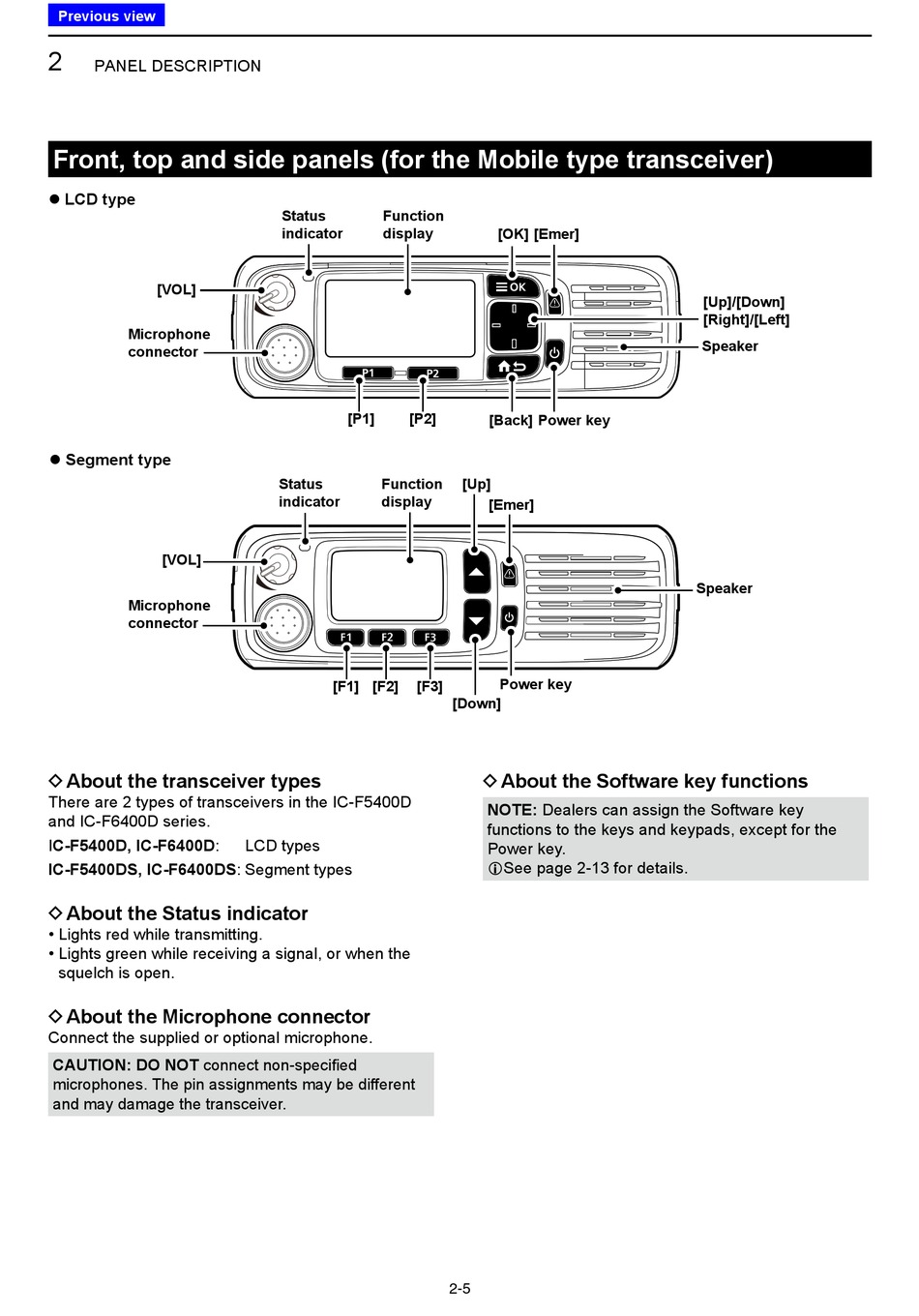

Front, top and side panels (for the Mobile type transceiver)

z LCD type
[VOL]
Microphone
connector
z Segment type
[VOL]
Microphone
connector

D About the transceiver types

There are 2 types of transceivers in the IC-F5400D
and IC-F6400D series.
IC-F5400D, IC-F6400D:
IC-F5400DS, IC-F6400DS: Segment types

D About the Status indicator

• Lights red while transmitting.
• Lights green while receiving a signal, or when the
squelch is open.

D About the Microphone connector

Connect the supplied or optional microphone.
CAUTION: DO NOT connect non-specified
microphones. The pin assignments may be different
and may damage the transceiver.
Status Function
indicator display
[P1] [P2]
Status Function
indicator display
F1 F2
[F1] [F2] [F3]
LCD types
[OK] [Emer]
[Back] Power key
[Up]
[Emer]
F3
Power key
[Down]

D About the Software key functions

NOTE: Dealers can assign the Software key
functions to the keys and keypads, except for the
Power key.
LSee page 2-13 for details.
2-5
[Up]/[Down]
[Right]/[Left]
Speaker
Speaker
