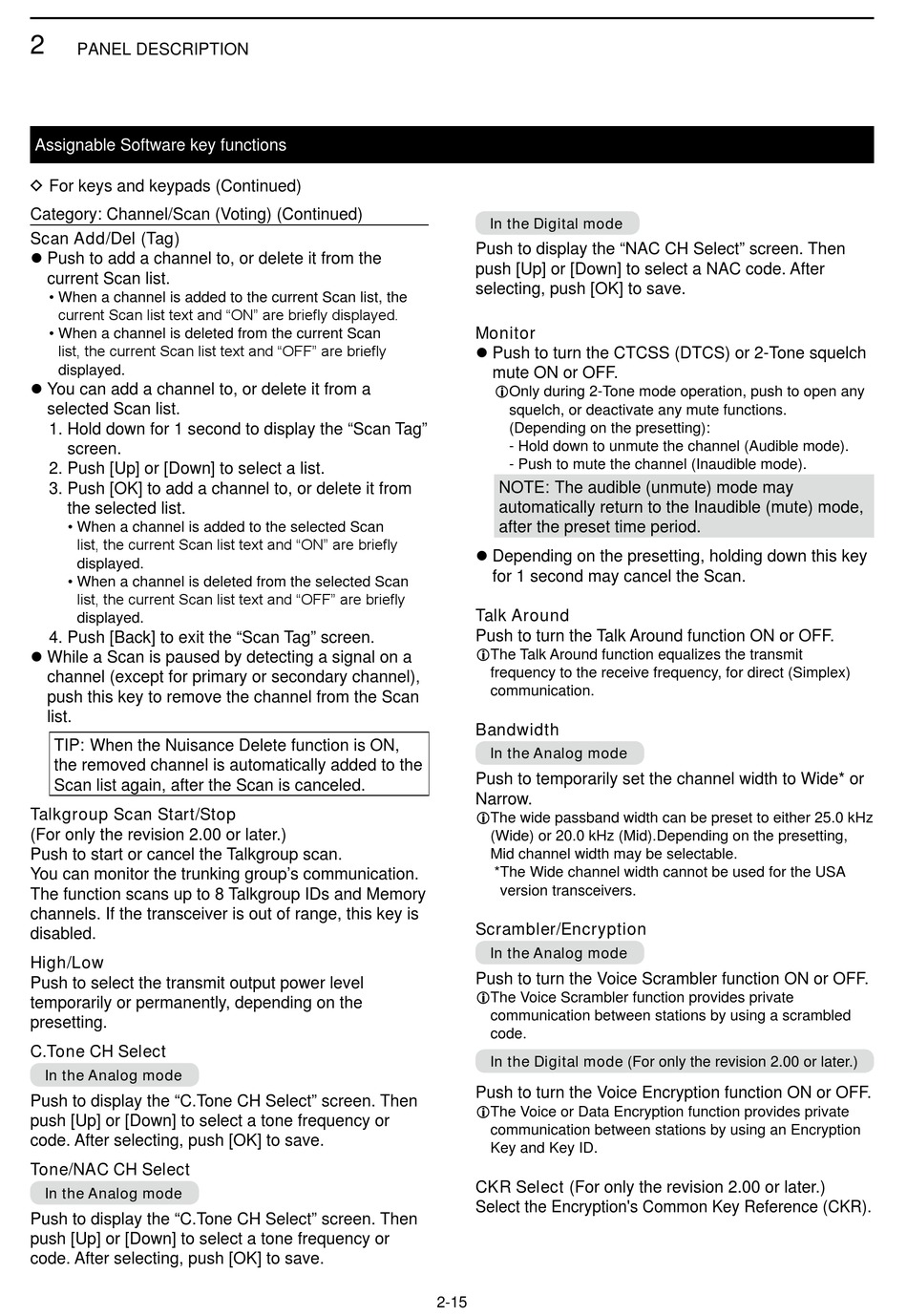

Icom IC-F7010 Series Operating Manual page 23

2
PANEL DESCRIPTION
Assignable Software key functions
D For keys and keypads (Continued)
Category: Channel/Scan (Voting) (Continued)
Scan Add/Del (Tag)
z Push to add a channel to, or delete it from the
current Scan list.
• When a channel is added to the current Scan list, the
current Scan list text and "ON" are briefly displayed.
• When a channel is deleted from the current Scan
list, the current Scan list text and "OFF" are briefly
displayed.
z You can add a channel to, or delete it from a
selected Scan list.
1. Hold down for 1 second to display the "Scan Tag"
screen.
2. Push [Up] or [Down] to select a list.
3. Push [OK] to add a channel to, or delete it from
the selected list.
• When a channel is added to the selected Scan
list, the current Scan list text and "ON" are briefly
displayed.
• When a channel is deleted from the selected Scan
list, the current Scan list text and "OFF" are briefly
displayed.
4. Push [Back] to exit the "Scan Tag" screen.
z While a Scan is paused by detecting a signal on a
channel (except for primary or secondary channel),
push this key to remove the channel from the Scan
list.
TIP: When the Nuisance Delete function is ON,
the removed channel is automatically added to the
Scan list again, after the Scan is canceled.
Talkgroup Scan Start/Stop
(For only the revision 2.00 or later.)
Push to start or cancel the Talkgroup scan.
You can monitor the trunking group's communication.
The function scans up to 8 Talkgroup IDs and Memory
channels. If the transceiver is out of range, this key is
disabled.
High/Low
Push to select the transmit output power level
temporarily or permanently, depending on the
presetting.
C.Tone CH Select
In the Analog mode
Push to display the "C.Tone CH Select" screen. Then
push [Up] or [Down] to select a tone frequency or
code. After selecting, push [OK] to save.
Tone/NAC CH Select
In the Analog mode
Push to display the "C.Tone CH Select" screen. Then
push [Up] or [Down] to select a tone frequency or
code. After selecting, push [OK] to save.
In the Digital mode
Push to display the "NAC CH Select" screen. Then
push [Up] or [Down] to select a NAC code. After
selecting, push [OK] to save.
Monitor
z Push to turn the CTCSS (DTCS) or 2-Tone squelch
mute ON or OFF.
L Only during 2-Tone mode operation, push to open any
squelch, or deactivate any mute functions.
(Depending on the presetting):
- Hold down to unmute the channel (Audible mode).
- Push to mute the channel (Inaudible mode).
NOTE: The audible (unmute) mode may
automatically return to the Inaudible (mute) mode,
after the preset time period.
z Depending on the presetting, holding down this key
for 1 second may cancel the Scan.
Talk Around
Push to turn the Talk Around function ON or OFF.
L The Talk Around function equalizes the transmit
frequency to the receive frequency, for direct (Simplex)
communication.
Bandwidth
In the Analog mode
Push to temporarily set the channel width to Wide* or
Narrow.
L The wide passband width can be preset to either 25.0 kHz
(Wide) or 20.0 kHz (Mid).Depending on the presetting,
Mid channel width may be selectable.
* The Wide channel width cannot be used for the USA
version transceivers.
Scrambler/Encryption
In the Analog mode
Push to turn the Voice Scrambler function ON or OFF.
L The Voice Scrambler function provides private
communication between stations by using a scrambled
code.
In the Digital mode (For only the revision 2.00 or later.)
Push to turn the Voice Encryption function ON or OFF.
L The Voice or Data Encryption function provides private
communication between stations by using an Encryption
Key and Key ID.
CKR Select (For only the revision 2.00 or later.)
Select the Encryption's Common Key Reference (CKR).
2-15
